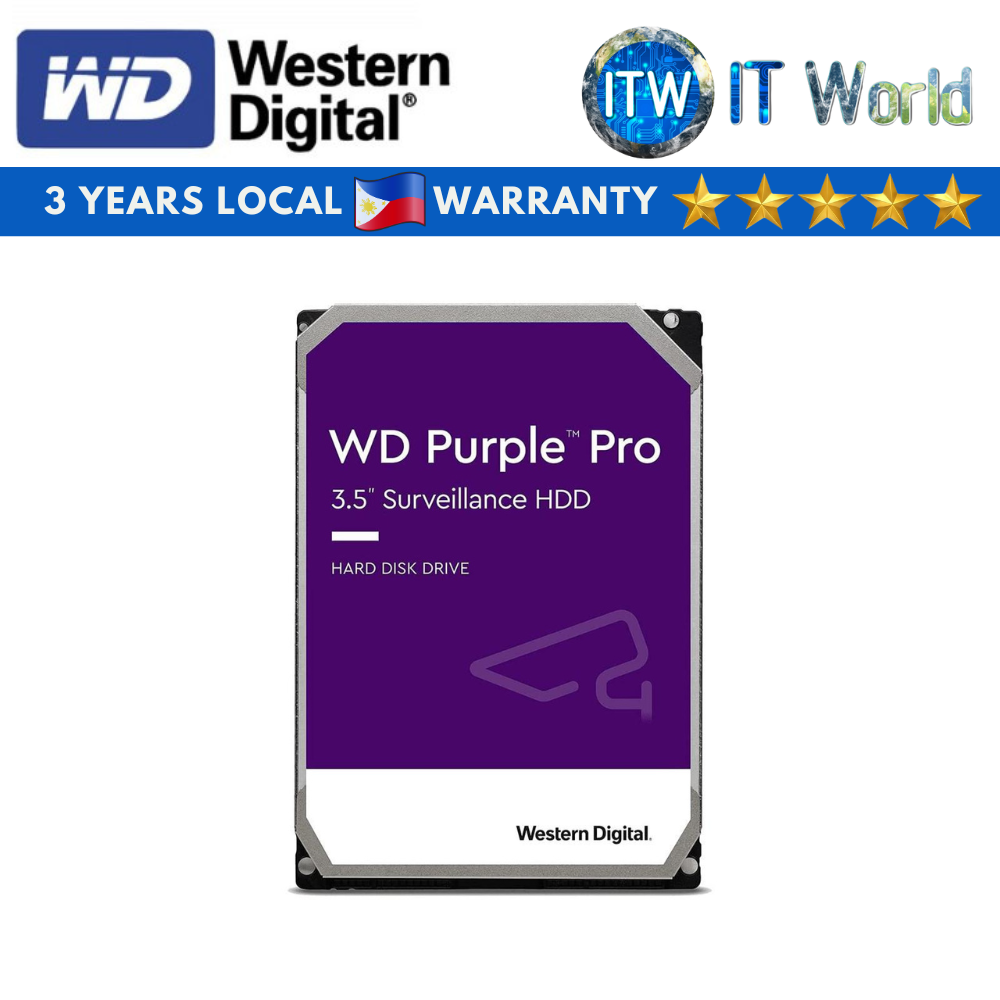

Product Name: ITW | Western Digital Purple Pro 10TB 3.5" 256MB 7200RPM Smart Video Internal HDD (WD101PURP)
Highlights
■ The WD Purple™ Pro HDD, with OptiNAND™ technology in 22TB, delivers massive capacity in a drive engineered for advanced, AI-enabled, always-on smart video recorders, appliances, and servers.
■ Western Digital’s exclusive AllFrame™ AI technology improves ATA streaming to help reduce frame loss and improve overall video playback.
■ WD Purple™ Pro drives are optimized to handle up to 64 single-stream HD cameras as well as many of the latest smart cameras that transmit multiple streams.
■ With a workload rating up to 550TB/year, these drives are built to keep up with heavy video data capture and analysis.
■ The reliable WD Purple™ Pro is engineered with an MTBF of up to 2.5 million hours for advanced smart video solutions that operatein 24/7 environments.
■ Western Digital Device Analytics™ provides a wealth of storage device parametric operational and diagnostic data to compatible systems.
Specification
✎ Model Number: WD101PURP
✎ Formatted capacity: 10TB
✎ Form factor: 3.5-inch
✎ Advanced Format (AF): Yes
✎ Recording technology: CMR
✎ RoHS compliant: Yes
Product Features
✎ Cameras supported: Up to 64 HD
✎ AI streams: 32
✎ Firmware feature name: AllFrame AI
✎ Tarnish resistant components: Yes
Performance
✎ Interface transfer rate (max)
■ Buffer to host: 6 Gb/s
■ Host to/from drive (sustained): 265 MB/s
✎ Cache (MB): 256
✎ RPM: 7200
Reliability/Data Entigrity
✎ Load/unload cycles: 600,000
✎ Annualized workload rating: Up to 550 TB/year
✎ Non-recoverable read errors per bits read: <1 in 10^15
✎ MTBF: 2,000,000
✎ Limited Warranty (years): 3
Power Management
✎ Average power requirements (W)
■ Read/write: 9
■ Idle: 8
■ Standby and sleep: 0.5
Environmental specifications
✎ Temperature
■ Operating: 0°C to 65°C
■ Non-operating: -40°C to 70°C
✎ Shock (Gs)
■ Operating: 70
■ Operating: 70
■ Non-operating: 250
✎ Acoustics (dBA)
■ Idle: 34
■ Seek (average): 38
Physical Dimensions
✎ Height (in/mm, max): 1.028/26.1
✎ Length (in/mm, max): 5.787/147
✎ Width (in/mm, ± .01in): 4/101.6
✎ Weight (lb/kg, ± 3%): 1.65/0.75
