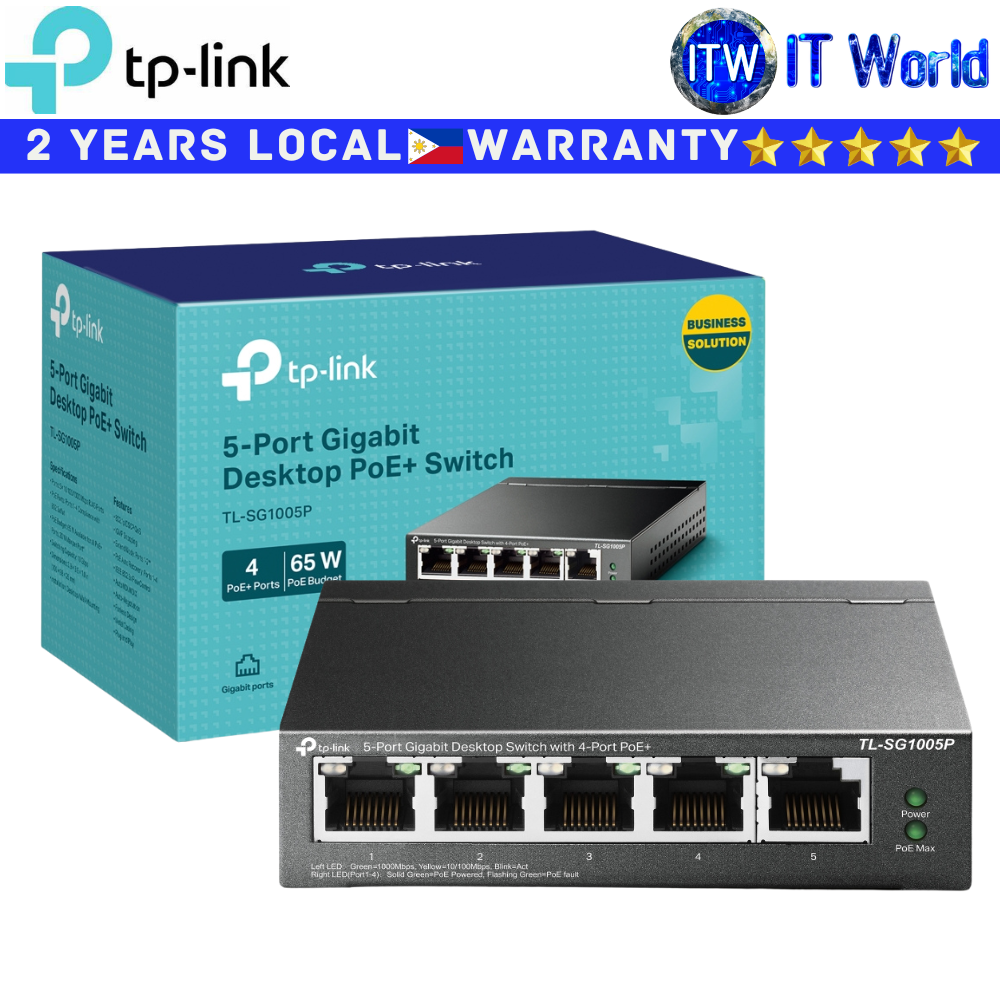

Product Name: Itw | TP-Link Router Switch TL-SG1005P 5-Port Gigabit Desktop Switch 4-Port PoE+ Plug and Play
5-Port Gigabit Desktop Switch with 4-Port PoE+
> 5× 10/100/1000 Mbps RJ45 ports
> With four PoE+ ports, transfers data and power on one single cable
> Works with IEEE 802.3af/at compliant PDs
> 802.1p/DSCP QoS enable smooth latency-sensitive traffic
> Supports PoE Power up to 30 W for each PoE port
> Supports PoE Power up to 65 W for all PoE ports*
> Up to 250m data and power transmitting range under Extend Mode**
> PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
> Plug and Play, no configuration and installation required
Specification
HARDWARE FEATURES
* Interface
- 5× 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
* Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
* Fan Quantity: Fanless
* External Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
* Packet Forwarding Rate: 7.44Mpps
* PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–4
- Power Supply: 65 W
* Mac Address Table: 2K
* Jumbo Frame: 16KB
* Switching Capacity: 10 Gbps
* Dimensions (W x D x H): 3.9 × 3.9 × 1.0in (99.8 × 98 × 25mm)
* Max Power Consumption
- 3.44 W (220/50Hz. no PD connected)
- 74.49 W (220/50Hz. with 65W PD connected)
* Max Heat Dissipation
- 11.73 BTU/h (no PD connected)
- 254.01 BTU/h (with 65W PD connected)
SOFTWARE FEATURES
* Advanced Features
- Compatible With IEEE 802.3af/at Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Extend Mode Button (Ports 1–2, Up to 250m PoE power supply and data transmission)
- PoE Auto Recovery (Ports 1-4)
* Transfer Method: Store-And-Forward
OTHERS
* Certification: FCC, CE, RoHS
* Package Contents
- TL-SG1005P
- Power Adapter
- Installation Guide
* Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉);
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
