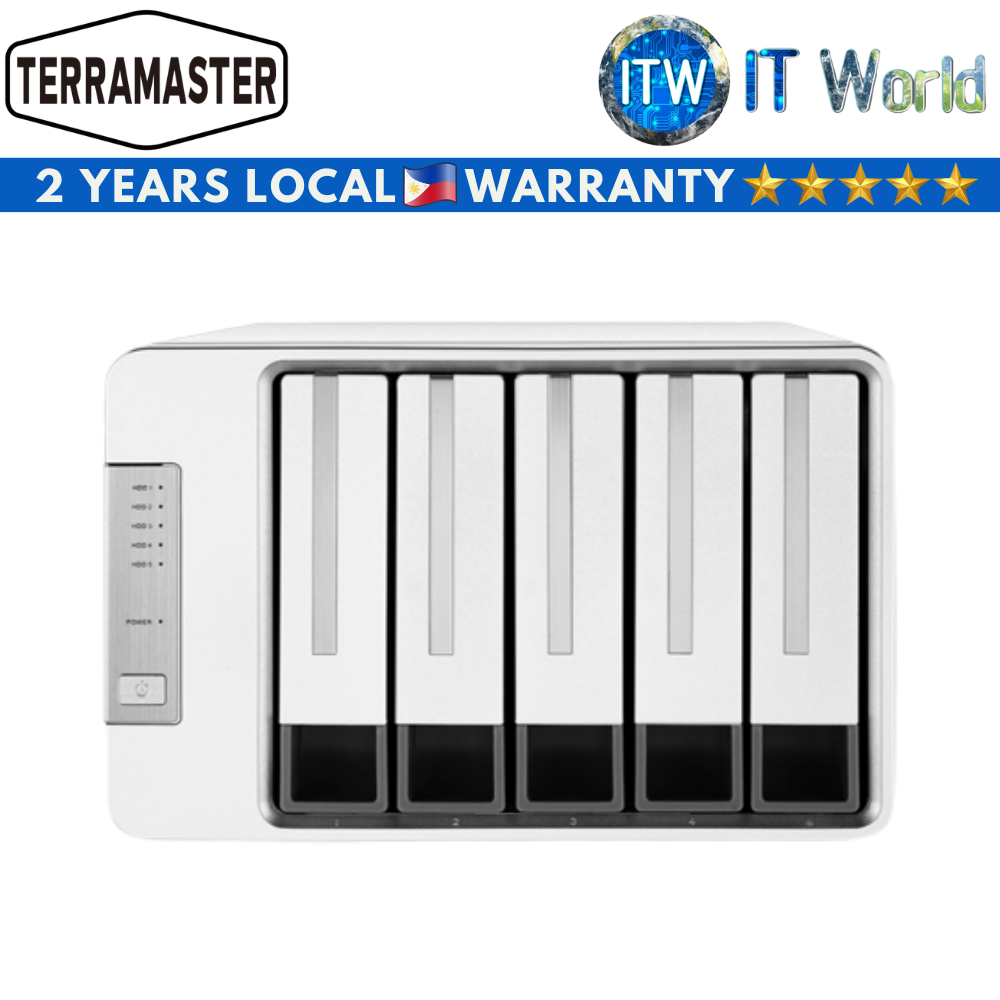

Product Name: Itw | Terramaster D5-300 5-Bay Enclosure Direct Attached Storage (DAS)
Specification
Storage
* Disk Slot Number: 5
* Compatible Disk Types
- 3.5" SATA HDD
- 2.5" SATA HDD
- 2.5" SATA SSD
* File System: NTFS, APFS, Mac OS, FAT32, EXT4, exFAT
* Maximum Internal Raw Capacity: 100TB (20 TB drive x 5)(Capacity will vary along with the RAID type)
* RAIDs Supported: Support RAID 0、RAID 1、RAID 5、RAID 10、CLONE、JBOD、Single Disk
* Hardware RAID: √
* RAID Manager Software: √
* RAID Manager Software Language: English, Chineses, Japanese, German, French, Spanish, Italian
* RAID Online Expansion: /
* RAID Migration: /
* RAID Auto-rebuilding: /
* Drive Hot Swap: /
* HDD Sleep: √
* HDD S.M.A.R.T. Inspection: /
* Sector Inspection and Parity Check: /
* SSC Cache: /
* Daisy Chain: /
* HDD NCQ Technology: /
* Alert Notice: /
* Event Log: /
External Ports
* USB: USB3.1 Type-C gen1 x 1
* Thunderbolt: /
* DP Interface: /
* Power Socket: DC IN 12V
Reading/writing Speed (max.)
* Reading Speed (max.): Read210MB/s (2 SSHD RAID0 mode)
* Writing Speed (max.): Write190MB/s (2 SSHD RAID0 mode)
Appearance
* Size (H*W*D): 227 x 225 x 136 mm
* Packaging Size (H*W*D): 300 x 275 x 186 mm
* Weight
Net Weight: 2.1Kg
Gross Weight: 3.5Kg
Others
* System fan: 80 mm x 80 mm x25mm (x 2)
* Fan mode: Smart
* Noise Level: 19.8dB(A)
Power Supply
* Power Supply: 90W
* AC Input Voltage: 100V to 240V AC
* Current Frequency: 50/60 HZ, Single Phase
* Power Consumption: 45.6W(Access)
Environment Temperature
* Working Temperature: 5°C ~ 40°C (40°F ~ 104°F)
* Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
* Relative Humidity: 5% ~ 95% RH
* Supported OS: Windows OS、Mac OS
* Warranty: 2 years
* Certificate: CE, FCC, CCC, KC
* Environment: RoHS compliance
* Package Contents
- Host unit (x1)
- Power cord (x1)
- USB Cable A to Type-C (10Gb) 1 Meter (x1)
- Quick Installation Guide (x1)
- Power adapter (x1)
- Screws (several)
- Limited Warranty Note x 1
