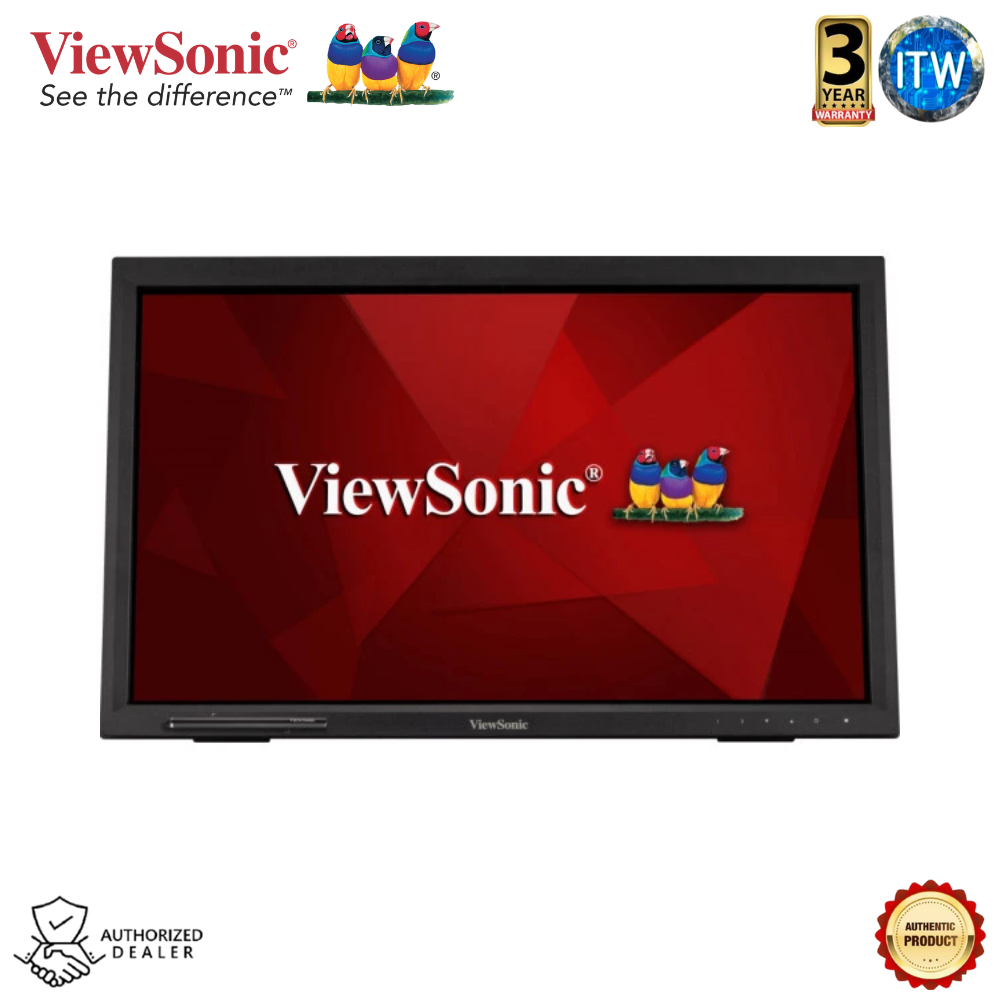

TD2223
22” IR Touch Monitor
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
OVERVIEW
The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
SPECIFICATIONS
- Display
Display Size (in.): 22 Viewable Area (in.): 21.5 Panel Type: TN Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 20M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) Aspect Ratio: 16:9 Response Time (Typical GTG): 5ms Response Time (GTG w/OD): 5ms Response Time (Typical Tr+Tf): 5ms Viewing Angles: 170º horizontal, 160º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 75 Blue Light Filter: Yes Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ) sRGB: 103% size (Typ) Pixel Size: 0.248 mm (H) x 0.248 mm (V) Touch Screen: IR, 10-point multi-touch Surface Treatment: Glossy, Hard Coating (7H) Cover Glass Thickness: 2mm
- Compatibility
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 7/8.1/10/11 certified; macOS tested Mac® Resolution (min): 1920x1080
- Connector
VGA: 1 USB 2.0 Type A: 2 USB 2.0 Type B: 1 3.5mm Audio In: 1 3.5mm Audio Out: 1 HDMI 1.4: 1 DVI-D: 1 Power in: 3-pin Socket (IEC C14 / CEE22)
- Audio
Internal Speakers: 2Watts x2
- Power
Eco Mode (Conserve): 8.5W Eco Mode (optimized): 10.5W Consumption (typical): 12.5W Consumption (max): 14W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply
- Additional Hardware
Kensington Lock Slot: 1 Cable Organization: Yes
- Controls
Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
- Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90%
- Wall Mount
VESA Compatible: 100 x 100 mm
- Input Signal
Frequency Horizontal: 24 ~ 82KHz Frequency Vertical: 50 ~ 75Hz
- Video Input
Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4) Analog Sync: Separate/Composite/SOG - RGB Analog
- Ergonomics
Tilt (Forward/Back): 20º / 40º
- Weight (imperial)
Net (lbs): 9.9 Net Without Stand (lbs): 8.6 Gross (lbs): 13.2
- Weight (metric)
Net (kg): 4.5 Net Without Stand (kg): 3.9 Gross (kg): 6
- Dimensions (imperial) (wxhxd)
Packaging (in.): 22.8 x 15.9 x 6.5 Physical (in.): 20.5 x 13.1 x 4 Physical Without Stand (in.): 20.5 x 12.5 x 2.4
- Dimensions (metric) (wxhxd)
Packaging (mm): 580 x 405 x 164 Physical (mm): 521 x 334 x 101 Physical Without Stand (mm): 521 x 318 x 61
- General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BSMI, VCCI, PSE, KC, e-Standby, BIS, CCC, China RoHS, China Energy Label, CECP PACKAGE CONTENTS: TD2223 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards, EPEAT
