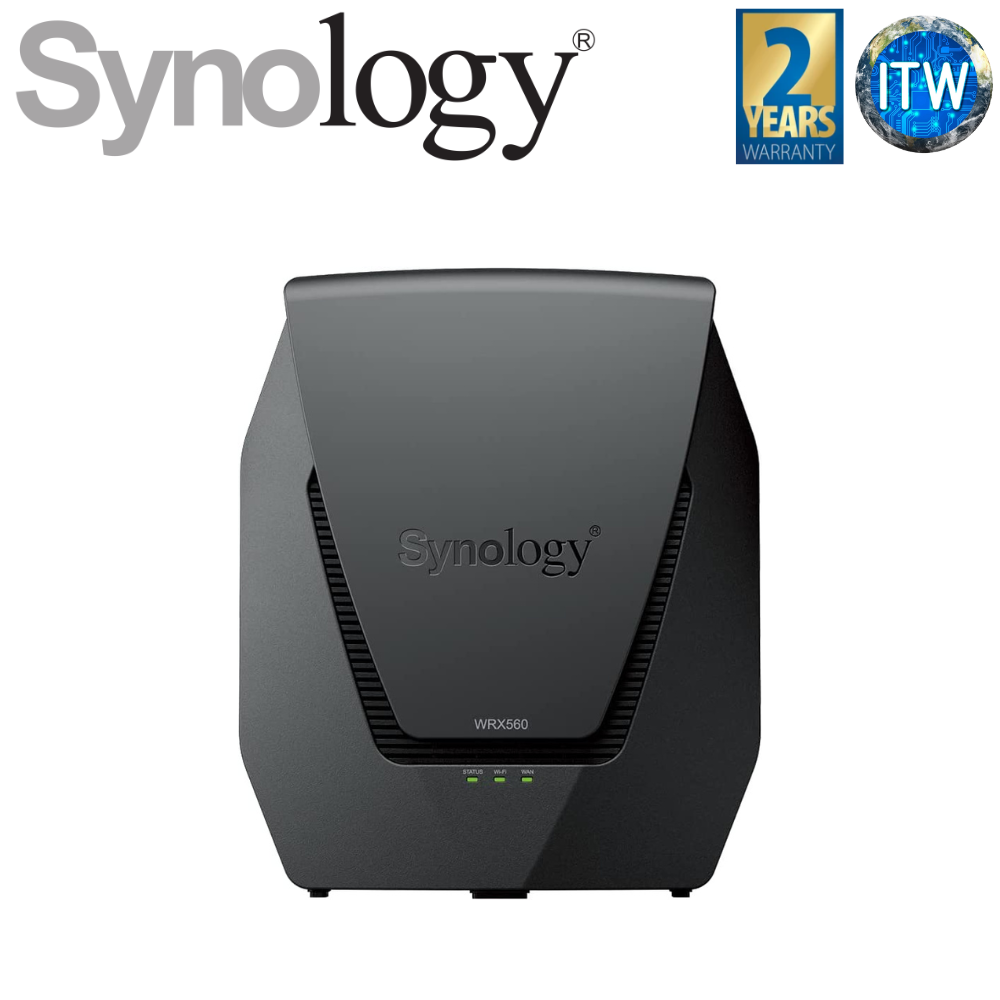

Product Name: ITW | Synology WRX560 WiFi 6 Mesh Router
Specification
HARDWARE SPECS
✎ CPU: Quad core 1.4 GHz
✎ Hardware Acceleration Engine: Layer 4 / Layer 7
✎ Memory: 512 MB DDR4
✎ Antenna Type
■ 4x4 MIMO high-performance internal antenna (5 GHz)
■ 2x2 MIMO high-performance internal antenna (2.4 GHz)
✎ LAN Port
■ 2.5GbE (RJ-45) x 1
■ Gigabit (RJ-45) x 3
✎ WAN Port
■ Gigabit (RJ-45) x 1
■ 2.5 GbE (RJ-45) x 1 (Dual WAN)
✎ External Ports: USB 3.2 Gen 1 x 1 (5V, 0.9A power output)
✎ IEEE 802.11ax
■ IEEE 802.11a/b/g/n/ac/ax
■ 2.4GHz: 600Mbps
■ 5GHz: 2400Mbps
■ Simultaneous dual-band Wi-Fi
✎ Wi-Fi Encryption: WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)
✎ Button and Switch: WPS, Power, Reset, Wi-Fi On/Off
✎ Size: 233 mm x 194 mm x 66 mm
✎ Weight: 1.35 kg
✎ Temperature
■ Operating Temperature: 5°C to 40°C (40°F to 104°F)
■ Storage Temperature: -20°C to 60°C (-5°F to 140°F)
■ Relative Humidity: 5% to 95% RH
✎ AC Input Power Voltage: 100 V to 240 V AC
✎ Power Frequency: 50/60 Hz, Single Phase
✎ Power Consumption
■ 10.80 W (Access)
■ 7.94 W (Idle)
✎ Environment: RoHS Compliant
SOFTWARE SPECS
SRM
Wireless
✎ Wi-Fi MAC Address Filter: /
✎ Maximum MAC Filters: 64
✎ Maximum devices on per MAC filter: 256
✎ Seamless Roaming: 802.11k/v/r standard support
✎ Beamforming: /
✎ DFS: /
✎ Maximum Number of Wi-Fi SSID: 10
✎ Schedulable Wi-Fi: /
✎ Guest Network
■ Guest Portal
■ Customized page style
■ Connection time limit
■ Password Rotation
✎ WPS 2.0 (Wi-Fi Protected Setup 2.0): /
✎ 3G / 4G Dongle & Tethering: /
✎ Primary Wi-Fi Point: /
✎ Wi-Fi Point: /
✎ Recommended Maximum Number of Wi-Fi Points
■ 1 Primary + 6 Wi-Fi points (in all wireless uplink connection environment)
■ 1 Primary + 12 Wi-Fi points (in all wired uplink connection environment)
✎ Maximum Connected Devices*: 150
Network
✎ Internet Connection
■ Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR)
■ Android Tethering
■ iPhone Tethering
✎ Operating Mode
■ Wireless Router
■ Wireless AP
✎ DMZ: /
✎ IPv6: IPv6 DHCP server/client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET's IPv6
✎ DHCP: Server/client mode, client list, MAC address reservation
✎ Maximum DHCP Reservations: 500
✎ LAN / WLAN IGMP Snooping: /
✎ Network Address Translation (NAT): /
✎ PPPoE relay: /
✎ Policy route: /
✎ Static route: /
✎ Maximum IPv4 Static Routes: 100
✎ Maximum IPv6 Static Routes: 100
✎ Diagnosis Tools
■ Ping
■ Traceroute
✎ NAT Loopback (Hairpinning): /
VLAN
✎ Maximum Number of Network Segmentation: 5
✎ Trunk: /
Port Forwarding
✎ Maximum Port Forwarding Rules: 64
✎ Maximum UPnP Rules: 64
Port Triggering
✎ Maximum Port Triggering Rules: 32
✎ Minimum Port Triggering Timeout: 30s
✎ Maximum Port Triggering Timeout: 3600s
VPN
✎ VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site)
✎ VPN client (PPTP, OpenVPN, L2TP/IPSec)
✎ VPN Pass-through (PPTP, IPSec, L2TP)
Traffic Control
✎ Internet Ban, Device Speed & Priority: /
✎ Application Layer (L7) Quality of Service (QoS): /
✎ Maximum Device Rules: 64
✎ Maximum Application Rules per Device: 32
Traffic Monitor
✎ Live View: /
✎ Historical Statistics: Daily, Weekly, Monthly, Annual
✎ Website History: /
✎ Application Detection: /
Traffic Report
✎ Country Auto Update: /
✎ Schedulable: /
✎ Traffic Analysis: Period Daily, Weekly, Monthly, Annual
✎ Export Formats: .CSV, .HTML
Management
✎ Operating System: Synology Router Manager (SRM)
✎ Anywhere Access to SRM: Synology QuickConnect & Dynamic DNS (DDNS)
✎ Security: Firewall/SPI Firewall, DoS Protection, VPN Pass-through (PPTP, IPSec, L2TP), Auto block, SSL certificate, Security Advisor, two-factor authentication
✎ Wake on LAN (WOL)
■ WOL over QuickConnect: /
■ Maximum Connected Devices: 100
✎ Notification: Email, SMS, push service (via DS router)
✎ Printer Server
■ Maximum printer: 1
✎ Others
■ Free OS Upgrade: /
■ SSH: /
■ SNMP: /
■ Configuration Backup & Restore: /
■ User Account Management: /
USB/SD Card File Service
✎ File System: EXT4, FAT, NTFS, HFS+
✎ Access Support
■ File explorer (via LAN only)
■ Web browsers: Chrome™, Firefox®, Microsoft Edge, Safari
■ Mobile device: DS file
✎ Protocol Support: Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV
✎ Others
■ Apple Time Machine
■ Shared Folder Privileges
■ Storage Hibernation
