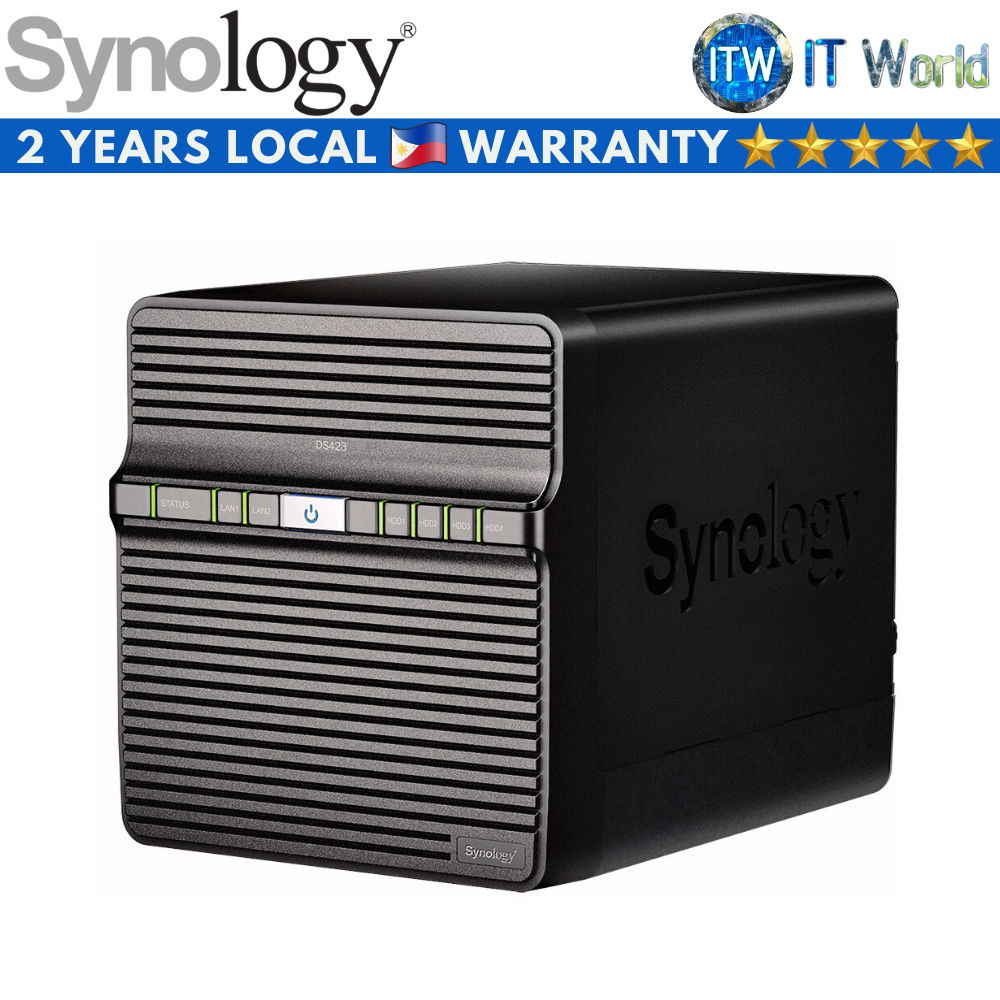

Product Name: Itw | Synology Diskstation DS423 - 4 Bays Network Attached Storage (NAS)(SY-DS423)
Specification
*** Hardware Specs ***
CPU
- CPU Model: Realtek RTD1619B
- CPU Quantity: 1
- CPU Architecture: 64-bit
- CPU Frequency: 4-core 1.7 GHz
- Hardware Encryption Engine: /
Memory
- System Memory: 2 GB DDR4 non-ECC
Storage
- Drive Bays: 4
- Compatible Drive Type* (See all supported drives)
> 3.5" SATA HDD
> 2.5" SATA SSD
- Hot Swappable Drive*: /
External Ports
- RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
- USB 3.2 Gen 1 Port*: 2
File System
- Internal Drives
> Btrfs
> EXT4
- External Drives
> Btrfs
> EXT4
> EXT3
> FAT
> NTFS
> HFS+
> exFAT
Appearance
- Size (Height x Width x Depth): 184 mm x 168 mm x 230 mm
- Weight: 2.21 kg
Others
- System Fan: 80 mm x 80 mm x 2 pcs
- Fan Speed Mode
> Full-Speed Mode
> Cool Mode
> Quiet Mode
- Brightness Adjustable Front LED Indicators: /
- Power Recovery: /
- Noise Level*: 20.6 dB(A)
- Scheduled Power On / Off: /
- Wake on LAN / WAN: /
- Power Supply Unit / Adapter: 90 W
- AC Input Power Voltage: 100V to 240V AC
- Power Frequency: 50/60 Hz, Single Phase
- Power Consumption
> 32.41 W (Access)
> 4.97 W (HDD Hibernation)
- British Thermal Unit
> 110.52 BTU/hr (Access)
> 16.95 BTU/hr (HDD Hibernation)
Temperature
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-5°F to 140°F)
- Relative Humidity: 5% to 95% RH
*** Software Specs ***
DSM Specifications
Storage Management
- Maximum Single Volume Size: 108 TB
- Maximum Internal Volume Number: 64
- SSD TRIM: /
- Supported RAID Type
> Synology Hybrid RAID
>Basic
>JBOD
>RAID 0
>RAID 1
>RAID 5
>RAID 6
>RAID 10
- RAID Migration
>Basic to RAID 1
>Basic to RAID 5
>RAID 1 to RAID 5
>RAID 5 to RAID 6
- Volume Expansion with Larger HDDs
>Synology Hybrid RAID
>RAID 1
>RAID 5
>RAID 6
>RAID 10
- Volume Expansion by Adding a HDD
>Synology Hybrid RAID
>JBOD
>RAID 5
- Global Hot Spare Supported RAID Type
>Synology Hybrid RAID
>RAID 1
>RAID 5
File Services
- File Protocol: SMB/AFP/NFS/FTP/WebDAV
- Maximum Concurrent SMB/AFP/FTP Connections: 200
- Windows Access Control List (ACL) Integration: /
- NFS Kerberos Authentication: /
Account & Shared Folder
- Maximum Local User Accounts: 1,024
- Maximum Local Groups: 256
- Maximum Shared Folder: 256
- Maximum Shared Folder Sync Tasks: 4
Hybrid Share
- Hybrid Share Folder Number: 5
Hyper Backup
- Folder and Package Backup: /
Log Center
- Syslog Events per Second: 400
General Specifications
- Networking Protocols : SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
- Supported Browsers
> Google Chrome
> Firefox
> Microsoft Edge
> Safari
- Synology Chat: /
Download Station
- Maximum Concurrent Download Tasks: 80
SAN Manager
- Maximum iSCSI Target Number: 128
- Maximum LUN: 256
- LUN Clone/Snapshot, Windows ODX: /
Media Server
- DLNA Compliance: /
Synology Photos
- Facial Recognition: /
Snapshot Replication
- Maximum Snapshots per Shared Folder: 256
- Maximum of System Snapshots: 4,096
