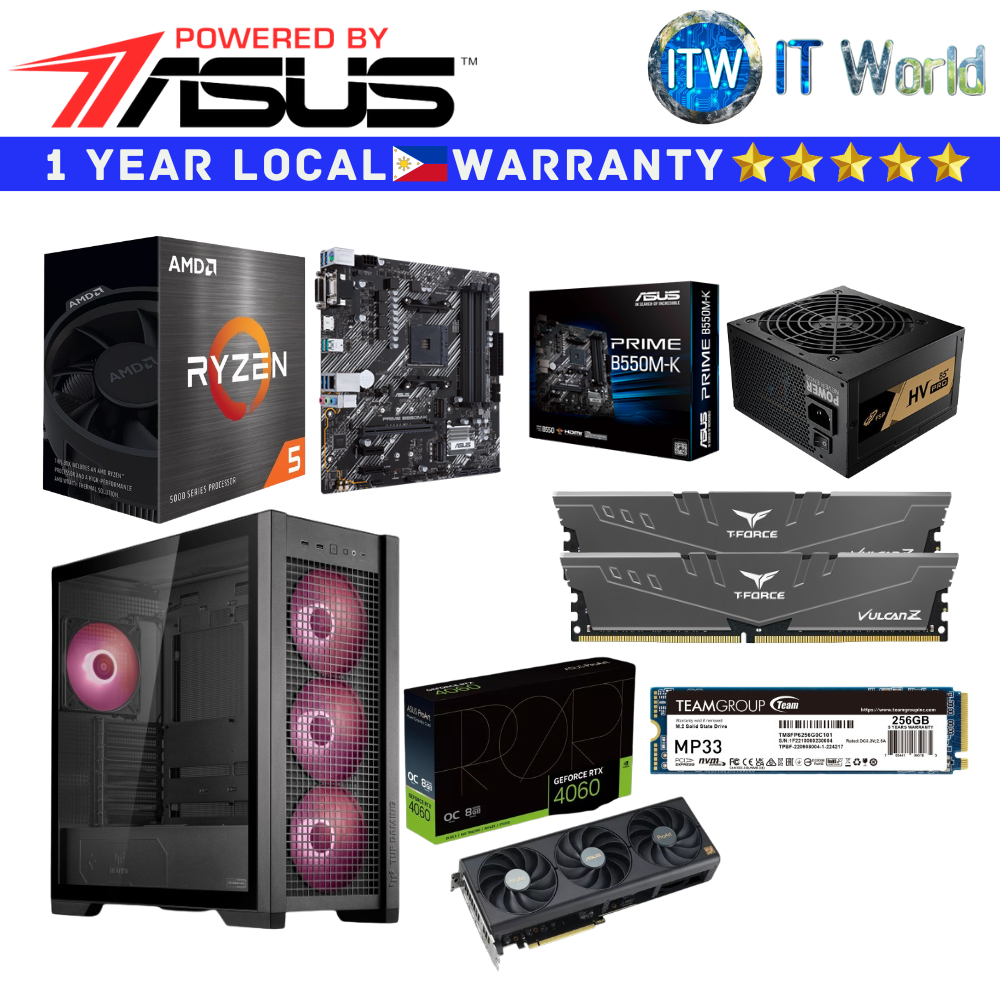

Product Name: Gaming PC Powered by ASUS Desktop Computer Set Strike Force Build 5 5600 RTX 4060 ProArt
*** AMD Ryzen 5 5600 Processor ***
General
> # of CPU Cores: 6
> Multithreading (SMT): Yes
> # of Threads12
> Max. Boost Clock: Up to 4.4 GHz
> Base Clock: 3.5 GHz
> L1 Cache: 384 KB
> L2 Cache: 3 MB
> L3 Cache: 32 MB
> Default TDP: 65W
> Processor Technology for CPU Cores: TSMC 7nm FinFET
> Processor Technology for I/O Die: 12nm (Globalfoundries)
> CPU Compute Die (CCD) Size: 74mm²
> I/O Die (IOD) Size125mm²
> Package Die Count: 2
> Unlocked for Overclocking: Yes
> CPU SocketAM4
> Supporting Chipsets: X570, X470, X370, B550, B450, B350, A520
> CPU Boost Technology: Precision Boost 2
> Instruction Set: x86-64
> Supported Extensions: AES, AMD-V, AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
> Thermal Solution (PIB)
> AMD Wraith Stealth: Max. Operating Temperature (Tjmax): 90°C
> *OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity
> Native USB 3.2 Gen 2 (10Gbps) Ports: 4
> Native USB 3.2 Gen 1 (5Gbps) Ports: 0
> Native USB 2.0 (480Mbps) Ports0
> Native SATA Ports: 2
> PCI Express® Version: PCIe® 4.0
> Native PCIe® Lanes (Total/Usable): 24, 20
> Additional Usable PCIe Lanes from Motherboard
- X570 16x Gen 4
- X470 2x Gen 3, 8x Gen 2
> NVMe Support: Boot, RAID0, RAID1, RAID10
> System Memory Type: DDR4
> Memory Channels: 2
> Max. Memory: 128 GB
> System Memory Subtype: UDIMM
> System Memory Specification: Up to 3200 MT/s
> Max Memory Speed
- 2x1R DDR4-3200
- 2x2R DDR4-3200
- 4x1R DDR4-2933
- 4x2R DDR4-2667
> ECC Support: Yes (Requires mobo support)
*** ASUS Prime B550M-K Motherboard ***
CPU
> AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *
Chipset
> AMD B550
Memory
> 4 x DIMM, Max. 128GB, DDR4
4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
> Dual Channel Memory Architecture
> ECC Memory (ECC mode) support varies by CPU.
Form Factor
> mATX / 9.6inch x 9.6inch (24.4cm x 24.4cm)
*** ASUS PROART RTX 4060 OC 8GB GDDR6 Graphic Card ****
> Model: PROART-RTX4060-O8G
> Graphic Engine: NVIDIA® GeForce RTX™ 4060
> Bus Standard: PCI Express 4.0
> OpenGL: OpenGL®4.6
> Video Memory8GB GDDR6
> Engine Clock
- OC mode: 2580 MHz
- Default mode: 2550 MHz (Boost)
> CUDA Core: 3072
> Memory Speed: 17 Gbps
> Memory Interface: 128-bit
> ResolutionDigital Max Resolution 7680 x 4320
> Interface
- Yes x 1 (Native HDMI 2.1a)
- Yes x 3 (Native DisplayPort 1.4a)
- HDCP Support Yes (2.3)
> Maximum Display Support: 4
> NVlink/ Crossfire Support: No
> Recommended PSU: 550W
> Power Connectors: 1 x 8-pin
> Slot: 2.5 Slot
*** ASUS TUF Gaming GT302 ARGB Black PC Case ***
> Case Size: Mid Tower
> Motherboard Support: EATX (12"x10.9") / ATX / Micro-ATX / Mini-ITX
> Drive Bays
- 2 x 2.5" Bay
- 2 x 2.5"/3.5" Combo Bay
> Expansion Slots: 8 / 3 (additional vertical)
> Front I/O Port
- 1 x headphone / Microphone
- 2 x USB 3.2 Gen1
- 1 x UBS 3.2 Gen 2x2 Type C
> Tempered Glass: Left Side
> Radiator Support (Front): 140 mm / 280 mm
> Radiator Support (Top): 120 mm / 140 mm / 240 mm / 280 mm / 360 mm
> Radiator Support (Rear): 120 mm / 140 mm
> Cooling Support (Front): 3 x 140 mm
> Cooling Support (Top): 3 x 120 mm / 3 x 140 mm
> Cooling Support (Rear): 1 x 120 mm / 1 x 140 mm
> Pre-installed Fans (Front): 3 x 140 mm / PWM / ARGB
> Pre-installed Fans (Rear): 1 x 140 mm / ARGB / PWM
> Maximum CPU Cooler Height: 165 mm
> Maximum GPU Length: 407 mm
> Maximum PSU Length: 220 mm
> Removable Dust Filters: Front / Top / Bottom
> Maximum Cable Management Space: 37 mm
> Dimensions: 235*520*485 mm (W*H*D)
*** FSP HV Pro 85+ 650W PSU ***
> Model: FSP650-51AAC
> Rated Output Power: 650W
> Form Factor: ATX
> 80 PLUS Certification: 230V EU Bronze
> Input Voltage: 200-240V
> Input Current: 5A
> Input Frequency: 50-60Hz
> PFC: Active PFC
> Efficiency: ≥88% at typical load
> Fan Type: Sleeve Fan, 120mm
> Dimensions (L x W x H): 150 x 140 x 86mm
> Protection: OCP, OVP, OPP, SCP
*** Teamgroup Vulcan Z 16GB(2x8GB) DDR4-3600Mhz RAM ***
> Capacity: 16GB(2x8GB)
> Frequenxy: 3600Mhz
> Latency: CL18
> Data Transfer Bandwidth: 28800 MB/s
> Voltage: 1.35V
> Compatibility: Intel Z390 / Z490 / Z590; AMD B550 X570
> P/N: TLZGD416G3600HC18JDC01
*** Teamgroup MP33 256GB SSD ***
> Capacity: 256GB
> Sequential Read: 1600MB/s
> Sequential Write: 1000MB/s
> Terabyte Written: 150TBW
> DRAM Cache: No
