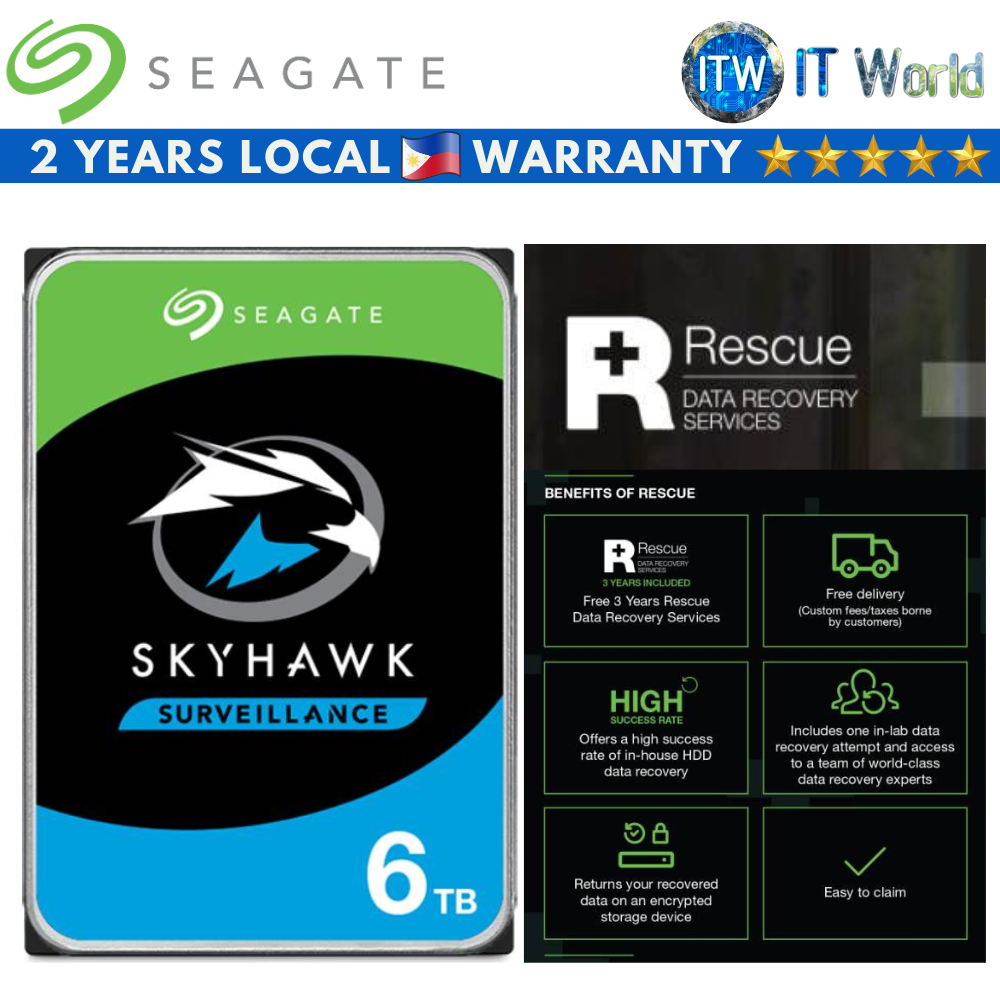

Product Name: ITW | Seagate Skyhawk 6TB 256MB 3.5 SATA 6Gb/s Internal Hard Drive (ST6000VX001)
Key Advantages
* ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads that record video from 64 HD cameras.
* SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options. Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.
* Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate's in-house data recovery services.
* RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.
* ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.
* 1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
* Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability.
Specification
* Standard Model Numbers: ST6000VX001
* SkyHawk™ Health Management Included: Yes
* Interface: SATA 6 Gb/s
* Recording Technology: CMR
* Drive Design: Yes
Features and Performance
* Drive Bays Supported: Up to 16
* Cameras Supported: Up to 64
* RV Sensors: Yes
* Max Sustained Transfer Rate OD (MB/s): 180MB/s
* Cache (MB): 256
Reliability/Data Integrity
* Tarnish Resistant: Yes
* Load/Unload Cycles: 600,000
* Non-recoverable Read Errors Rate, Max: 1 per 10E14
* Power-On Hours per year: 8,760
* Workload Rate Limit (WRL): 180
* Mean Time Between Failures (MTBF) (hours): 1,000,000 hr
* Warranty, Limited (years): 3
* Rescue Data Recovery Services (years): 3
Power Management
* Startup Current, Typical (12V, A): 1.8
* Average Operating Power (W): 5 W
* Idling Average (W): 3.4 W
* Standby Mode/Sleep Mode, Typical (W): 0.25/0.25
* Voltage Tolerance (5 V): ±5%
* Voltage Tolerance (12 V): ±10%
Environmental/Temperature
* Operating (ambient, min °C): 0
* Operating (drive case, max °C): 70
* Non-operating (ambient, min °C): -40
Physical
* Height (mm/in, max): 26.11 mm/1.028 in
* Width (mm/in, max): 101.85 mm/4.01 in
* Depth (mm/in, max): 146.99 mm/5.787 in
* Weight (g/lb, typical): 610 g/1.345 lb
* Carton Unit Quantity: 20
* Cartons per Pallet / Cartons per Layer: 40/8
