SAPPHIRE PULSE Radeon RX 6750 XT 12GB GDDR6 PCI Express 4.0 ATX Graphic Card (SPR-11318-03-20G)

https://itworldph.com/web/image/product.template/10213/image_1920?unique=caa4756

This product is no longer available.



100% Original
Free Delivery
30 Days Return

Chat with Us!

Share this product:

The Sapphire 11318-03-20G runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable and steady performance, which efficiently lowers PCB temperatures and component signal noise. The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.

SAPPHIRE PULSE AMD Radeon™ RX 6750 XT

The SAPPHIRE PULSE AMD Radeon™ RX 6750 XT Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.

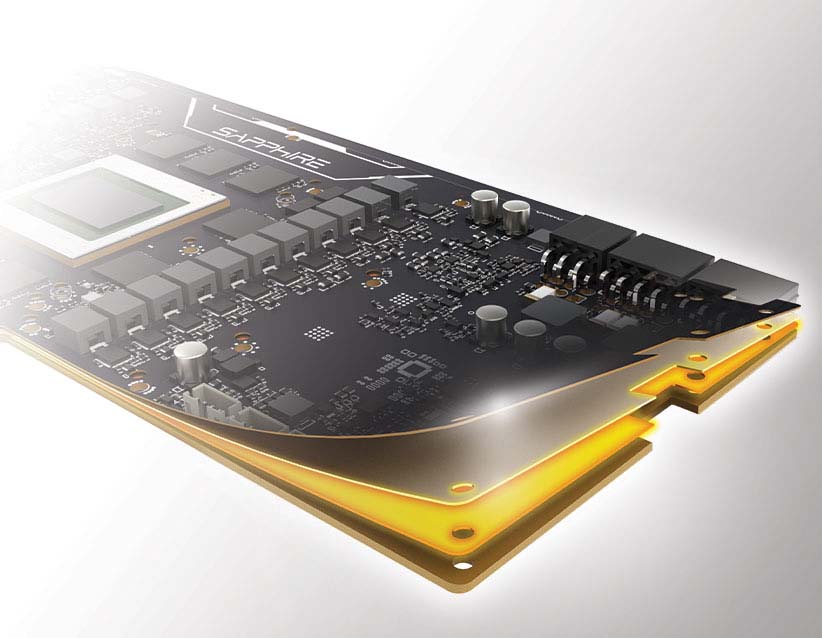

High TG Copper PCB

The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

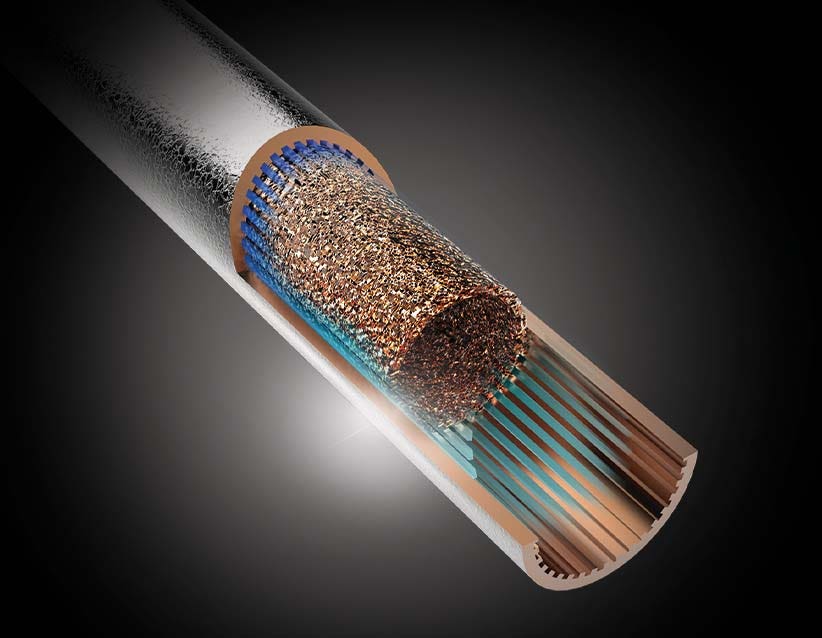

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

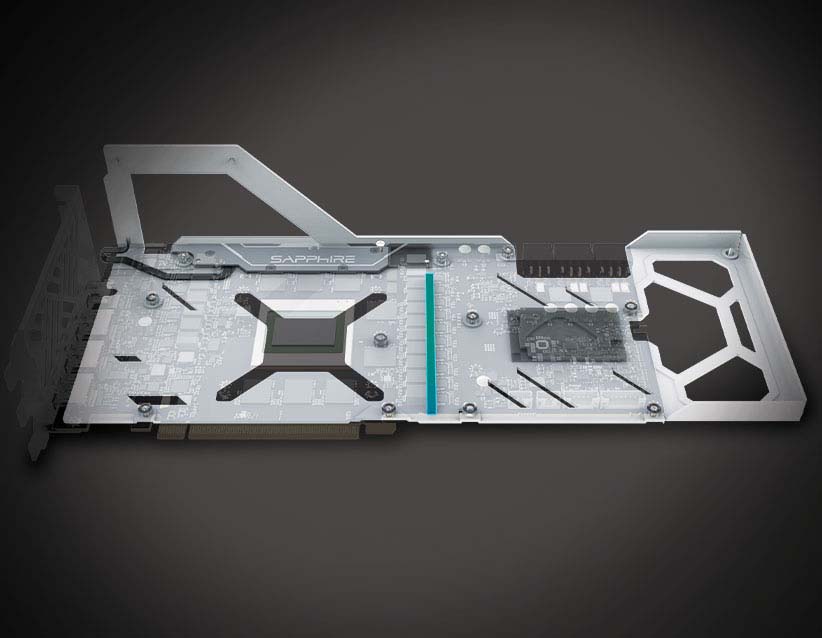

Metal Backplate with Thermal Pad

The high quality aluminum backplate is not just for styling. It also protects the components on the backside of the PCB and helps dissipate the heat from the PCB with a high performance thermal pad in between.

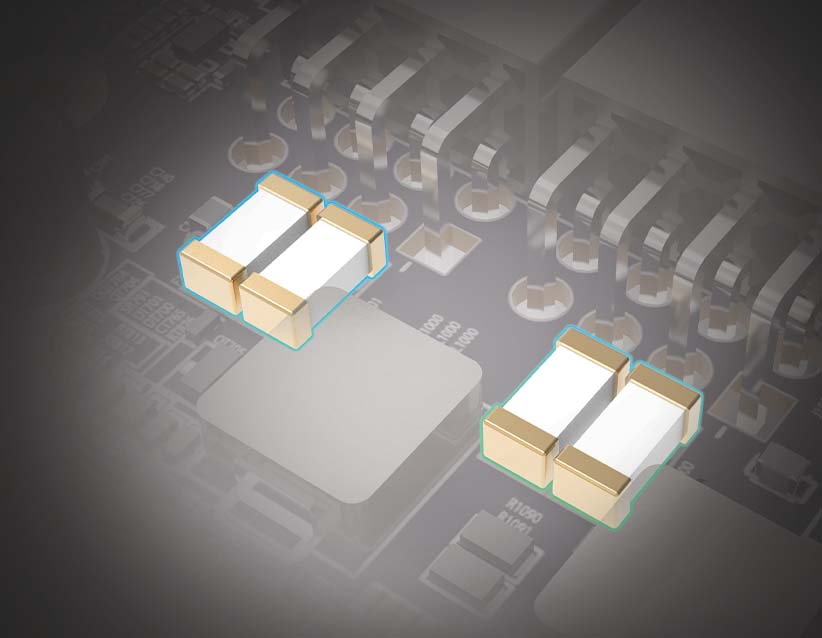

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

SPECS:

GPU

AMD Radeon™ RX 6750 XT Graphics Card7nm GPUAMD RDNA™ 2 Architecture

Engine Clock

Boost Clock: Up to 2618 MHzGame Clock: Up to 2512 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

2560

Infinity Cache

96MB

Ray Accelerators

40

Memory Size/Bus

12GB GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI™: 7680×4320

DisplayPort1.4: 7680×4320

Interface

PCI-Express 4.0

Output

1x HDMI

3x DisplayPort

BIOS Support

UEFI

Game Index

1440P

Sapphire Features

Premium Digital Power Design

Fuse Protection

High TG Copper PCB

Optimized Composite Heatpipe

Dual-X Cooling Technology

Intelligent Fan Control

Precision Fan Control

Metal Backplate with Thermal Pad

Two-Ball Bearing Fans

TriXX Supported

TriXX Boost

AMD Features

AMD RDNA™ 2 Gaming Architecture

DirectX® 12 Ultimate

Hardware Raytracing

GDDR6 Memory

Smart Access Memory

Infinity Cache

7nm GPU

PCI® Express 4.0 Support

AMD FreeSync™ Technology

DisplayPort™ 1.4 with DSC

HDMI™

Video Streaming up to 8K

Radeon™ VR Ready Premium

AMD FidelityFX

AMD FidelityFX™ Super Resolution (FSR)

AMD Radeon™ Super Resolution

Radeon™ Image Sharpening

Radeon™ Anti-Lag

Radeon™ Software

Game Driver Optimizations

Cooling

Dual Fans

Form Factor

2.7 slot, ATXDimension: 280(L)X 122.75(W)X 50.47(H)mm

Power Consumption

250W Total Board Power

OS

Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement

Minimum 650 Watt Power Supply

1 x 8-pin + 1 x 6-pin Power Connector.

PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8GB of system memory. 16GB recommended.
