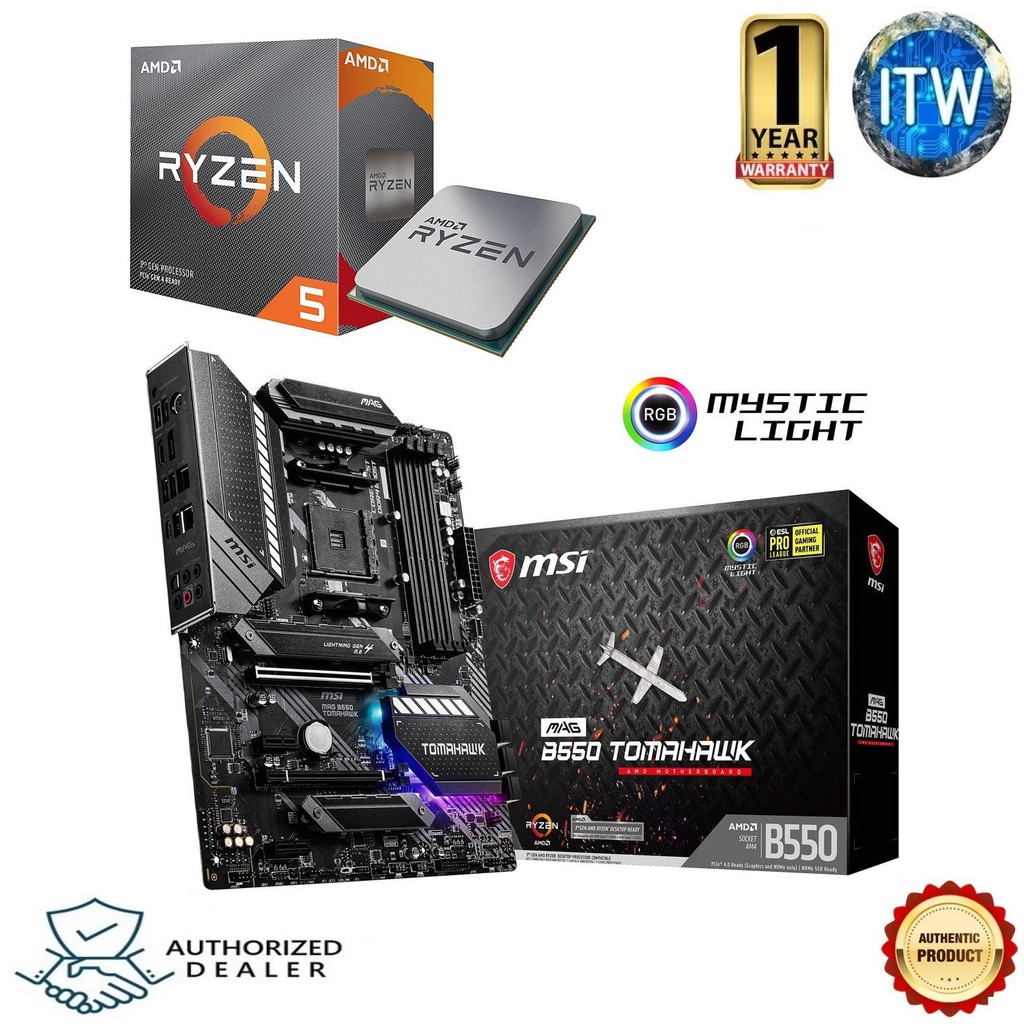

Product Name: ITW | AMD Ryzen 5 3600 Processor with MSI MAG B550 Tomahawk ATX AM4 DDR4 Motherboard Bundle
■ ■ AMD Ryzen 5 3600 6-Cores, 12-Thread Processor ■ ■
General Specifications
✎ Platform: Boxed Processor
✎ Product Family: AMD Ryzen™ Processors
✎ Product Line: AMD Ryzen™ 5 Desktop Processors
✎ # of CPU Cores: 6
✎ # of Threads: 12
✎ Max. Boost Clock: Up to 4.2GHz
✎ Base Clock: 3.6GHz
✎ L1 Cache: 384KB
✎ L2 Cache: 3MB
✎ L3 Cache: 32MB
✎ Default TDP: 65W
✎ Processor Technology for CPU Cores: TSMC 7nm FinFET
✎ Unlocked for Overclocking: Yes
✎ CPU Socket: AM4
✎ Thermal Solution (PIB): Wraith Stealth
✎ Thermal Solution (MPK): Wraith Stealth
✎ Max. Operating Temperature (Tjmax): 95°C
✎ Launch Date: 7/7/2019
✎ *OS Support
■ Windows 11 - 64-Bit Edition
■ Windows 10 - 64-Bit Edition
■ RHEL x86 64-Bit
■ Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
✎ PCI Express® Version: PCIe 4.0 x16
✎ System Memory Type: DDR4
✎ Memory Channels: 2
✎ System Memory Specification: Up to 3200MHz
Product IDs
✎ Product ID Boxed: 100-100000031BOX
✎ Product ID Tray: 100-000000031
✎ Product ID MPK: 100-100000031MPK
■ ■ MSI MAG B550 Tomahawk ATX AM4 DDR4 Motherboard ■ ■
PROCESSOR
✎ Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
CHIPSET
✎ AMD B550 Chipset
MEMORY
✎ 4 x DDR4 memory slots, support up to 128GB
■ Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
■ Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE
* 1DPC 1R max speed 5100 MHZ
* 1DPC 2R max speed 3866 MHZ
* 2DPC 1R max speed 4000 MHZ
* 2DPC 2R max speed 3600 MHZ
✎ Dual channel memory architecture
✎ Supports non-ECC UDIMM memory
✎ Supports ECC UDIMM memory
✎ Supports un-buffered memory
EXPANSION SLOT
✎ 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
✎ 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
✎ 2x PCIe 3.0 x1 slots
The supported specification depends on installed processor.When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
ONBOARD GRAPHICS
✎ 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Support HDCP 1.4 & 2.3
✎ 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
✎ Maximum shared memory of 16 GB
Available for the processor with integrated graphics.
Graphics specifications may vary depending on the CPU installed.
STORAGE
✎ AMD B550 Chipset
■ 6x SATA 6Gb/s ports
■ 2x M.2 slots (Key M)
*M2_1 slot (from AMD Processor)
- Supports PCIe 4.0/ 3.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280/ 22110 storage devices
*M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0x4
- Supports 2242/ 2260/ 2280 storage devices
The supported specification depends on installed processor.
USB
✎ AMD B550 Chipset
■ 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
■ 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
✎ AMD Processor
■ 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
■ 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO
✎ Realtek® ALC1200 / ALC1220P Codec
■ 7.1-Channel High Definition Audio
■ Supports S/PDIF output
LAN
✎ 1x Realtek® RTL8125B 2.5Gbps LAN controller
✎ 1x Realtek® RTL8111H 1Gbps LAN controller
INTERNAL CONNECTORS
✎ 1x 24-pin ATX main power connector
✎ 1x 8-pin ATX 12V power connector
✎ 6x SATA 6Gb/s connectors
✎ 2x M.2 slots (M-Key)
✎ 1x USB 3.2 Gen 1 5Gbps Type-C port
✎ 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
✎ 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
✎ 1x 4-pin CPU fan connector
✎ 1x 4-pin water-pump fan connector
✎ 6x 4-pin system fan connectors
✎ 1x Front panel audio connector
✎ 2x System panel connectors
✎ 1x Chassis Intrusion connector
✎ 2x 4-pin RGB LED connectors
✎ 2x 3-pin RAINBOW LED connectors
✎ 1x TPM module connector
✎ 1x Clear CMOS jumper
BACK PANEL PORTS
✎ PS/2 Combo Port
✎ DisplayPort
✎ 2.5G LAN Port
✎ 1G LAN Port
✎ HD Audio Connectors
✎ Flash BIOS Button
✎ USB 2.0 Port
✎ HDMI Port
✎ USB 3.2 Gen 1 5Gbps (Type-A)
✎ USB 3.2 Gen 2 10Gbps (Type-A + Type-C)
✎ Optical S/PDIF OUT
DIMENSIONS
✎ ATX Form Factor / 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
