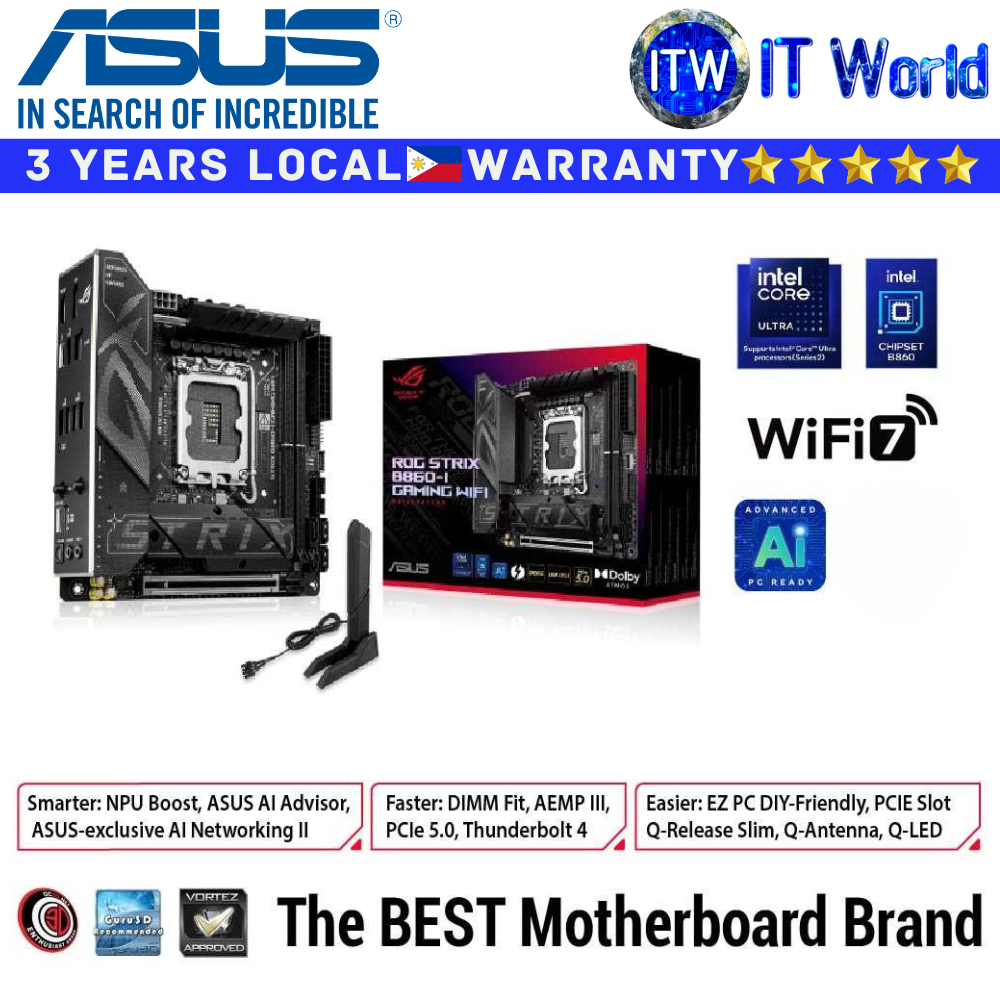

Product Name: Itw | ASUS Motherboard ROG Strix B860-I Gaming Wifi mini-ITX LGA1851 DDR5
ROG STRIX B860-I gaming wifi
> The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
Specification
CPU
> Support Intel® Core™ Ultra Processors (Series 2)*
> Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
> Intel® B860 Chipset
Memory
> 2 x DIMM slots, max. 128GB, DDR5 Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
> Dual channel memory architecture DIMM Fit
> Supports Intel® Extreme Memory Profile (XMP) memory module
> ASUS Enhanced Memory Profile III (AEMP III)
*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
> 1 x DisplayPort**
> 1 x HDMI™ port***
> 1 x Intel® Thunderbolt™ 4 supports
> DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps.
***** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
> Intel® Core™ Ultra Processors (Series 2)
- 1 x PCIe 5.0 x16 slot
~ To ensure compatibility of the device installed.
Storage
> Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
> Intel® Core™ Ultra Processors (Series 2)
- M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode)
> Intel® B860 Chipset**
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Wireless & Bluetooth
> Wi-Fi 7*
> 2x2 Wi-Fi 7 (802.11be)
> Supports 2.4/5/6GHz frequency band**
> Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
> Bluetooth® v5.4***
USB
> Rear USB (Total 8 ports)
- 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 1 x USB 10Gbps ports (1 x Type-A)
- 3 x USB 5Gbps ports (3 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
> Front USB (Total 5 ports)
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
Audio
> Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
> Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
> 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
> 1 x USB 20Gbps port (1 x USB Type-C®)
> 1 x USB 10Gbps ports (1 x Type-A)
> 3 x USB 5Gbps ports (3 x Type-A)
> 2 x USB 2.0 ports (2 x Type-A)
> 1 x DisplayPort
> 1 x HDMI™ port
> 1 x Wi-Fi module
> 1 x Intel® 2.5Gb Ethernet port
> 2 x Audio jacks
> 1 x Optical S/PDIF out port
> 1 x Clear CMOS button
Form Factor
> Mini-ITX / 6.7 inch x 6.7 inch (17cm x 17cm)
