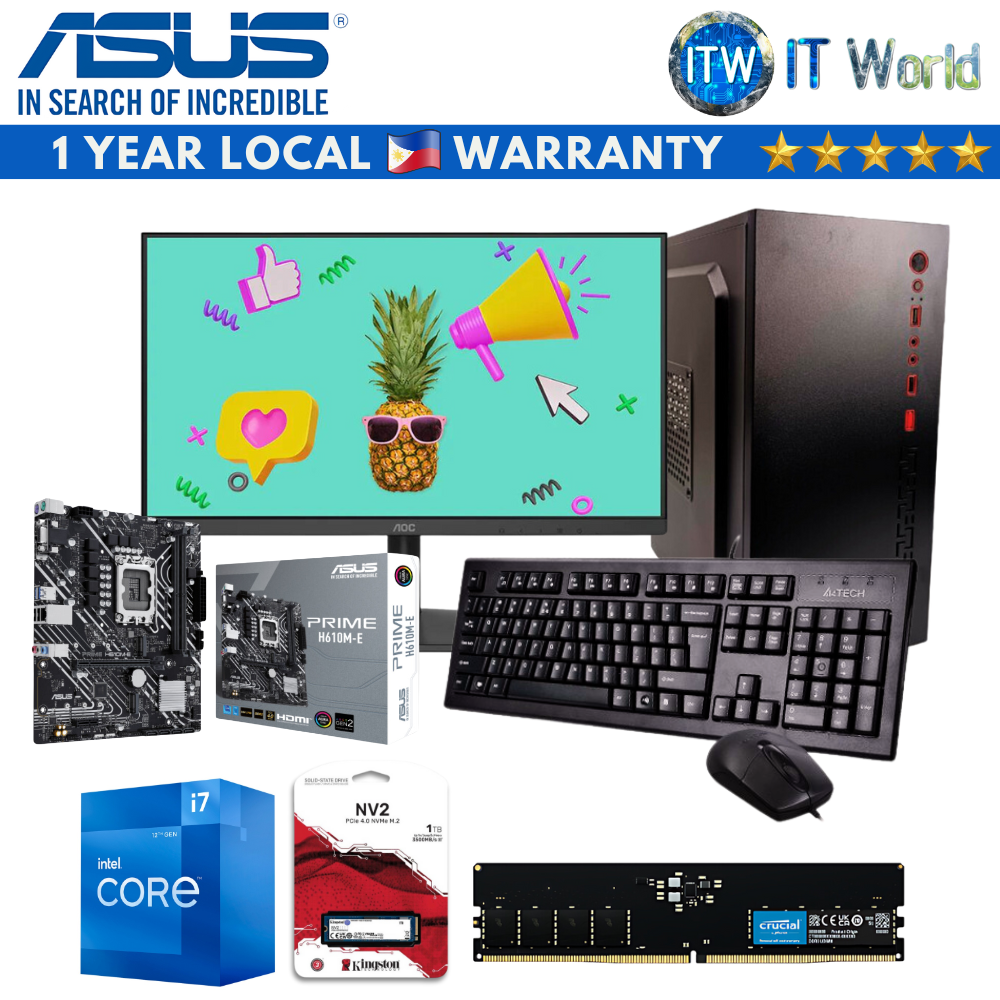

Product Name: ASUS Home and Office Use Desktop Computer Set Raze Build i7-12700 Prime H610M-E 16GB RAM
Processor
*** Intel Core i7-12700 - 25M Cache, up to 4.90 GHz Processor ***
Specification
• Processor Number: i7-12700
• Total Cores: 12
• # of Performance-cores: 8
• # of Efficient-cores: 4
• Total Threads: 20
• Max Turbo Frequency: 4.90 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency ‡: 4.90 GHz
• Performance-core Max Turbo Frequency: 4.80 GHz
• Efficient-core Max Turbo Frequency: 3.60 GHz
• Performance-core Base Frequency: 2.10 GHz
• Efficient-core Base Frequency: 1.60 GHz
• Cache: 25 MB Intel® Smart Cache
• Total L2 Cache: 12 MB
• Processor Base Power: 65 W
• Maximum Turbo Power: 180 W
---
Motherboard
*** Asus Prime H610M-E mATX LGA1700 DDR5 Motherboard ***
Specification
• CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
• Chipset
- Intel® H610 Chipset
• Memory
- 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
• Form Factor
- mATX Form Factor
- 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
---
RAM
*** Crucial RAM 16GB DDR5 4800MHz UDIMM CL40 Desktop Memory (CT16G48C40U5) ***
Specification
• Technology: DDR5
• Speed: DDR5-4800
• PC speed: PC5-38400
• Density: 16GB
• Module type: UDIMM
• DIMM type: Unbuffered
• CAS latency: 40
• Extended timings: 40-39-39
• Voltage: 1.1V
• Kit Qty: 1
---
SSD
*** Kingston NV2 1TB M.2 2280 PCIe4.0x4 NVMe SSD (SNV2S/1000G) ***
Specification
• Form Factor: M.2 2280
• Interface: PCIe 4.0 x4 NVMe
• Capacities: 1TB
• Sequential Read/Write: 1TB – 3,500/2,100MB/s
• Endurance (Total Bytes Written): 1TB – 320TB
• Storage Temperature: -40°C~85°C
• Operating Temperature: 0°C~70°C
• Dimensions: 22mm x 80mm x 2.2mm
• Weight: 7g (All capacities)
• Vibration Operating: 2.17G (7-800 Hz)
• Vibration Non-operating: 20G (20-1000Hz)
• MTBF: 1,500,000 hours
---
Monitor
*** AOC 22B2HM2 - 22" FHD(1920x1080) / 100Hz / VA / 4ms (GtG(BW)) / Monitor ***
Specification
• Panel: 21.45" (VA)
• Pixel Pitch (mm): 0.2493 (H) × 0.241 (V)
• Effective Viewing Area (mm): 478.66 (H) × 260.28 (V)
• Brightness (typical): 250 cd/m2
• Contrast Ratio: 3000 : 1 (Typical) 20 Million : 1 (DCR)
• Response Time: 4ms (GtG(BW))
• Viewing Angle: 178° (H) / 178° (V) (CR > 10)
• Color Gamut: NTSC 96% (CIE1976) / sRGB 116% (CIE1931)
• Optimum Resolution: 1920 × 1080 @ 100Hz
• Display Colors: 16.7 Million
• Signal Input: VGA × 1, HDMI 1.4 × 1
• USB Hub: no
• Power Supply: 19VDC, 1.31A
• Power Consumption (typical): 13W
• Speakers: no
• Wall-Mount: 100mm × 100mm
• Adjustable Stand Tilt: -5° ~ 20°
• Product without Stand (mm): 284.9 (H) × 492.2 (W) × 37.6 (D)
• Product with Stand (mm): 380 (H) × 492.2 (W) × 162.9 (D)
• Product without Stand (kg): 1.95
• Product with Stand (kg): 2.29
• Cabinet Color: Black
---
PC Case
*** CVS 1722 Computer Case with 750W PSU - 120mm Fan/Flat Cables/Black (M-ATX) ***
Specification
• Brand: CVS
• Case Type: Hard Case
• Model: CAS-CVS-1722-BK
• Size: 325x195x368 MM
• Form Factor: M-ATX
---
Mouse & Keyboard
*** A4Tech Krs-8572 Natural A Fn Desktop Keyboard And Mouse ***
Specification
• Keyboard: KRS-85
• Keycaps: A-Shape, Round Edge
• Hotkeys: 12 FN Multimedia Hotkeys
• Character: Laser Engraving
• Adjustable Keyboard Legs: Yes
• Rating: 5 V / 30 mA
• Dimension: 454 × 153 × 32 mm
• Weight: 585 g
• Cable Length: 150 cm
• Port: USB
• Mouse: OP-720
• Report Rate: 125 Hz
• Sensor: Optical
• Resolution: 1000 DPI
• Rating: 5 V / 100 mA
• Buttons No.: 3
• Ergonomic Design: Symmetric
• Size: Middle / Big Hands
• Dimension: 119 × 62 × 37 mm
• Weight: 86g
• Cable Length: 150 cm
• Port: USB or PS2
• System Requirements：Windows XP / Vista / 7 / 8 / 8.1 / 10
*** Reminders:
1. Take a video of yourself while unboxing the parcel. This would serve as proof if you have concerns with the parcel.
2. Ask the delivery rider to present a valid ID (e.g., driver’s license, UMID) and/or take a picture of the delivery rider with your payment.
