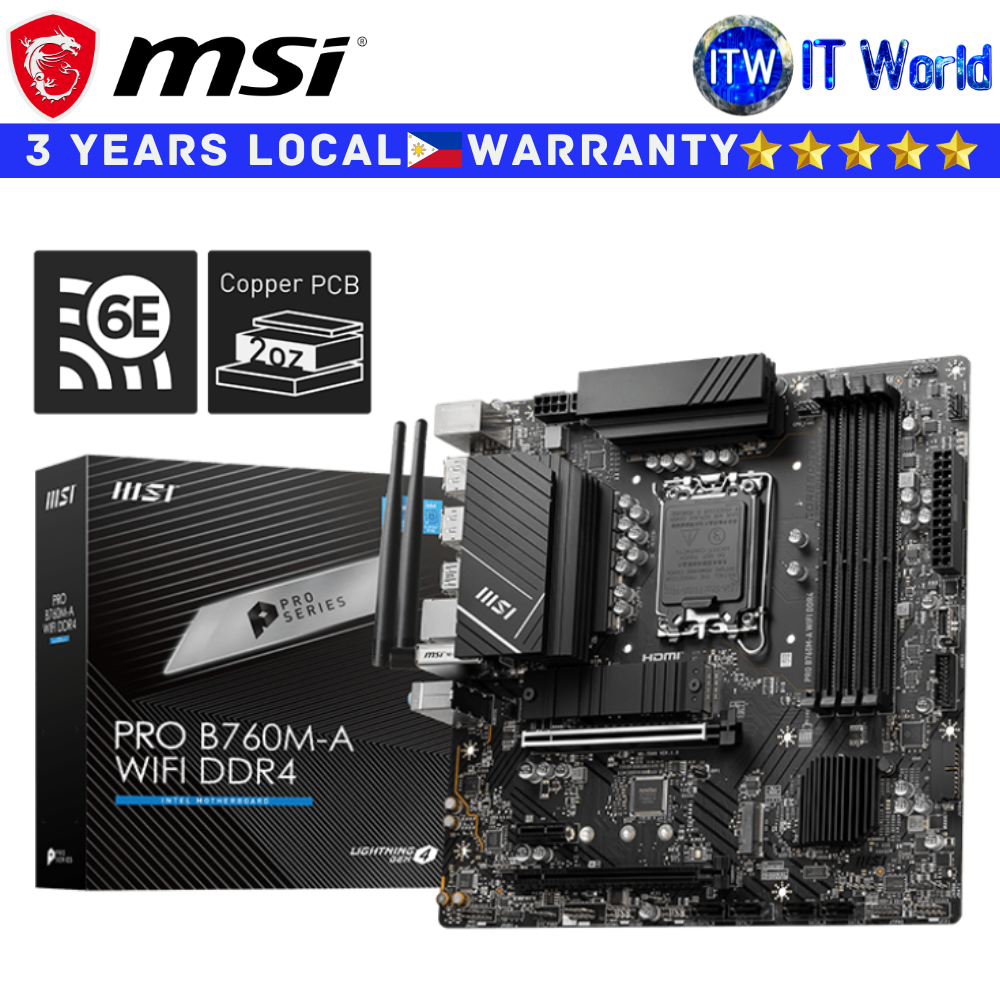

Product Name: Itw | MSI Motherboard Pro B760M-A Wifi DDR4 mATX LGA1700
PRO B760M-A WIFI DDR4
> Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
> Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
> Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
> Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
> High Quality PCB: 6-layer PCB made by 2oz thickened copper
> Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
> Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
> 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
> AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specification
Chipset
> INTEL B760
CPU
> Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
> LGA 1700
Memory
> 4x DDR4, Maximum Memory Capacity 128GB
> Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
> Max. overclocking frequency:
- 1DPC 1R Max speed up to 5333+ MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
> Supports Dual-Channel mode
> Supports non-ECC, un-buffered memory
> Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics
> 2x HDMI™
- Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
> 2x DisplayPort
- Support DP 1.4, maximum resolution of 4K 60Hz*
Slot
> 2x PCI-E x16 slot
> 1x PCI-E x1 slot
> PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
> PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
> PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
> Realtek® ALC897 Codec
> 7.1-Channel High Definition Audio
Storage
> 2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
> 4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
> Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
> 2x USB 2.0 (Rear)
> 4x USB 2.0 (Front)
> 2x USB 5Gbps Type A (Rear)
> 4x USB 5Gbps Type A (Front)
> 1x USB 5Gbps Type C (Front)
> 2x USB 10Gbps Type A (Rear)
LAN
> Realtek® RTL8125BG 2.5G LAN
Internal IO
> 1x Power Connector(ATX_PWR)
> 2x Power Connector(CPU_PWR)
> 1x CPU Fan
> 1x Pump Fan
> 2x System Fan
> 2x Front Panel (JFP)
> 1x Chassis Intrusion (JCI)
> 1x Front Audio (JAUD)
> 1x Com Port (JCOM)
> 2x Addressable V2 RGB LED connector (JARGB_V2)
> 1x RGB LED connector(JRGB)
> 1x TPM pin header(Support TPM 2.0)
> 4x USB 2.0 ports
> 4x USB 5Gbps Type A ports
> 1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH
> Intel® Wi-Fi 6E
> The Wireless module is pre-installed in the M.2 (Key-E) slot
> Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
> Supports 802.11 a/ b/ g/ n/ ac/ ax
> Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
BACK PANEL PORTS
> Keyboard / Mouse
> DisplayPort
> USB 3.2 Gen 1 5Gbps (Type-A)
> 2.5G LAN
> Wi-Fi / Bluetooth
> Audio Connectors
> USB 2.0
> HDMI™
> USB 3.2 Gen 2 10Gbps (Type-A)
PCB Info
> mATX / 243.84mm x 243.84mm
