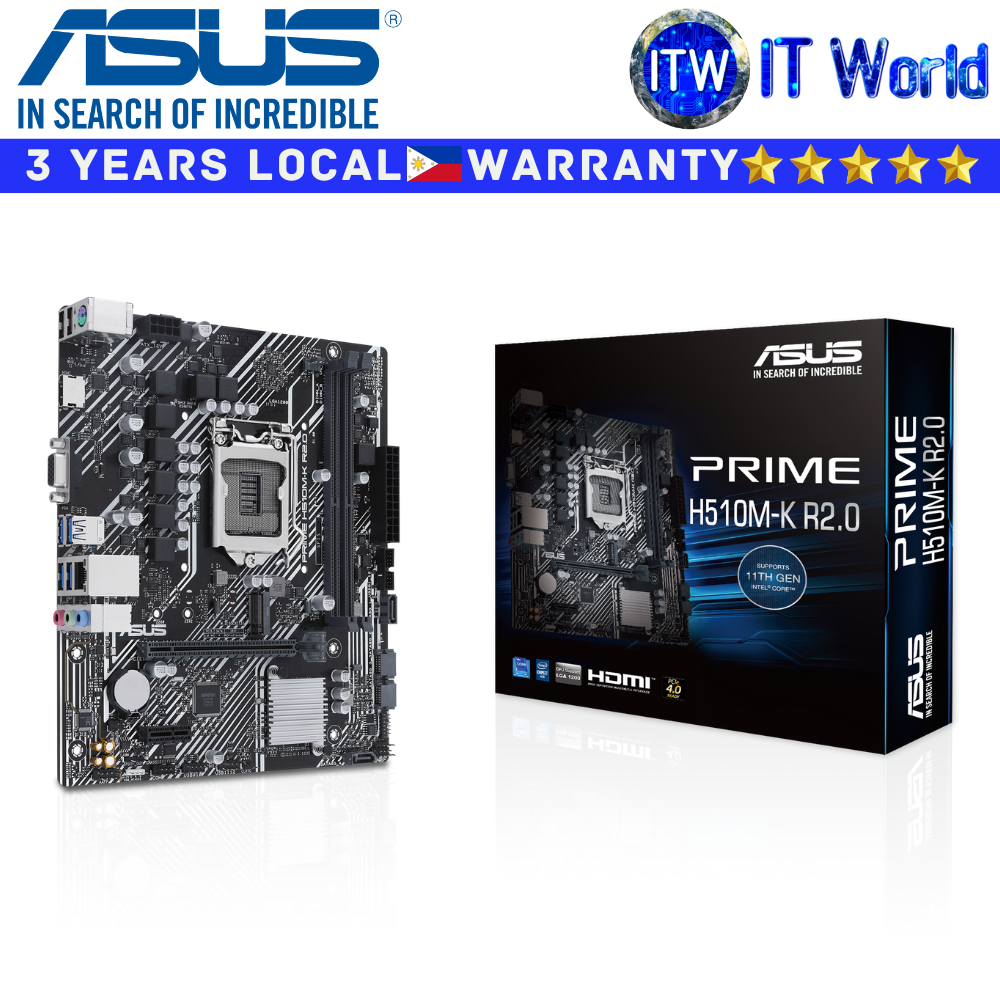

Product Name: Itw | ASUS Motherboard Prime H510M-K R2.0 microATX LGA1200 DDR4
Intel® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Intel® Optane Memory Ready, FAN Xpert, Armoury Crate, 5X PROTECTION III
> Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, 1 Gb Ethernet and USB 3.2 Gen 1
> Comprehensive cooling: PCH heatsink and Fan Xpert
> 5X Protection III: Multiple hardware safeguards for all-round protection
Specification
CPU
> Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
> Supports Intel® 14 nm CPU
> Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
> Intel® H470 Chipset
Memory
> 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
> Dual Channel Memory Architecture
> Supports Intel® Extreme Memory Profile (XMP)
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* 11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site.
Graphics
> 1 x VGA port
> 1 x HDMI™ port**
* Graphics specifications may vary between CPU types.
** Only Intel® 11th Gen processors support HDMI™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz.
Expansion Slots
> Intel® 11th & 10th Gen Processors*
> 1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
> Intel® H470 Chipset
- 1 x PCIe 3.0 x1 slot
Storage
> Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
> Intel® H470 Chipset
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
Ethernet
> 1 x Realtek 1Gb Ethernet
USB
> Rear USB (Total 6 ports)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
> Front USB (Total 6 ports)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
> Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
> Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
> 4 x USB 3.2 Gen 1 ports (4 x Type-A)
> 2 x USB 2.0 ports (2 x Type-A)
> 1 x VGA port
> 1 x HDMI™ port
> 1 x Realtek 1Gb Ethernet port
> 3 x Audio jacks
> 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
> Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
> Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
> Storage related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
> USB
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
> Miscellaneous
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Form Factor
> micro-ATX / 8.9 inch x 8.0 inch (22.6 cm x 20.3 cm)
