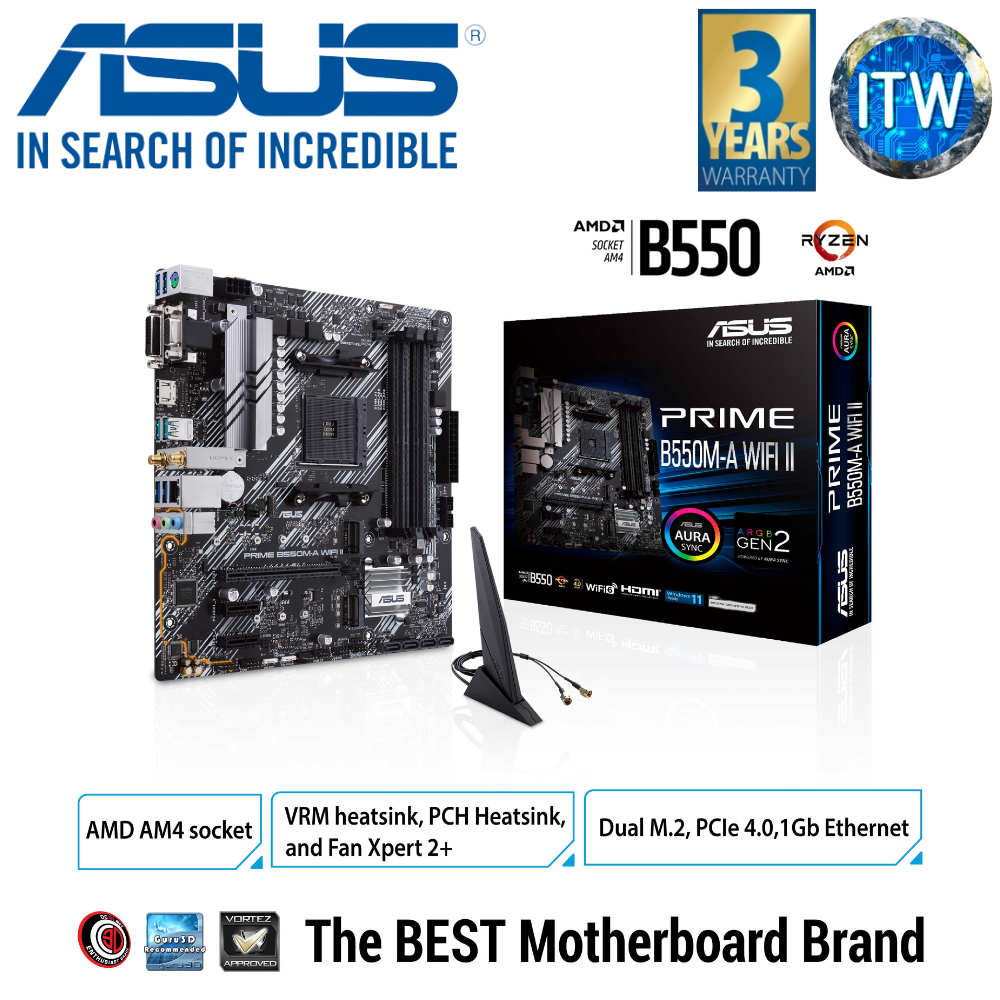

ASUS Prime B550M-A WiFi II AM4 Micro-ATX DDR4 Gaming Motherboard

https://itworldph.com/web/image/product.template/13864/image_1920?unique=59e2dc5

Php 6,199.00 6199.0 PHP Php 6,699.00

Php 6,699.00


    This combination does not exist.

    Add to Cart Buy Now


    100% Original
    Free Delivery
    30 Days Return

    Share this product:

    Product Name: ITW | ASUS Prime B550M-A WiFi II AM4 Micro-ATX DDR4 Gaming Motherboard

    AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, HDMI, DVI-D, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB lighting support

    ■ AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

    ■ Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility

    ■ Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support

    ■ Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware

    Specifications

    Model

    ✎ PRIME B550M-A WIFI II

    CPU

    ✎ AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

    Chipset

    ✎ B550

    Memory

    ✎ 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*

    ✎ Dual Channel Memory Architecture

    * ECC memory (ECC mode) support varies by CPU.

    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

    Graphics

    ✎ 1 x D-Sub port

    ✎ 1 x DVI-D port

    ✎ 1 x HDMI® port**

    * Graphics specifications may vary between CPU types.

    ** Supports 4K@60Hz as specified in HDMI 2.1.

    Expansion Slots

    ✎ AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

    ■ 1 x PCIe 4.0 x16 slot (supports x16 mode)

    ✎ AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors

    ■ 1 x PCIe 3.0 x16 slot (supports x16 mode)

    ✎ AMD B550 Chipset

    ■ 2 x PCIe 3.0 x1 slots

    Storage

    Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

    ✎ AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

    ■ M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

    ■ AMD Ryzen™ 4000 G-Series Desktop Processors

    ■ M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

    ✎ AMD B550 Chipset

    ■ M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

    ■ 4 x SATA 6Gb/s ports

    ■ Support RAID 0, 1, 10

    Ethernet

    ✎ 1 x Realtek 1Gb Ethernet

    ✎ ASUS LANGuard

    Wireless & Bluetooth

    ✎ 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2

    ✎ Wi-Fi 6

    ✎ 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

    ✎ Supports 2.4/5GHz frequency band

    ✎ Bluetooth v5.2

    USB

    ✎ Rear USB:Total 6 ports

    ■ 2 x USB 3.2 Gen 2 ports (2 x Type-A)

    ■ 4 x USB 3.2 Gen 1 ports (4 x Type-A)

    ✎ Front USB:Total 6 ports

    ■ 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    ■ 2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Audio

    ✎ Realtek 7.1 Surround Sound High Definition Audio CODEC*

    ■ Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    ■ Supports up to 24-Bit/192 kHz playback

    ✎ Audio Features

    ■ Audio Shielding

    ■ LED-illuminated audio trace path design

    ■ Premium audio capacitors

    ■ Dedicated audio PCB layers

    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

    Back Panel I/O Ports

    ✎ 2 x USB 3.2 Gen 2 ports (2 x Type-A)

    ✎ 4 x USB 3.2 Gen 1 ports (4 x Type-A)

    ✎ 1 x D-Sub port

    ✎ 1 x DVI-D port

    ✎ 1 x HDMI® port

    ✎ 1 x Wi-Fi Module

    ✎ 1 x Realtek 1Gb Ethernet port

    ✎ 3 x Audio jacks

    ✎ 1 x PS/2 Keyboard/Mouse combo port

    Operating System

    ✎ Windows® 11, Windows® 10 64-bit

    Form Factor

    ✎ microATX / 24.4cm x 24.4cm
