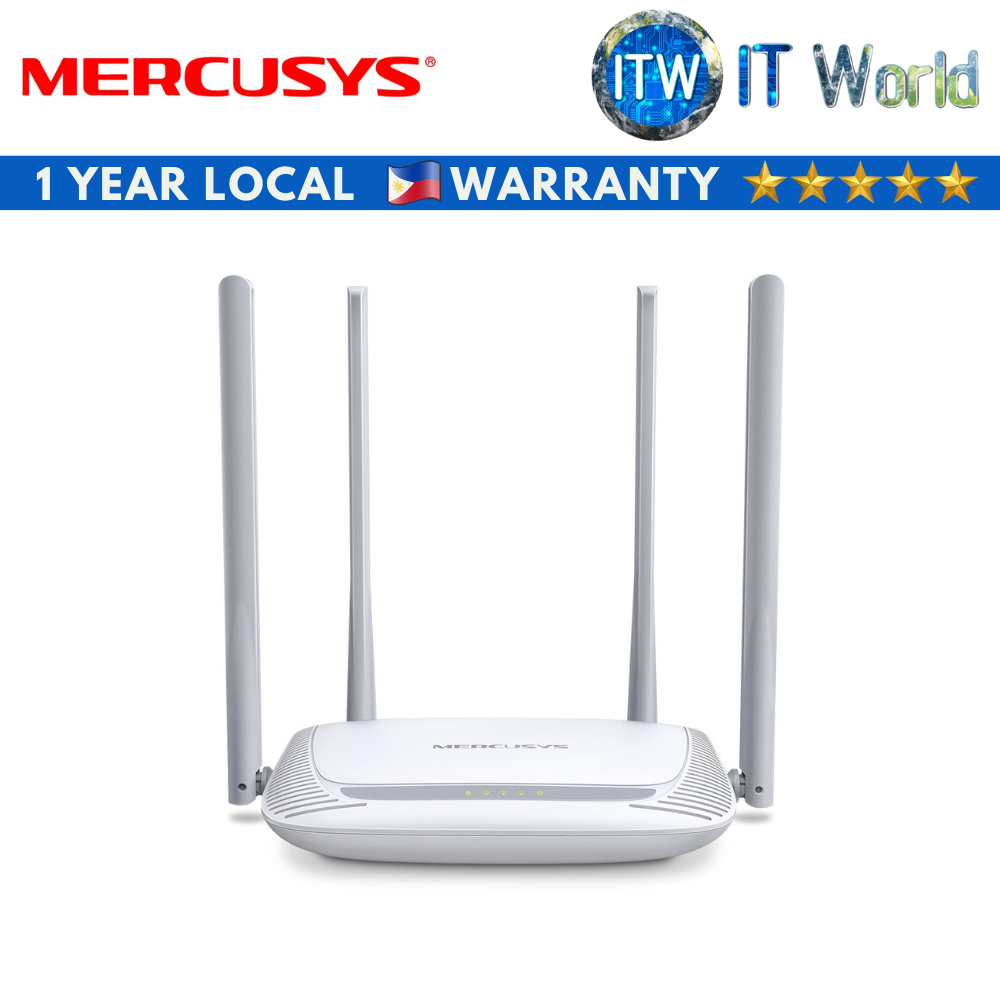

Product Name: Mercusys MW325R 300Mbps Enhanced Wireless N Router
Key Feature
* Great Coverage – four 5dBi antennas provide wide wireless coverage
* Enhanced Signal – high gain antennas dramatically increase wireless signal strength, size and stability
* 300Mbps Wireless Speed - ideal for HD streaming, online gaming, and large file downloads
* Easy Installation - intuitive webpage guides you through the setup process in minutes
Specification
Wireless
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.4 - 2.5GHz
WiFi Speeds:
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Reception Sensitivity:
270M: -70dBm@10% PER
130M: -72dBm@10% PER
54M: -74dBm@10% PER
11M: -87dBm@10% PER
6M: -92dBm@10% PER
1M: -94dBm@10% PER
Transmission Power: <20dBm
Wireless Security: WPA-PSK / WPA2-PSK
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge
Software
WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management:
Access control
Local management
Remote management
DHCP: Server, DHCP Client List
Port Forwarding: Virtual server, UPnP, DMZ
Dynamic DNS: Oray
Firewall Security: IP and MAC address binding
Protocols: IPv4
Guest Network: 2.4GHz guest network
Hardware
Dimensions: 167 x 118 x 33 mm
Interfaces:
3 10/100Mbps LAN ports
1 10/100Mbps WAN port
Button: Reset button
External Power Supply: 5VDC/0.6A
Antenna Type: 4 x 5dBi fixed omni directional antennas
Others
Certifications: CE, ROHS
Package Contents:
300Mbps Enhanced Wireless N Router
MW325R
Power adapter
Quick installation guide
RJ45 Ethernet cable
Environment :
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing
