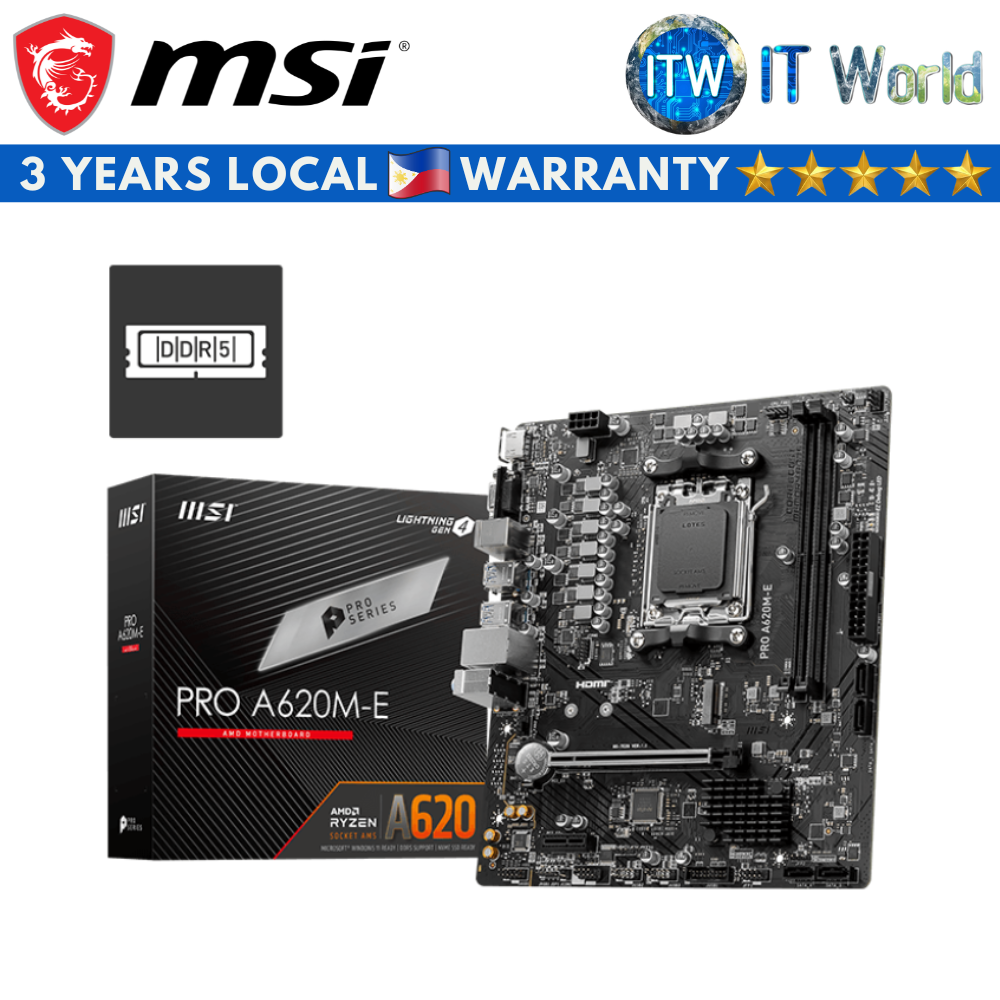

Product Name: ITW | MSI Pro A620M-E microATX AM5 DDR5 Motherboard
PRO A620M-E
■ Supports AMD Ryzen™ 7000 Series Desktop Processors
■ Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
■ Core Boost: With premium layout and digital power design to support more cores and provide better performance
■ Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
■ Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
■ AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
■ Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specification
CHIPSET
✎ AMD A620
CPU SUPPORT
✎ Supports AMD Ryzen™ 7000 Series Desktop Processors
✎ Socket AM5
MEMORY
✎ 2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
■ 1DPC 1R Max speed up to 6000+ MHz
■ 1DPC 2R Max speed up to 6000+ MHz
✎ Supports Dual-Channel mode
✎ Supports non-ECC, un-buffered memory
✎ Supports AMD EXPO
ONBOARD GRAPHICS
✎ 1x HDMI™
✎ Support HDMITM 2.1, maximum resolution of 4K 60Hz*
✎ 1x VGA
✎ Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
✎ 1x PCI-E x16 slot
✎ 1x PCI-E x1 slot
✎ PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
✎ PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE
✎ 1x M.2
✎ M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
✎ 4x SATA 6G
RAID
✎ Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
✎ 2x USB 2.0 (Rear)
✎ 4x USB 2.0 (Front)
✎ 4x USB 3.2 Gen1 Type A (Rear)
✎ 2x USB 3.2 Gen1 Type A (Front)
LAN
✎ Realtek® RTL8111H Gigabit LAN
AUDIO
✎ Realtek® ALC897 Codec
✎ 7.1-Channel High Definition Audio
INTERNAL I/O
✎ 1x Power Connector(ATX_PWR)
✎ 1x Power Connector(CPU_PWR)
✎ 1x CPU Fan
✎ 2x System Fan
✎ 2x Front Panel (JFP)
✎ 1x Chassis Intrusion (JCI)
✎ 1x Front Audio (JAUD)
✎ 1x Com Port (JCOM)
✎ 1x RGB LED connector(JRGB)
✎ 1x TPM pin header(Support TPM 2.0)
✎ 4x USB 2.0 ports
✎ 2x USB 3.2 Gen1 Type A ports
LED FEATURE
✎ 4x EZ Debug LED
BACK PANEL PORTS
✎ HDMI™
✎ VGA
✎ Keyboard/Mouse
✎ USB 3.2 Gen 1 5Gbps (Type-A)
✎ LAN port
✎ Audio connectors
✎ USB 2.0
OPERATING SYSTEM
✎ Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION (W × L)
✎ mATX / 211mmx243.84mm
