Product Name:

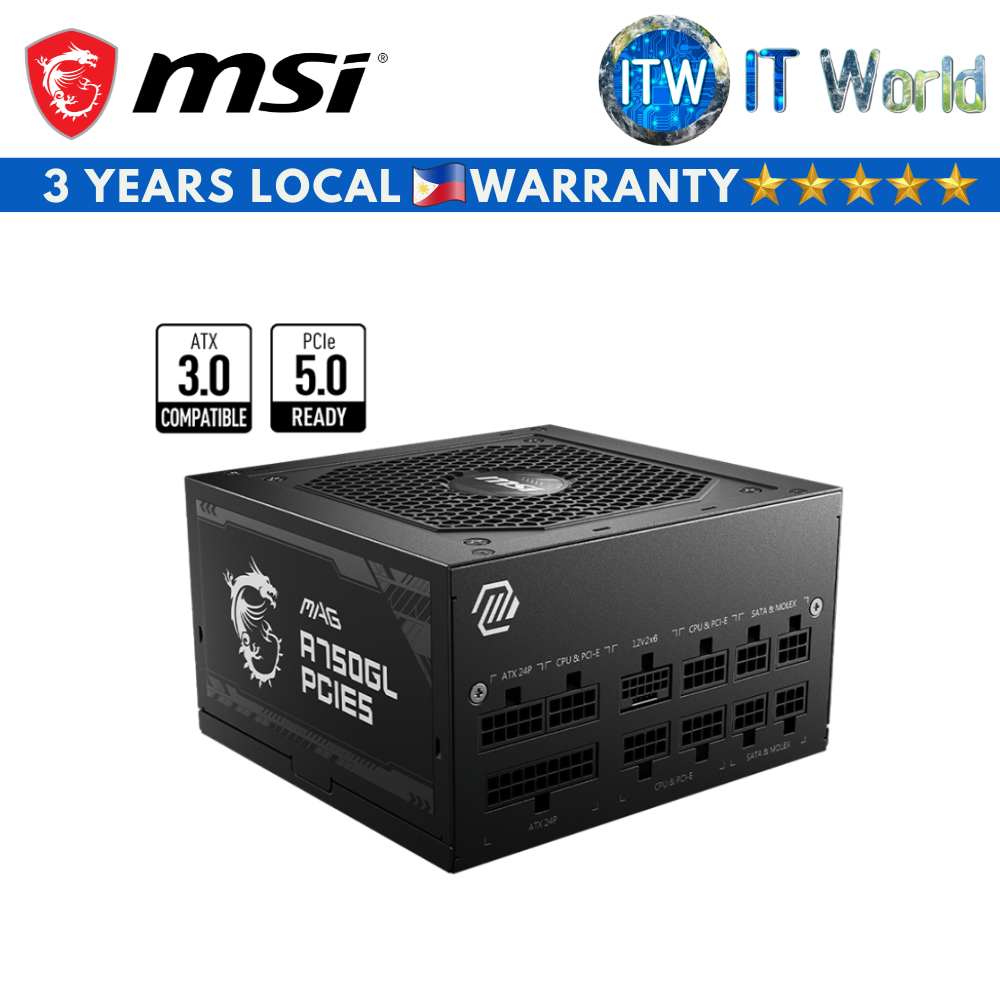

MSI PSU 750W Power Supply Unit 80+ Gold Modular MAG A750GL PCIE5
Key Feature
• ATX 3.0 compatible, native PCIe 5.0 connector
• Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
• Full modular design,Flat cables
• 80 Plus Gold certified for high efficiency
• Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
• 120mm Fluid Dynamic Bearing Fan
• LLC Full Bridge Topology with DC-DC module design
Specification
• EFFICIENCY RATING: 80 PLUS Gold (up to 90%)
• MODULAR: Yes (full modular)
• FAN SIZE: 120 mm
• FAN BEARING: Fluid Dynamic Bearing
• DIMENSIONS (DXWXH): 140 x 150 x 86 mm
• PFC TYPE: Active PFC
• INPUT VOLTAGE RANGE: 100~240 VAC
• POWER WATT: 750W
• POWER EXCURSION: 1500W (*up to 200% of the PSU's rated power for 100μs)
• INPUT FREQUENCY RANGE: 47-63Hz
• PROTECTION: OCP / OVP / OPP / OTP / SCP / UVP
• ATX (24 pin): 1
• EPS (4+4 pin): 2
• PCI-E 5.0 (16 pin): 1 (450W)
• PCI-E (6+2 pin): 3
• SATA (15 pin): 8
• MOLEX (4 pin): 4
• FDD (4 pin): 1
