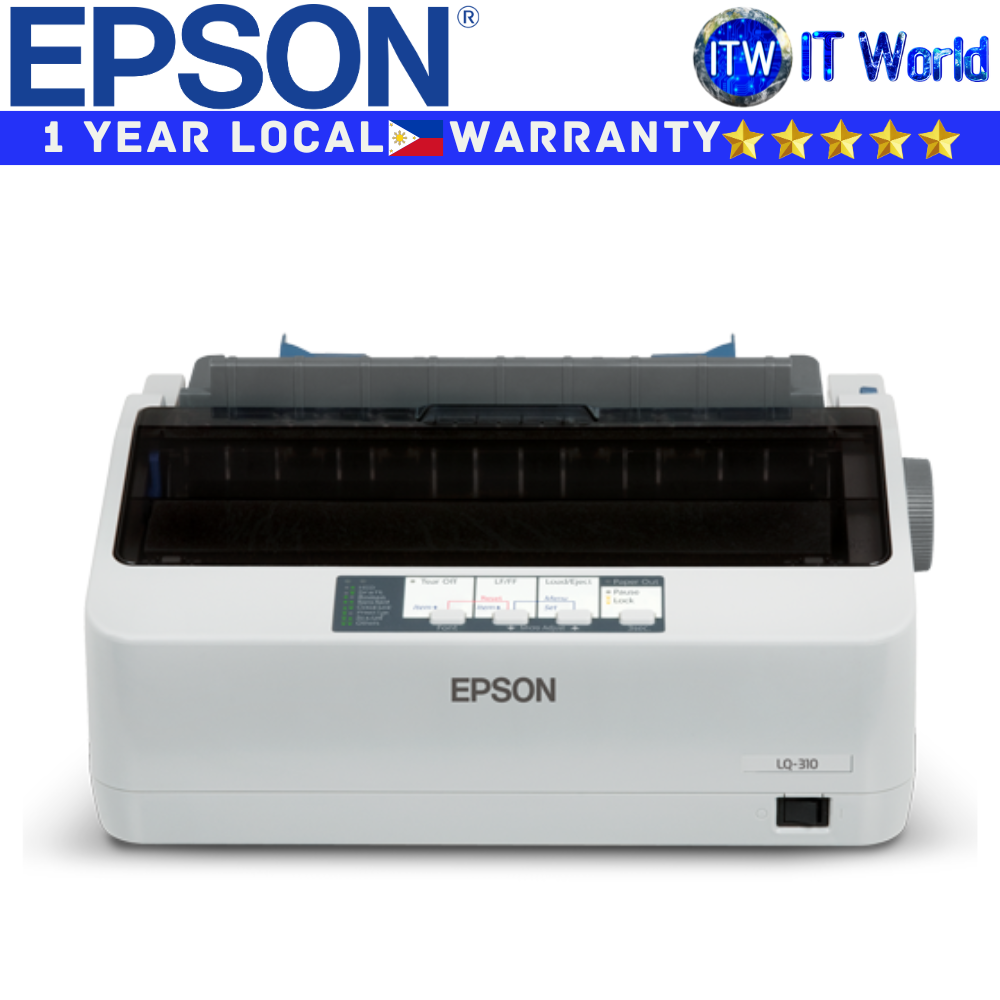

Product Name: Itw | Epson Printer LQ-310 Dot Matrix 24-Pin Narrow Carriage Impact
Your fast and affordable printing solution
> Narrow carriage 24-pin SIDM
> High 416 CPS print speed at 12CPI
> 10,000 power on hour MTBF
> USB, Serial and Parallel ports
Specification
Printing Technology
* Print Method: Impact dot matrix
* Control Panel: 4 switches and 5 LEDs
* Print Direction: Bi-direction with logic seeking
* Number of Pins in Head: 24 pins
* Control Code: ESC/P2 and IBM PPDS emulation
Print Speed
* High Speed Draft
> 10cpi: 347 cps
> 12cpi: 416 cps
* Draft
> 10cpi: 260 cps
> 12cpi: 312 cps
> 15cpi: 390 cps
> (Condensed) 17cpi: 222 cps
> (Condensed) 20cpi: 260 cps
* Letter Quality
> 10cpi: 86 cps
> 12cpi: 103 cps
> 15cpi: 129 cps
> (Condensed) 17cpi: 147 cps
> (Condensed) 20cpi: 172 cps
Reliability
* MTBF: Approx. 10,000 POH (25% Duty)
* Printhead Life: Approx. 400 million strokes/wire
* Mean Print Volume Between Failure (MVBF): Approx. 20 million lines (Except print head)
Print Characteristics
* Character Sets: Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
* Bitmap Fonts: Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proportional
* Scalable Fonts: Epson Roman, Epson San Serif, Epson Roman T & Epson San Serif H: 10.5pt., 8pt. - 32pt. (every 2pt.)
* Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet
Paper Path
* Manual Insertion: Rear in, Top out
* Push Tractor: Rear in, Top out
Paper Media
* Cut Sheet (Single Sheet):
> Length: 100 ~ 364 mm (3.9 ~ 14.3")
> Width: 100 ~ 257 mm (3.9 ~ 10.1")
> Thickness: 0.065 ~ 0.14 mm (0.0025 ~ 0.0055")
* Cut Sheet (Multi-part Forms):
> Length: 100 ~ 364 mm (3.9 ~ 14.3")
> Width: 100 ~ 257 mm (3.9 ~ 10.1")
> Thickness: 0.12 ~ 0.32 mm (0.0047 ~ 0.0126") (Total)
* Envelope (No.6):
> Length: 92 mm (3.6"), Width: 165 mm (6.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)
* Envelope (No.10):
> Length: 105 mm (4.1"), Width: 241 mm (9.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)
* Continuous Paper (Single Sheet):
> Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0")
> Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0")
> Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)
* Continuous Paper (Multi-part Forms):
> Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0")
> Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0")
> Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)
* Roll Paper: Width: 216 mm (8.5"), Thickness: 0.07 ~ 0.09 mm (0.0028 ~ 0.0035")
General
* Memory Buffer: 128KB
Supported OS and Applications
* Supported OS: Windows 95 / 98 / 2000 / Me /XP / Vista / 7 / 8 / 8.1 / 10
* Utility
> Epson Status Monitor 3: Microsoft® Windows® 2000 / XP / 7 / 8 / 8.1 / 10
> Epson Printer Setting: Microsoft® Windows® 2000 / XP / 7 / 8 / 8.1 / 10
Dimensions and Weight:
* Dimensions (W x D x H): 362 x 275 x 154 mm
* Weight: 4.1kg
Consumables
* Ribbon Cartridge Black: Approx. 2.5 million characters (LQ 10cpi, 48 dots/character) - C13S015639
Options
* Options: Fabric Ribbon Cartridge (Black) - S015634
Environmental Conditions (Operating)
* Temperature: 5 ~ 35°C
* Humidty: 10 ~ 80 % RH
Acoustic Noise
* Acoustic Noise: Approx. 53 dB(A) (ISO 7779 pattern)
* Interface
> Standard
- Bi-directional parallel interface (IEEE-1284 nibble mode supported)
- USB 2.0 Full-Speed
- Serial
