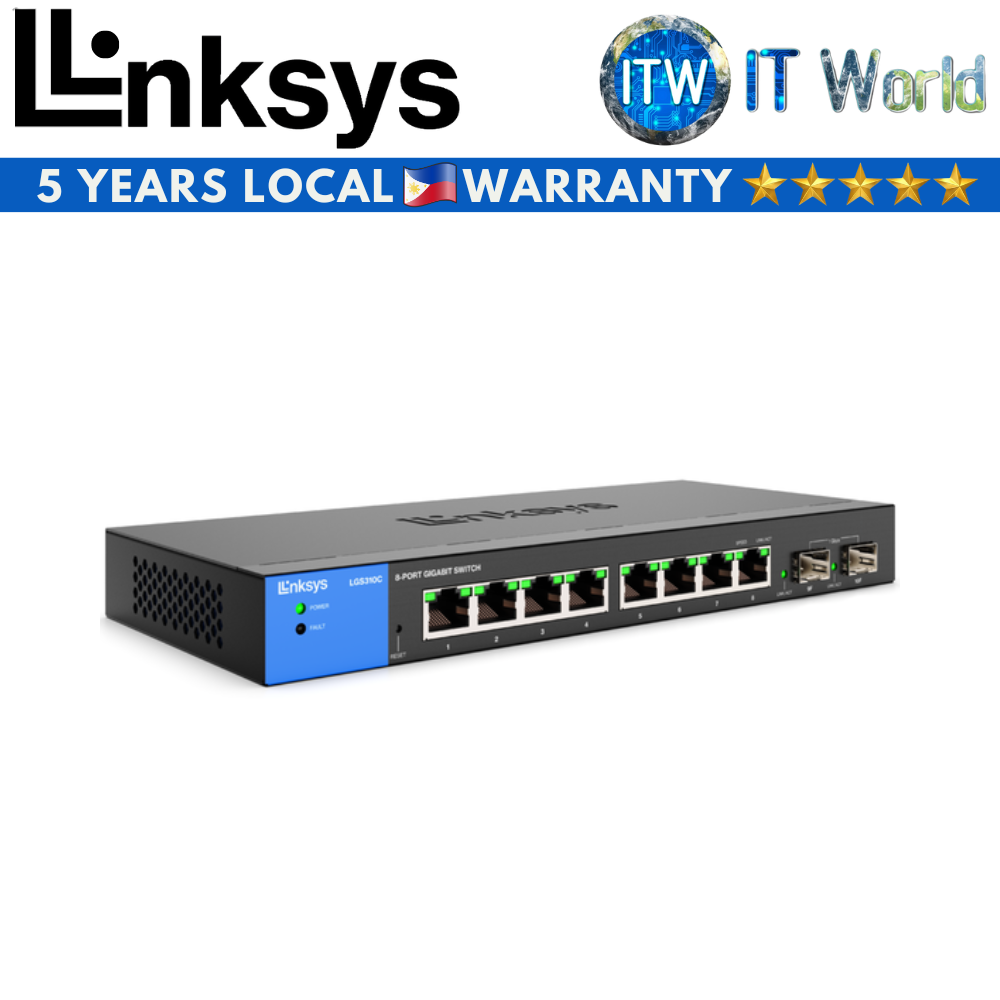

Product Name: Itw | Linksys LGS310C Business 8-Port Managed Gigabit Ethernet Switch 2 1G SFP
At a Glance
* Gigabit SFP Uplink Ports (2)
* Advanced Network Security and QoS
* TAA Compliant
Specification
Switch Type
* Managed
Switch Ports
* 8
Power Consumption
* 6.54W
Jumbo Frame (FE, GE)
* 8K
LEDs
* Power, Fault
VLAN
* Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
Memory
* 256MB
Forwarding Rate
* 14.88 Mpps
Dimensions (L x W x H)
* (9.45 x 4.13 x 1.06 in)
* 240 x 105 x 27 mm
Weight
* 609 g (1.34 lb)
Number of VLANs Supported
* 256 active VLANs (4,096 range)
Operating Humidity
* 10 to 90% RH
Operating Temperature
* 0 to 50°C (32 to 122°F)
Ports
* 2 Gigabit SFP
* 8 Gigabit Ethernet
Security Features
* 802.1x Radius authentication
* DHCP snooping
* DOS Attack Prevention
* IP-MAC binding
* Port Isolation (Protected Ports)
* Port Security (256 max entries per port)
Rate Limiting
* Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
Power Input
* 12V/1A
Spanning Tree
* IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)
Quality Of Service
* 8 hardware queues
* Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
* Strict, Weighted Round Robin (WRR)
Storage Temperature
* 0 to 50°C (32 to 122°F)
RMON
* Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
MAC Address Table Size
* 8K
Switching Capacity
* 20 Gbps
HOL Blocking Prevention
* Head of line (HOL) blocking prevention
Auto Voice VLAN
* Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
Other Management
* Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP
Link Aggregation
* IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
Access Control
* Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
Storm Control
* Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
Management Interface
* HTTP
* HTTPS
Routing
* Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)
SNMP
* Version 1
* Version 2c
* Version 3
Storage Humidity
* 5 to 95% RH (non-condensing)
IGMP Snooping
* IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
Power Saving
* EEE
Port Mirroring
* Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
Firmware Upgrade
* Web Browser (HTTP/HTTPS)
