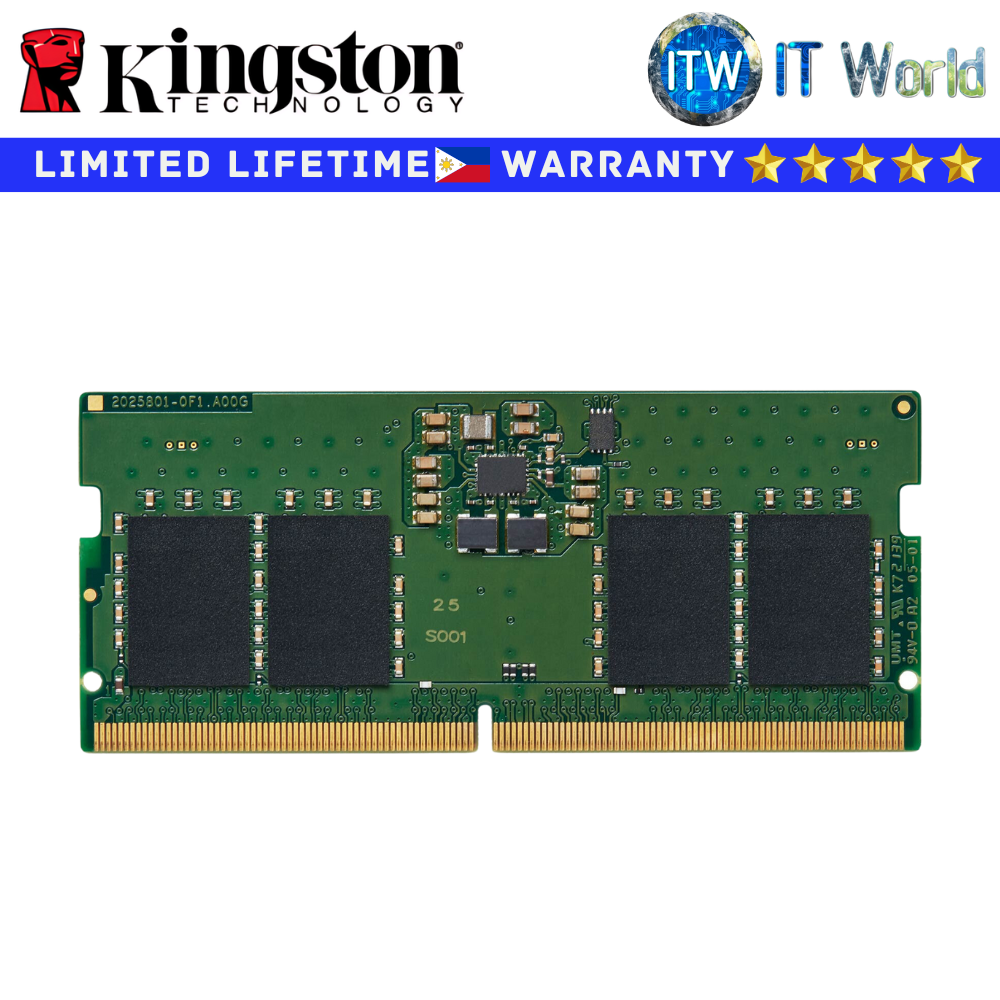

Product Name: Itw | Kingston DDR5 RAM 8GB (1Rx16) 4800MT/s Non-ECC Unbuffered SODIMM CL40 (KVR48S40BS6-8)
Overview
• This document describes ValueRAM's KVR48S40BS6-8 is a 1G x 64-bit (8GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Key Feature
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
Specification
• CL(IDD): 40 cycles
• Row Cycle Time (tRCmin): 48ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)
• Row Active Time (tRASmin): 32ns(min.)
• UL Rating: 94 V - 0
• Operating Temperature: 0°C to +85°C
• Storage Temperature: -55°C to +100°C
