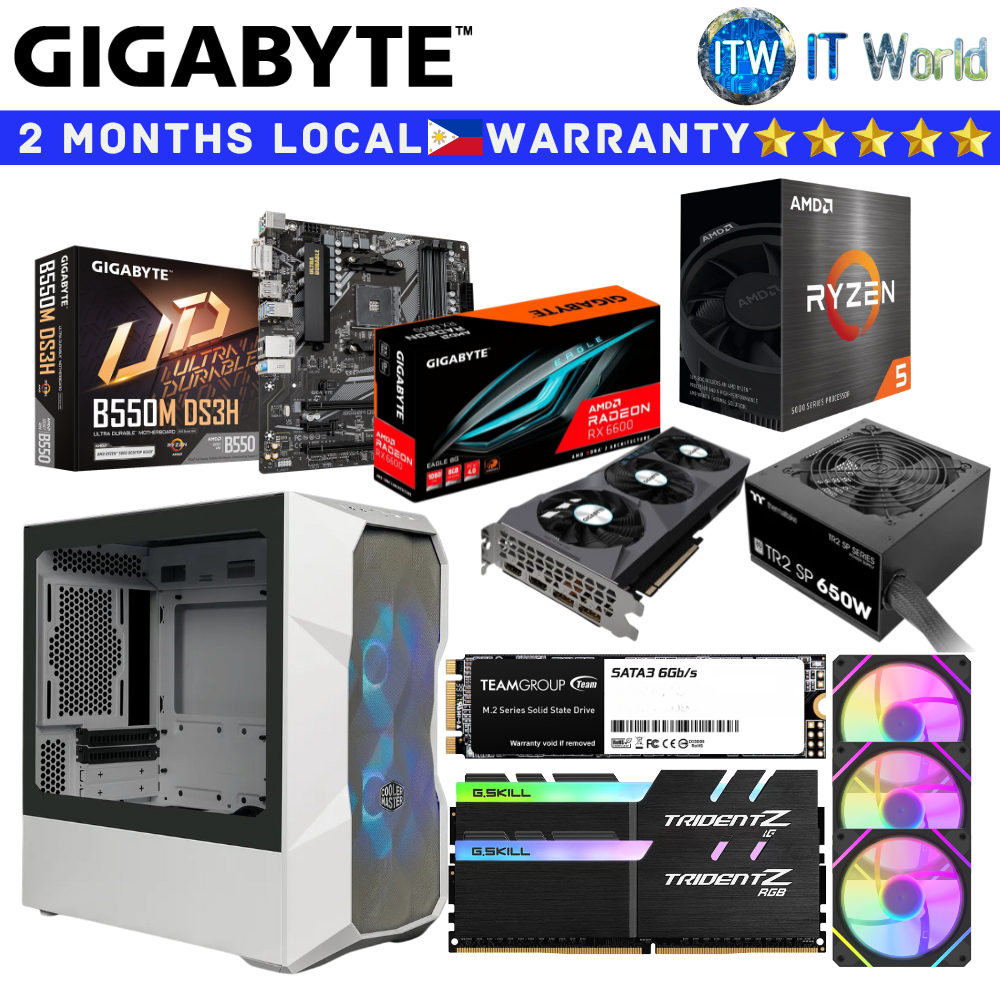

Product Name: PC Desktop Computer Build Gigabyte Horizon Build 5 5600X B550M DS3H rev 1.7 RX 6600 16GB RAM
* AMD Ryzen 5 5600X *
General
> # of CPU Cores: 6
> # of Threads: 12
> Max. Boost Clock: Up to 4.6GHz
> Base Clock: 3.7 GHz
> L2 Cache: 3 MB
> L3 Cache: 32 MB
> Default TDP: 65W
> Processor Technology for CPU Cores: TSMC 7nm FinFET
> Unlocked for Overclocking: Yes
> CPU Socket: AM4
> Thermal Solution (PIB): AMD Wraith Stealth
> Max. Operating Temperature (Tjmax): 95°C
> OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity
> PCI Express® Version: PCIe® 4.0
> System Memory Type: DDR4
> System Memory Specification: Up to 3200MT/s
* Gigabyte B550M DS3H (rev1.7) *
AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Realtek GbE LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus
> Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
> Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
> 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
> Ultra Durable™ PCIe 4.0 Ready x16 Slot
> Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
> High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
> Realtek GbE LAN with Bandwidth Management
> Rear HDMI & DVI Support
> RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
> Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
> Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
> Anti-Sulfur Resistors Design
* GV-R66EAGLE-8GD *
> Graphics Processing: Radeon™ RX 6600
> Core Clock
- Boost Clock: up to 2491MHz
- Game Clock: up to 2044MHz
> Stream Processors: 1792
> Memory Clock: 14000 MHz
> Memory Size: 8 GB
> Memory Type: GDDR6
> Memory Bus: 128 bit
> Memory Bandwidth (GB/sec): 224 GB/s
> Card Bus: PCI-E 4.0 x 8
> Digital max resolution: 7680 x 4320
> Multi-view: 4
> Card size: L=282 W=113 H=41 mm
> PCB Form: ATX
> DirectX: 12 Ultimate
> OpenGL: 4.6
> Recommended PSU: 500W
> Power Connectors: 8 pin*1
> Output
- DisplayPort 1.4a *2
- HDMI 2.1 *2
* TD300-WGNN-S00 *
> Exterior Color: White
> Materials - Body: Steel, Mesh, Plastic
> Materials - Side Panel: Tempered Glass
> Volume: 38.24L (incl. Protrusions)
> Motherboard Support: Mini-ITX, Micro-ATX
> Expansion Slots: 4
> 5.25" Drive Bays: N/A
> 2.5" / 3.5" Drive Bays (Combo): 2
> 2.5" Drive Bays: 2
> I/O Panel: 2x USB 3.2 Gen 1 (formerly USB 3.0)
> I/O Panel: 1x 3.5mm Audio Jack
> I/O Panel: 1x 3.5mm Mic Jack
> I/O Panel: 1x ARGB Hub
> Pre-installed Fans - Top: N/A
> Pre-installed Fans - Front: 2x 120mm CF120 ARGB Fan
> Pre-installed Fans - Rear: N/A
> Pre-installed Fans - Bottom: N/A
> Fan Support - Top: 2x 120mm / 2x 140mm
> Fan Support - Front: 3 x 120mm* / 2 x 140mm (*can only mount behind the front plate)
> Fan Support - Rear: 1x 120mm
> Radiator Support - Top: 120 / 140 / 240 / 280mm
> Radiator Support - Front: 120 / 140 / 240 / 280mm
> Clearance - CPU Cooler: 166mm
> Clearance - PSU: 325mm (w/o front radiator & drive cage), 140mm (drive cage in backmost position)
> Clearance - GFX: 344mm
> Cable Routing - Behind Motherboard Tray: 18-22mm
> Dust Filters: Front, Top, Bottom
> Power Supply Support: Bottom Mount, ATX
> Size: Mini Tower
> Series: MasterBox Series
* PS-TRS-0650NNSAWU-P *
General
> Model: TRS-650AH2NLW-T
> PFC: Active PFC
> Power Good Signal: 100-250 msec
> Hold-Up Time: > 17msec within 80% load
> Cooling System: 12cm FDB Fan
* F4-3600C18D-16GTZRX *
> Memory Type: DDR4
> Capacity: 16GB (8GBx2)
> Multi-Channel Kit: Dual Channel Kit
> OC Profile Support: Intel XMP 2.0
> Tested Speed (XMP): 3600 MT/s
> Tested Latency (XMP): 18-22-22-42
> Tested Voltage (XMP): 1.35V
> Registered/Unbuffered: Unbuffered
> Error Checking (ECC): Non-ECC
> SPD Speed (Default): 2133 MT/s
> SPD Voltage (Default): 1.20V
> Fan Included: No
> Features: Intel XMP 2.0 (Extreme Memory Profile) Ready
* MS30 512GB SSD (TM8PS7512G0C101) *
> Sequential Read: up to 530MB/s
> Sequential Write: 256TBW
> DRAM Cache: No
> Interface: SATA III 6Gb/s
> Voltage: DC +3.3V
> Operation Temperature: 0˚C ~ 70˚C
> Storage Temperature: -40˚C ~ 80˚C
> Weight: 10g
> Humidity: RH 90% under 40°C (operational)
> Vibration: 80Hz~2000Hz/20G
> Shock: 500 G, 2m/sec
> MTBF: 1,500,000 Hours
> Operating System
- System Requirements
~ Windows 11 / 10 / 8.1 / 8 / 7
~ Linux 2.6.33 or later
* Darkflash DM12F ARGB 3-in-1 Black *
> Fan Speed: 1200±10%RPM
> Noise Level: 21.5 dB(MAX.)
> Airflow: 38.3CFM
> Static Pressure: 1.55mm H²O
> MTTF: 30000hrs
