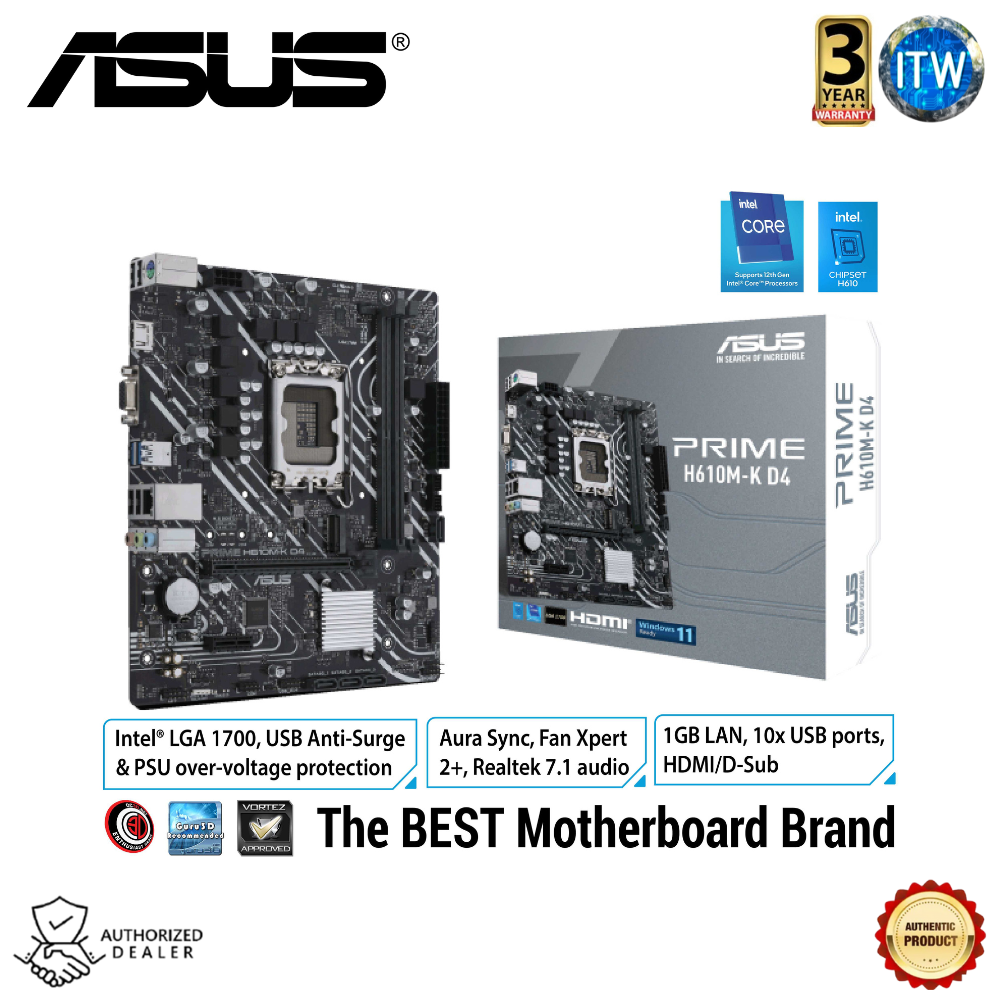

Asus Prime H610M-K DDR4 - Intel® H610 Chipset (LGA 1700) mic-ATX Motherboard

https://itworldph.com/web/image/product.template/8096/image_1920?unique=ae519d6

Php 4,999.00 4999.0 PHP Php 4,999.00

Php 5,199.00


    This combination does not exist.

    Add to Cart


    Share this product:

    Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header

    • Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
    • Comprehensive cooling: PCH heatsink and Fan Xpert
    • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
    • 5X Protection III: Multiple hardware safeguards for all-round protection

    SPECS:

    CPU

    Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

    * Refer to www.asus.com for CPU support list.

    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Intel® H610 Chipset

    Memory

    2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

    Dual Channel Memory Architecture

    Supports Intel® Extreme Memory Profile (XMP)

    * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

    Graphics

    1 x D-Sub port

    1 x HDMI® port**

    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

    ** Supports 4K@60Hz as specified in HDMI 2.1.

    Expansion Slots

    Intel® 12th Gen Processors

    1 x PCIe 4.0 x16 slot

    Intel® H610 Chipset

    1 x PCIe 3.0 x1 slot

    Storage

    Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

    Intel® H610 Chipset

    M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

    4 x SATA 6Gb/s ports

    * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

    Ethernet

    1 x Realtek 1Gb Ethernet

    USB

    Rear USB (Total 6 ports)

    2 x USB 3.2 Gen 1 ports (2 x Type-A)

    4 x USB 2.0 ports (4 x Type-A)

    Front USB (Total 4 ports)

    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    1 x USB 2.0 header supports additional 2 USB 2.0 ports

    Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC*

    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    - Supports up to 24-Bit/192 kHz playback

    Audio Features

    - Audio Shielding

    - Dedicated audio PCB layers

    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

    Back Panel I/O Ports

    2 x USB 3.2 Gen 1 ports (2 x Type-A)

    4 x USB 2.0 ports (4 x Type-A)

    1 x D-Sub port

    1 x HDMI® port

    1 x Realtek 1Gb Ethernet port

    3 x Audio jacks

    1 x PS/2 Keyboard/Mouse combo port

    Internal I/O Connectors

    Fan and Cooling related

    1 x 4-pin CPU Fan header

    1 x 4-pin Chassis Fan header

    Power related

    1 x 24-pin Main Power connector

    1 x 8-pin +12V Power connector

    Storage related

    1 x M.2 slot (Key M)

    4 x SATA 6Gb/s ports

    USB

    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    1 x USB 2.0 header supports additional 2 USB 2.0 ports

    Miscellaneous

    1 x RGB header

    1 x Clear CMOS header

    1 x COM Port header

    1 x Front Panel Audio header (AAFP)

    1 x S/PDIF Out header

    1 x Speaker header

    1 x SPI TPM header (14-1pin)

    1 x 10-1 pin System Panel header

    Special Features

    ASUS 5X PROTECTION III

    - DIGI+ VRM

    - LANGuard

    - Overvoltage Protection

    - SafeSlot Core

    - Stainless-Steel Back I/O

    ASUS Q-Design

    - Q-DIMM

    - Q-Slot

    ASUS Thermal Solution

    - Aluminum heatsink design

    ASUS Lighting Control

    - RGB header

    Software Features

    ASUS Exclusive Software

    Armoury Crate

    AI Suite 3

    - Performance And Power Saving Utility

    TurboV EVO

    EPU

    DIGI+ VRM

    Fan Xpert

    ASUS CPU-Z

    Norton Anti-virus software (Free Trial version)

    WinRAR

    UEFI BIOS

    ASUS EZ DIY

    - ASUS CrashFree BIOS 3

    - ASUS EZ Flash 3

    - ASUS UEFI BIOS EZ Mode

    BIOS

    128 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables

    2 x SATA 6Gb/s cables

    Miscellaneous

    1 x I/O Shield

    1 x M.2 ANCHOR

    Installation Media

    1 x Support DVD

    Documentation

    1 x User Guide

    Operating System

    Windows® 11 64-bit, Windows® 10 64-bit

    Form Factor

    mATX Form Factor

    9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
