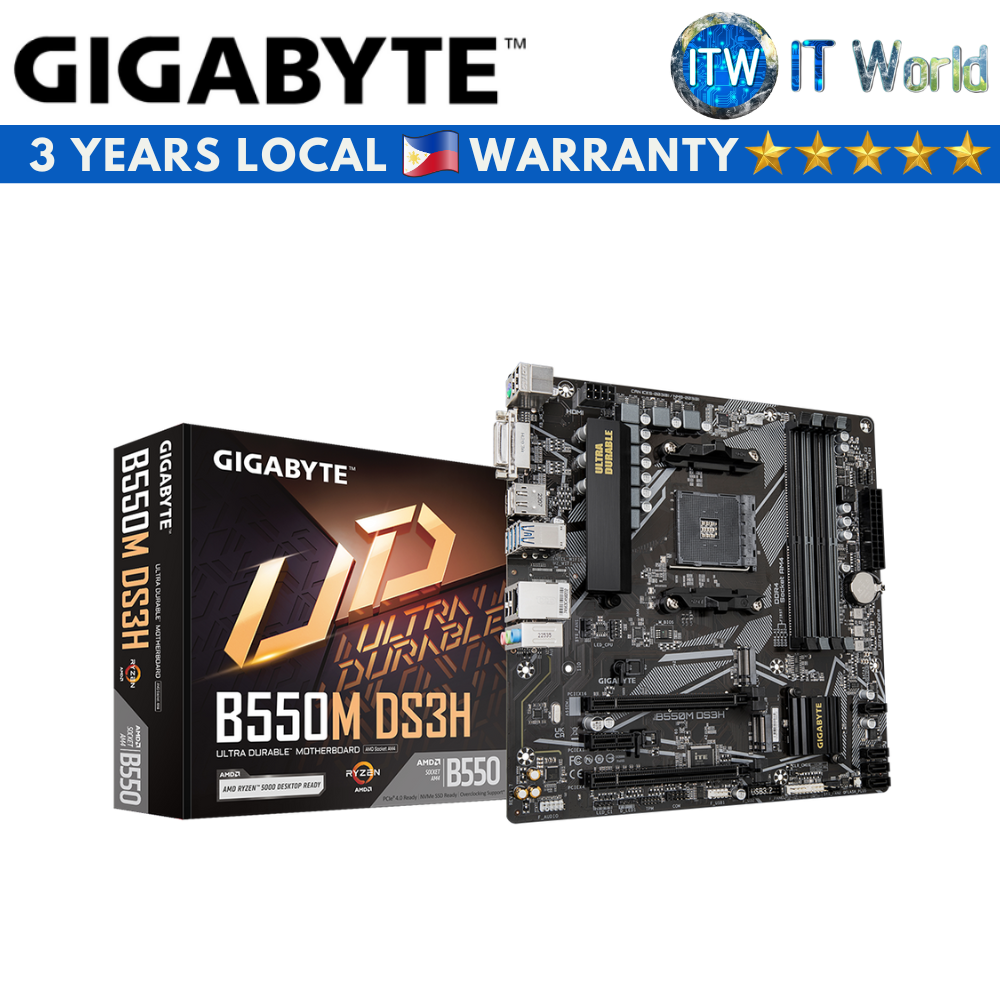

Product Name: Itw | Gigabyte B550M DS3H micro-ATX AM4 DDR4 Motherboard (rev. 1.7)
AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Realtek GbE LAN, Smart Fan 6 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus
* Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
* Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
* 6+2 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
* Ultra Durable™ PCIe 4.0 Ready x16 Slot
* Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
* High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
* Realtek GbE LAN with Bandwidth Management
* Rear HDMI, DVI, and DisplayPort Support
* RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
* Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
* Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
* Anti-Sulfur Resistors Design
Specification
CPU
- AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
Chipset
- AMD B550
Memory
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
- Support for up to 3 displays at the same time
- Maximum shared memory of 16 GB
Audio
- Realtek® ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
- AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
- Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280/22110 SSDs
* AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
* AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
- 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs
* Supporting SATA and PCIe 3.0 x2 SSDs
- 4 x SATA 6Gb/s connectors, integrated in the Chipset
- Support for RAID 0, RAID 1, and RAID 10
USB
- CPU
* 4 x USB 3.2 Gen 1 ports on the back panel
- Chipset
* 2 x USB 3.2 Gen 1 ports available through the internal USB header
* 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x DVI-D port
- 1 x DisplayPort
- 1 x HDMI port
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
