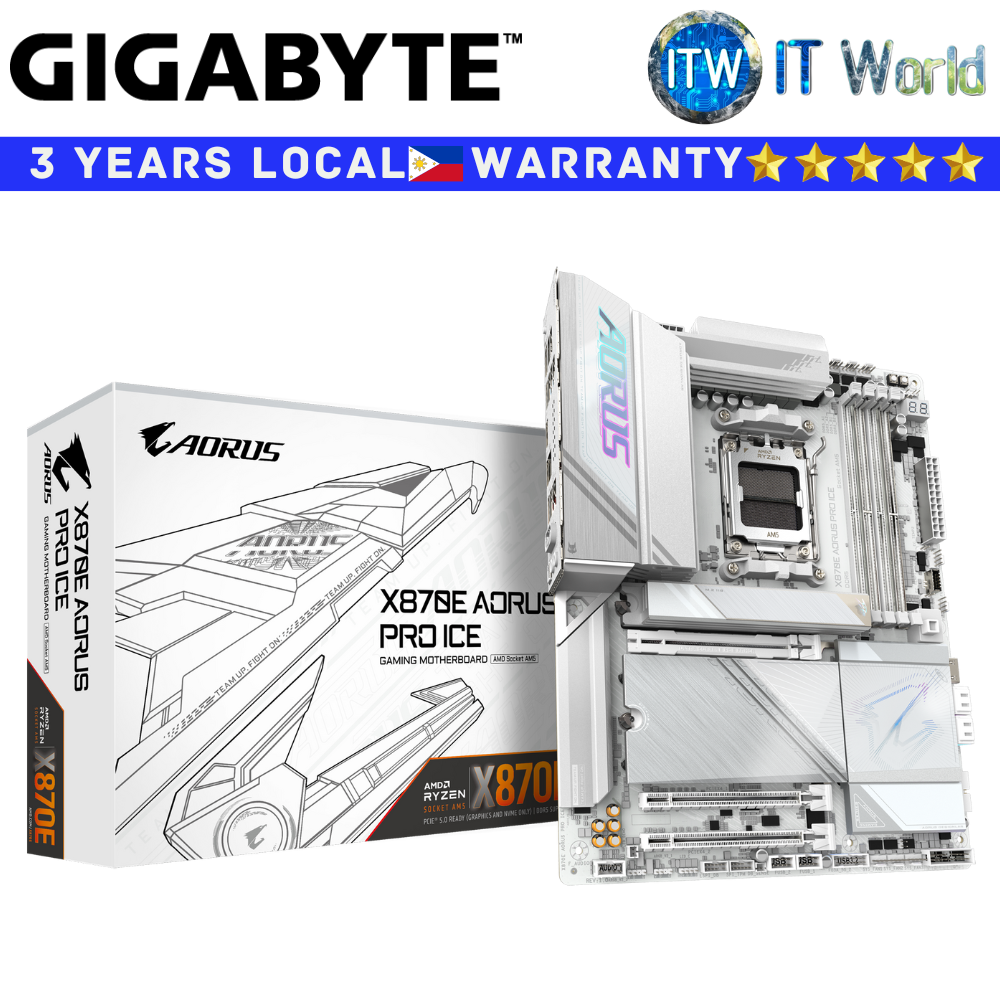

Product Name: Itw | Gigabyte Motherboard X870E Aorus Pro Ice ATX AM5 DDR5
Key Features
> AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000/ 7000 Series Processors
> Digital twin 16+2+2 phases VRM solution
> Dual Channel DDR5: 4*DIMMs with AMD EXPO™Memory Module Support
> WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
> EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
> EZ-Latch Click: M.2 heatsinks with screwless design
> Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
> Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
> New Power Monitor in HWinfo for real-time monitoring on CPU power phases
> Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
> Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
> Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
> Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
> Reliable Audio: Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
> Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability.
> PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
Specification
CPU
> AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors
Chipset
> AMD X870E
Memory
> Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
> Dual channel memory architecture
> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Audio
> Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
> High Definition Audio
> 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure
> 7.1-channel audio, access the audio software for audio settings.
> Support for S/PDIF Out
LAN
> Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
> Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots
> 1x PCI Express x16 slot (PCIEX16), integrated in the CPU:
> AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
> When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
> Chipset
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
USB
> CPU+ASMedia USB4® controller: 2 x USB4® USB Type-C® ports on the back panel
> CPU: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
> Chipset
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Back Panel Connectors
> 1 x Q-Flash Plus button
> 2 x USB 2.0/1.1 ports
> 1 x HDMI port (Note)
> 4 x USB 3.2 Gen 1 ports
> 2 x USB4® USB Type-C® port (DisplayPort (Note))
> 3 x USB 3.2 Gen 2 Type-A ports (red)
> 1 x RJ-45 port
> 2 x antenna connectors (2T2R)
> 1 x optical S/PDIF Out connector
> 2 x audio jacks
Form Factor
> ATX; 30.5cm x 24.4cm
