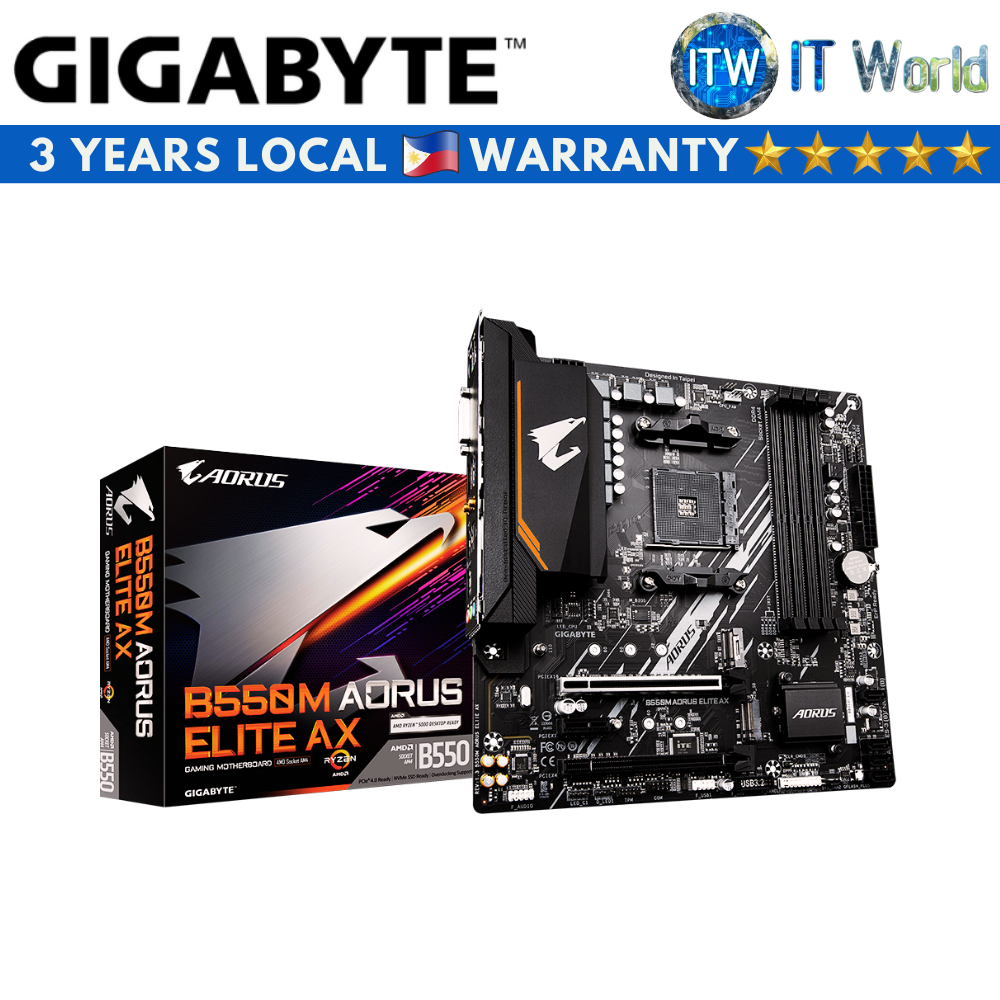

Gigabyte B550M Aorus Elite AX microATX AM4 DDR4 Motherboard (GA-B550M-AORUS-ELITE-AX)

https://itworldph.com/web/image/product.template/22342/image_1920?unique=ab0ad4a

Php 7,849.00 7849.0 PHP Php 8,899.00

Php 8,899.00


    This combination does not exist.

    Add to Cart Buy Now


    100% Original
    Free Delivery
    30 Days Return

    Share this product:

    Product Name: Itw | Gigabyte B550M Aorus Elite AX microATX AM4 DDR4 Motherboard (GA-B550M-AORUS-ELITE-AX)

    Key Features

    - Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

    - Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

    - 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

    - Ultra Durable™ PCIe 4.0 Ready x16 Slot

    - Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors

    - Onboard Wi-Fi 6E 802.11ax & BT 5.3

    - High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality

    - Realtek GbE LAN with Bandwidth Management

    - Rear HDMI & DVI Support

    - RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

    - Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

    - Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

    - Anti-Sulfur Resistors Design

    Specification

    CPU

    - AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

    Chipset

    - AMD B550

    Memory

    - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    - Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

    - Dual channel memory architecture

    - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

    * ECC memory (ECC mode) support varies by CPU

    - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    - Support for Extreme Memory Profile (XMP) memory modules

    Onboard Graphics

    ~Integrated in the AMD Ryzen™ 5000 G-Series/4000 G-Series Processors:

    - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

    * The DVI-D port does not support D-Sub connection by adapter.

    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Maximum shared memory of 16 GB

    Audio

    - Realtek® Audio CODEC

    - High Definition Audio

    - 2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    LAN

    - Realtek® GbE LAN chip (1 Gbps/100 Mbps)

    Wireless Communication module

    ~ Realtek® Wi-Fi 6E RTL8852CE

    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

    - BLUETOOTH 5.3

    - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    Expansion Slots

    ~ 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    - AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode

    * Actual support may vary by AMD CPU's specification.

    - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode

    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    - 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

    * Supporting PCIe 3.0 x4 mode

    - 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:

    * Supporting PCIe 3.0 x1 mode

    Storage Interface

    ~ 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs

    - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

    - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

    ~ 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs

    ~ 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10

    USB

    ~ CPU: 4 x USB 3.2 Gen 1 ports on the back panel

    ~ Chipset

    - 2 x USB 3.2 Gen 1 ports available through the internal USB header

    - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

    Back Panel Connectors

    - 1 x PS/2 keyboard/mouse port

    - 1 x DVI-D port

    - 1 x HDMI port

    - 2 x SMA antenna connectors (2T2R)

    - 4 x USB 3.2 Gen 1 ports

    - 4 x USB 2.0/1.1 ports

    - 1 x RJ-45 port

    - 3 x audio jacks

    Form Factor

    - Micro ATX; 24.4cm x 24.4cm
