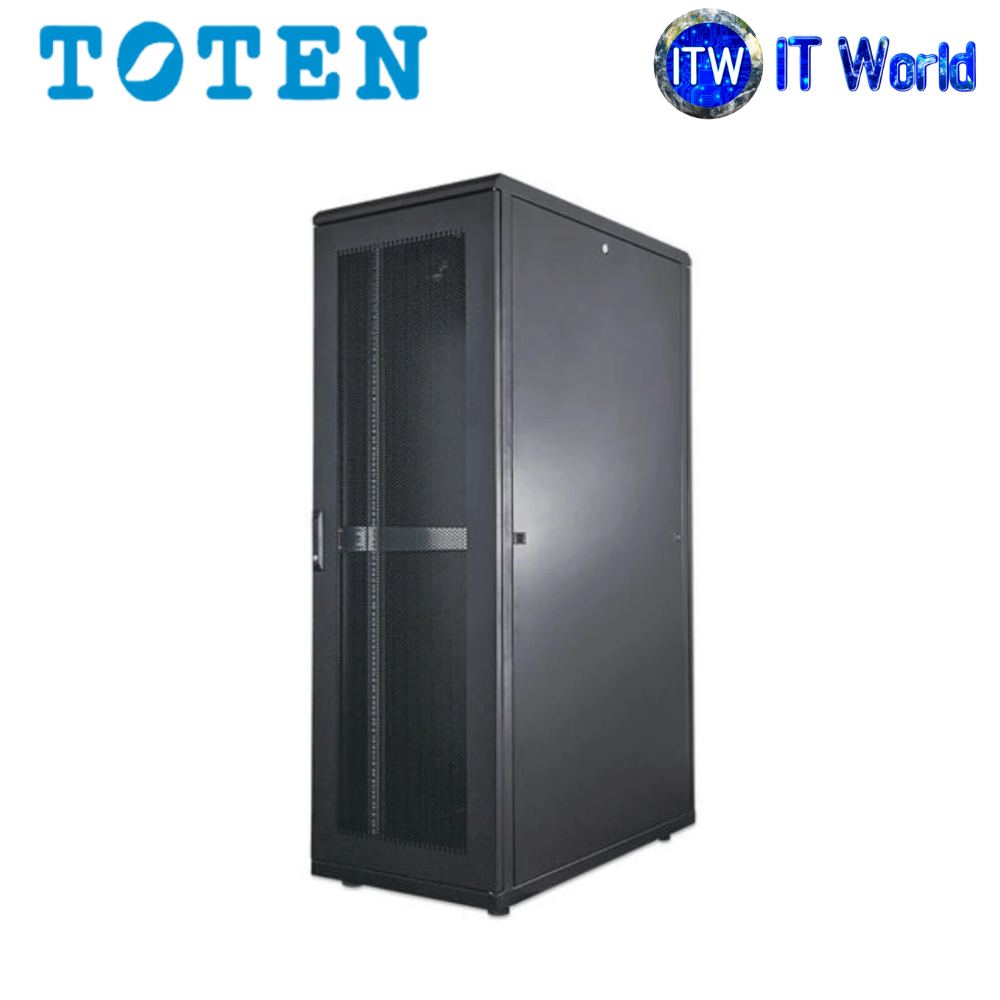

TOTEN Professional 42U Network Rack Cabinet – 19″, Server, Equipment Rack/Enclosure (G3.8042.9801)

Description

TOTEN Professional 42U Server Rack / Equipment Rack / Cabinet / Enclosure – 42U, 19″ (W800 x D1000 x H2055mm) G3.8042.9801. with Split Door’s

Standard Scope of Supply

• Full Vented Top Frame with Front / Rear / Side Cable Entrance
• 6 x 4-inch Top Fan Tray with Guard & Filter (Low Noise)
• 2 x Lift Off Type Side Door with Quick Release Catch & Cam Lock
• 1 x Perforated (75%) Arc-Fold Front Door with Swing Handle Lock (Hexagon Honey-Comb)
• 1 x Double-section Full Perforation Rear Door with Swing Handle Lock (Hexagon Honey-Comb)
• 2 x Front Cable management c/w Cable Ring
• 1 x Vertical Cable Tray
• 1 x Set Panel Mount Support
• 4 x Panel Mount with Unit Indication & Silk Screen Numbering
• 1 x Base Frame with Provision of Cable Entrance
• 1 x Set of Heavy Duty Castor Wheels
• 1 x Set of Leveling Stand
• 2 x Vented Equipment Fixed Tray
• 1 Packet of M6 Cage Nuts Assembly (50pcs)
• Finish with Epoxy Powder Coating (RAL 9004 Black)

Features

• Installation Ready – includes trays, power strip, ventilation fan tray & cagenuts assembly
• Robust main frame construction with multiple bendings
• Front Perforated Arc Door for Maximum ventilation
• Full 75% Honeycomb double-section perforation Rear Door for maximised ventilation
• Easy removable Front/ Rear/ Side doors, allowing access at all lateral sides
• Hassle-free side-by-side racks-baying feature
• Modular cable-entry removable plates for various requirements at Top & Bottom Panels
• Up to IP20 protection
• Load rating at 800kg
• Various doors & panels options
• Colour- Fully powder coated (RAL9004 Black)

Materials

• SPCC Cold Rolled Steel
• Thickness: Mounting Profile 2.0mm, 19-inch Panel Mounting 1.5mm, Others 1.2mm

Compliance:• Comply with ANSI/EIA RS-310-D, IEC297-2, DIN 41491; PART 1 DIN 41494; PART 7, GB/T 3047.2-92, ETSI Standard.
