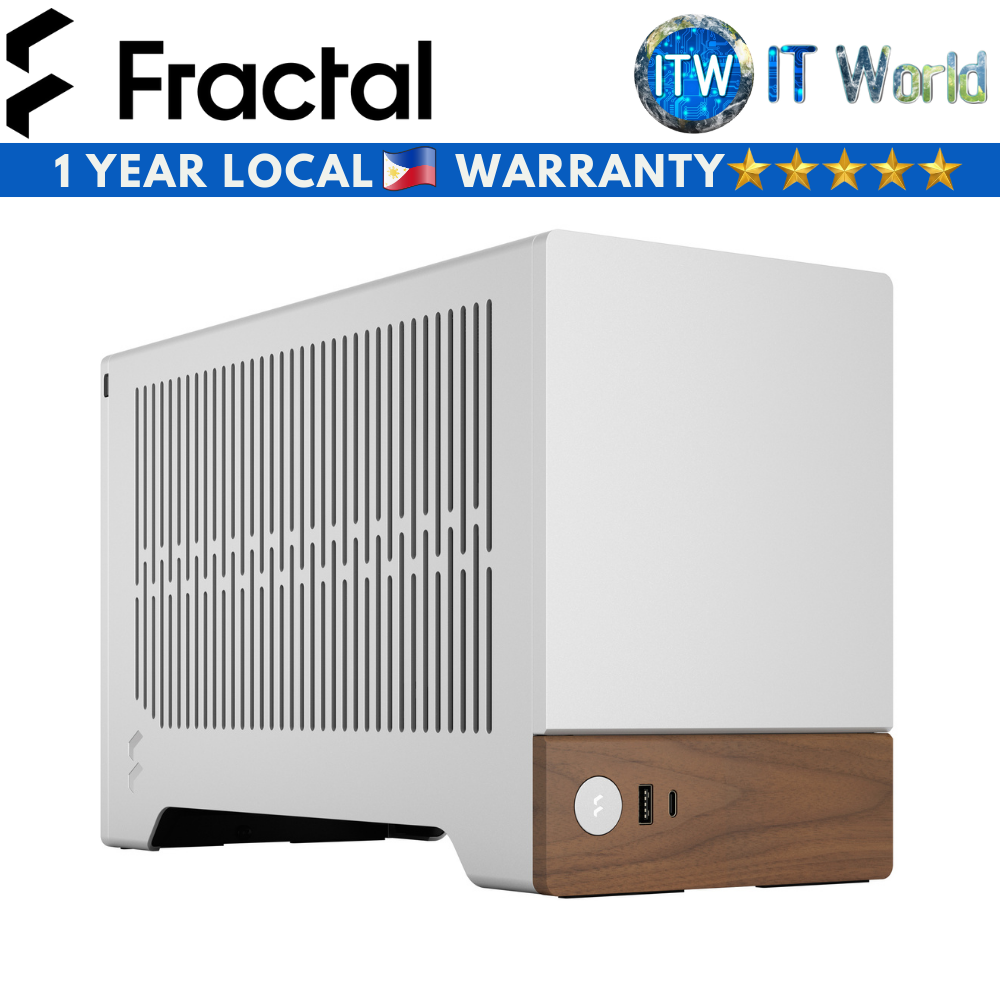

Product Name: Itw | Fractal Design Terra Silver Mini-ITX Small Form Factor PC Case (FD-C-TER1N-02)
Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 riser cable and features a stepless slidable central wall for build flexibility, providing space for a powerful GPU up to 322 mm in length.
* Install your choice of powerful GPU up to 322 mm in length, in a space-saving 10.4 L case (excluding feet)
* Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
* Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
Specification
* Dedicated 2.5" drive mounts: 2 (included)
* Expansion slots: 3 (Max GPU Mode), 2 (Max CPU-Cooler height mode)
* Front interface: 1x USB Type-C 20Gbps (USB 3.2 Gen 2x2), 1x USB Type-A 5Gbps (USB 3.0), Power Button
* Total fan mounts: 1x 120 mm
* Bottom fan: 1x 120 mm
* Tool-less push-to-lock: Both side panels and top panel (can also be locked with screws)
Compatibility
* Motherboard compatibility: mITX
* Power supply type: SFX-L/ SFX
* PSU max length: 130 mm
* Side radiator: 1x 120mm (121 mm wide if max 200 mm GPU and no SSDs)
* GPU max length: 322 mm
* GPU max width (if GPU height is lower than 131 mm): 72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)
* GPU max width (if GPU height 131-145mm): 62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)
* GPU max height: 145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)
* CPU cooler max height: 48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler)
* Additional comment: Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info.
Dimensions
* Case dimensions (L x W x H): 343 x 153 x 218 mm
* Case dimensions w/o feet/protrusions/screws: 343 x 153 x 198 mm
* Package dimensions (L x W x H): 394 x 215 x 292 mm
* Net weight: 3.1 kg
* Gross weight: 4.0 kg
* Volume: 10.4 liter (excluding feet), 11.4 liter (external dimensions)
Other
* Package Contents: Case, Accessory box, Manual
* SKU: Silver: FD-C-TER1N-02
* EAN: Silver: 7340172703990
* UPC: Silver: 843276103996
* JAN: Silver: 4537694302739
