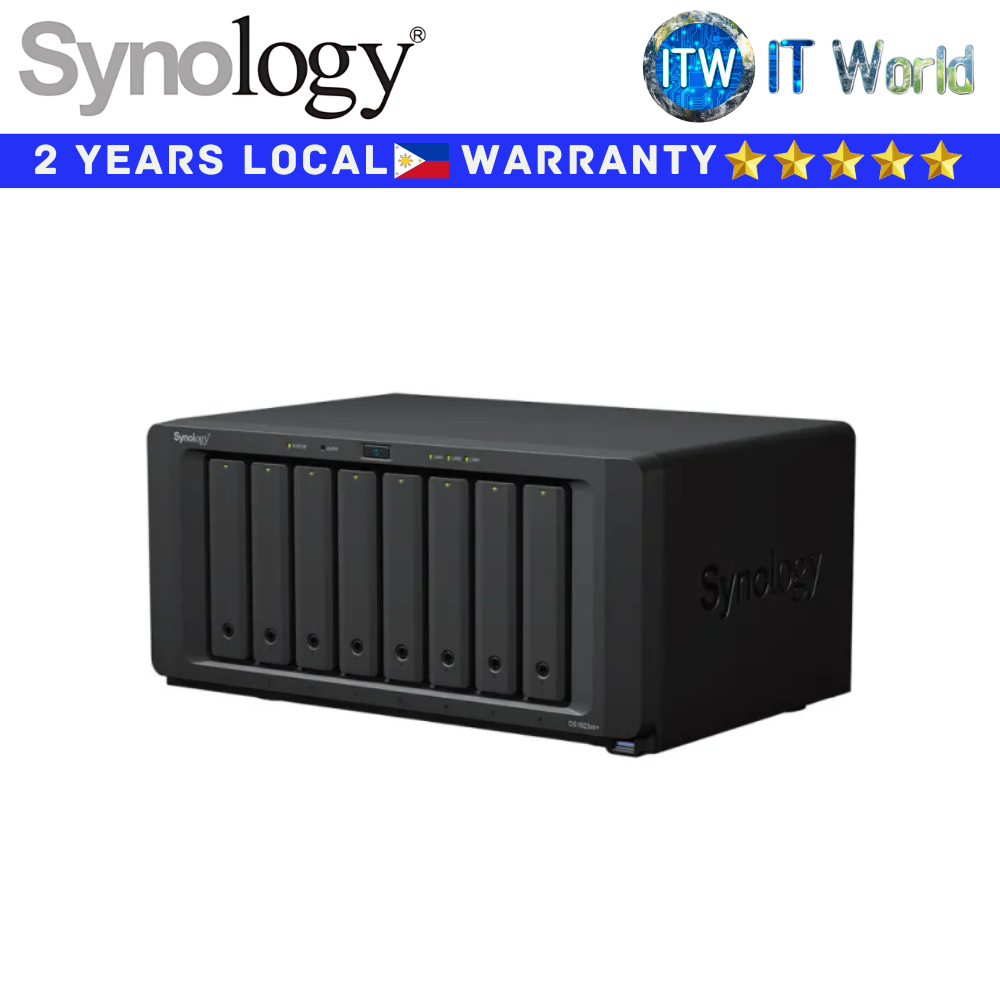

Synology NAS Storage DiskStation DS1823xs+ 8-Bays

https://itworldph.com/web/image/product.template/13516/image_1920?unique=6c992c6

Php 95,999.00 95999.0 PHP Php 99,999.00

Php 99,999.00


    This combination does not exist.

    Add to Cart Buy Now


    100% Original
    Free Delivery
    30 Days Return

    Share this product:

    Product Name: ITW | Synology Diskstation DS1823xs+ 8-Bays Desktop NAS (DS1823xs+)

    Specification

    ■ Hardware Specs ■

    CPU

    ✎ CPU Model: AMD Ryzen V1780B

    ✎ CPU Quantity: 1

    ✎ CPU Architecture: 64-bit

    ✎ CPU Frequency: 4-core 3.35 (base) / 3.6 (turbo) GHz

    ✎ Hardware Encryption Engine (AES-NI): Yes

    Memory

    ✎ System Memory: 8 GB DDR4 ECC SODIMM

    ✎ Memory Module Pre-installed: 8 GB (8 GB x 1)

    ✎ Total Memory Slots: 2

    ✎ Maximum Memory Capacity: 32 GB (16 GB x 2)

    Storage

    ✎ Drive Bays: 8

    ✎ Maximum Drive Bays with Expansion Unit: 18 (DX517 x 2)

    ✎ M.2 Drive Slots: 2 (NVMe)

    ✎ Compatible Drive Type* (See all supported drives)

    ■ 3.5" SATA HDD

    ■ 2.5" SATA SSD

    ■ M.2 2280 NVMe SSD

    ✎ Hot Swappable Drive*: Yes

    External Ports

    ✎ RJ-45 1GbE LAN Port*: 2 (with Link Aggregation / Failover support)

    ✎ RJ-45 10GbE LAN Port: 1

    ✎ Management LAN Port: 1

    ✎ USB 3.2 Gen 1 Port*: 3

    ✎ eSATA Port: 2

    PCIe

    ✎ PCIe Expansion: 1 x Gen3 x8 slot (x4 link)

    File System

    ✎ Internal Drives

    ■ Btrfs

    ■ EXT4

    ✎ External Drives

    ■ Btrfs

    ■ EXT4

    ■ EXT3

    ■ FAT

    ■ NTFS

    ■ HFS+

    ■ exFAT

    Appearance

    ✎ Size (Height x Width x Depth): 166 mm x 343 mm x 243 mm

    ✎ Weight: 6.2 kg

    Others

    ✎ System Fan: 120 mm x 120 mm x 2 pcs

    ✎ Fan Speed Mode

    ■ Full-Speed Mode

    ■ Cool Mode

    ■ Quiet Mode

    ✎ Easy Replacement System Fan: Yes

    ✎ Brightness Adjustable Front LED Indicators: Yes

    ✎ Power Recovery: Yes

    ✎ Noise Level*: 23.6 dB(A)

    ✎ Scheduled Power On / Off: Yes

    ✎ Wake on LAN / WAN: Yes

    ✎ Power Supply Unit / Adapter: 250 W

    ✎ AC Input Power Voltage: 100V to 240V AC

    ✎ Power Frequency: 50/60 Hz, Single Phase

    ✎ Power Consumption

    ■ 87.93 W (Access)

    ■ 28.37 W (HDD Hibernation)

    ✎ British Thermal Unit

    ■ 300.23 BTU/hr (Access)

    ■ 96.87 BTU/hr (HDD Hibernation)

    Temperature

    ✎ Operating Temperature: 0°C to 40°C (32°F to 104°F)

    ✎ Storage Temperature: -20°C to 60°C (-5°F to 140°F)

    ✎ Relative Humidity: 5% to 95% RH

    ■ Software Specs ■

    DSM Specifications

    Storage Management

    ✎ Maximum Single Volume Size*

    ■ 200 TB (32 GB memory required)

    ■ 108 TB

    ✎ Maximum Internal Volume Number: 256

    ✎ M.2 SSD Storage Pool Support*: Yes

    ✎ SSD Read / Write Cache (White Paper): Yes

    ✎ SSD TRIM: Yes

    ✎ RAID Group: Yes

    ✎ Supported RAID Type

    ■ RAID F1

    ■ Basic

    ■ JBOD

    ■ RAID 0

    ■ RAID 1

    ■ RAID 5

    ■ RAID 6

    ■ RAID 10

    ✎ RAID Migration

    ■ Basic to RAID 1

    ■ Basic to RAID 5

    ■ RAID 1 to RAID 5

    ■ RAID 5 to RAID 6

    ✎ Volume Expansion with Larger HDDs

    ■ RAID F1

    ■ RAID 1

    ■ RAID 5

    ■ RAID 6

    ■ RAID 10

    ✎ Volume Expansion by Adding a HDD

    ■ RAID F1

    ■ JBOD

    ■ RAID 5

    ■ RAID 6

    ✎ Global Hot Spare Supported RAID Type

    ■ RAID F1

    ■ RAID 1

    ■ RAID 5

    ■ RAID 6

    ■ RAID 10

    File Services

    ✎ File Protocol: SMB/AFP/NFS/FTP/WebDAV

    ✎ Maximum Concurrent SMB/AFP/FTP Connections: 2,000

    ✎ Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion): 8,000

    ✎ Windows Access Control List (ACL) Integration: Yes

    ✎ NFS Kerberos Authentication: Yes

    Account & Shared Folder

    ✎ Maximum Local User Accounts: 16,000

    ✎ Maximum Local Groups: 512

    ✎ Maximum Shared Folder: 512

    ✎ Maximum Shared Folder Sync Tasks: 32

    Hybrid Share

    ✎ Hybrid Share Folder Number: 15

    High Availability

    ✎ Synology High Availability: Yes

    Log Center

    ✎ Syslog Events per Second: 3,000

    General

    ✎ Networking Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

    ✎ Supported Browsers

    ■ Google Chrome

    ■ Firefox

    ■ Microsoft Edge

    ■ Safari

    Document Viewer

    Download Station

    ✎ Maximum Concurrent Download Tasks: 80

    SAN Manager

    ✎ Maximum iSCSI Target Number: 256

    ✎ Maximum LUN: 512

    ✎ LUN Clone/Snapshot, Windows ODX: Yes

    Synology MailPlus / MailPlus Server

    ✎ Free Email Accounts: 5 (Licenses required for additional accounts)

    ✎ Maximum Number of Concurrent Users: 450

    ✎ Maximum Server Performance: 2,029,000 emails per day, approx. 59GB

    Media Server

    ✎ DLNA Compliance: Yes

    Synology Photos

    ✎ Facial Recognition: Yes

    Snapshot Replication

    ✎ Maximum Snapshots per Shared Folder: 1,024

    ✎ Maximum of System Snapshots: 65,536

    Surveillance Station

    ✎ Maximum IP cam (Licenses required): 75 (including 2 Free License) (see all supported IP cameras)

    ✎ Total FPS (H.264)

    ■2250 FPS @ 720p (1280x720)

    ■2100 FPS @ 1080p (1920x1080)

    ■1500 FPS @ 3M (2048x1536)

    ■900 FPS @ 5M (2591x1944)

    ■550 FPS @ 4K (3840x2160)

    ✎ Total FPS (H.265)

    ■2250 FPS @ 720p (1280x720)

    ■2250 FPS @ 1080p (1920x1080)

    ■2250 FPS @ 3M (2048x1536)

    ■1500 FPS @ 5M (2591x1944)

    ■900 FPS @ 4K (3840x2160)

    Synology Drive

    ✎ Recommended Number of Concurrent Sync Clients: 900 (the number of connections that can be maintained when the recommended number of hosted files was reached)

    ✎ Recommended Number of Hosted Files: 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

    Synology Office

    ✎ Maximum Users: 2,900

    ✎ Video Station: Yes

    Virtual Machine Manager

    ✎ Recommended Virtual Machine Instances: 8 (Learn more)

    ✎ Recommended Virtual DSM Number (Licenses required): 8 (including 1 Free License)

    VPN Server

    ✎ Maximum Connections: 60
