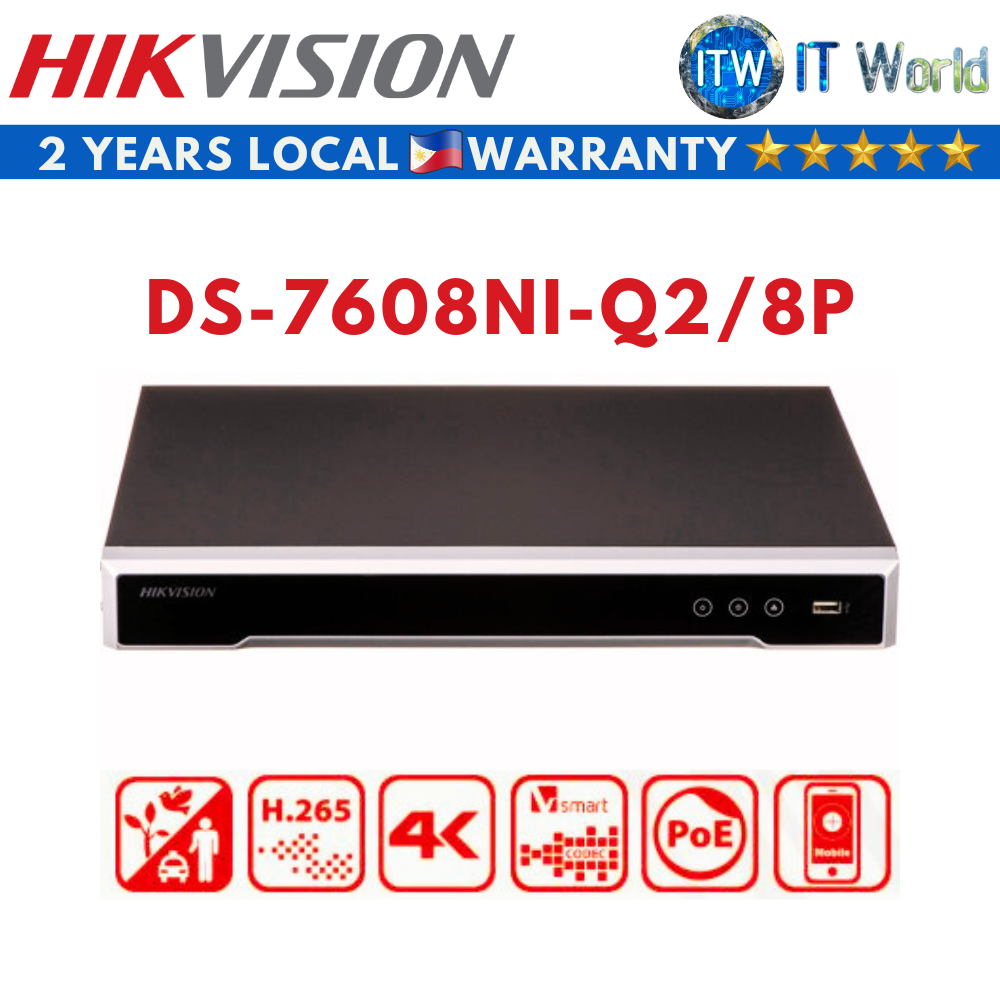

Product Name: Itw | Hikvision DS-7608NI-Q2/8P 8-Channel 1U 8 PoE 4K NVR
Key Feature
* Up to 8-ch IP camera inputs
* H.265+/H.265/H.264+/H.264 video formats
* Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
* Up to 80 Mbps incoming bandwidth
Professional and Reliability
* H.265+ compression effectively reduces the storage space by up to 75%
HD Video Output
* Provide simultaneous HDMI and VGA outputs
* HDMI video output at up to 4K resolution
Storage and Playback
* 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
* Smart search/smart playback to improve the playback efficiency
Smart Function
* 4-ch Motion Detection 2.0
* Support multiple VCA (Video Content Analytics) events
* Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)
Network & Ethernet Access
* 8 independent PoE network interfaces
* 1 self-adaptive 10/100 Mbps Ethernet interface
* Hik-Connect for easy network management
Specification
Motion Detection 2.0
* Human/Vehicle Analysis: 4-ch
Video and Audio
* IP Video Input: 8-ch
* Incoming Bandwidth: 80 Mbps
* Outgoing Bandwidth: 80 Mbps
* HDMI Output
> 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x
> 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
* VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
* Video Output Mode: HDMI/VGA simultaneous output
* Audio Output: 1-ch, RCA (Linear, 1 KΩ)
* Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
* Decoding Format: H.265+,H.265,H.264+,H.264
* Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
* Synchronous playback: 8-ch
* Decoding Capability
> 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
> *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
* Stream Type: Video, Video & Audio
* Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
Network
* Remote Connection: 32
* Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
* Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
* Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
* Power: ≤ 80 W
* Standard: IEEE 802.3 af/at
Auxiliary Interface
* SATA: 2 SATA interfaces
* Capacity: Up to 8 TB capacity for each disk
* Alarm In/Out: N/A
* USB Interface: 2 × USB 2.0
General
* Power Supply: 48 VDC, 2.5 A
* Consumption: ≤15 W (without HDD and PoE off)
* Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
* Working Humidity: 10% to 90%
* Chassis: 1U chassis
* Dimension (W × D × H): 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
* Weight: ≤ 2.6 kg (without HDD, 5.7 lb.)
Certification
* FCC: Part 15 Subpart B, ANSI C63.4-2014
* CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
>>> Note:
Alarm in/out can be optional for certain models. If you select a device model with "/ALARM", then the device will have 4 alarm inputs and 1 alarm output.
