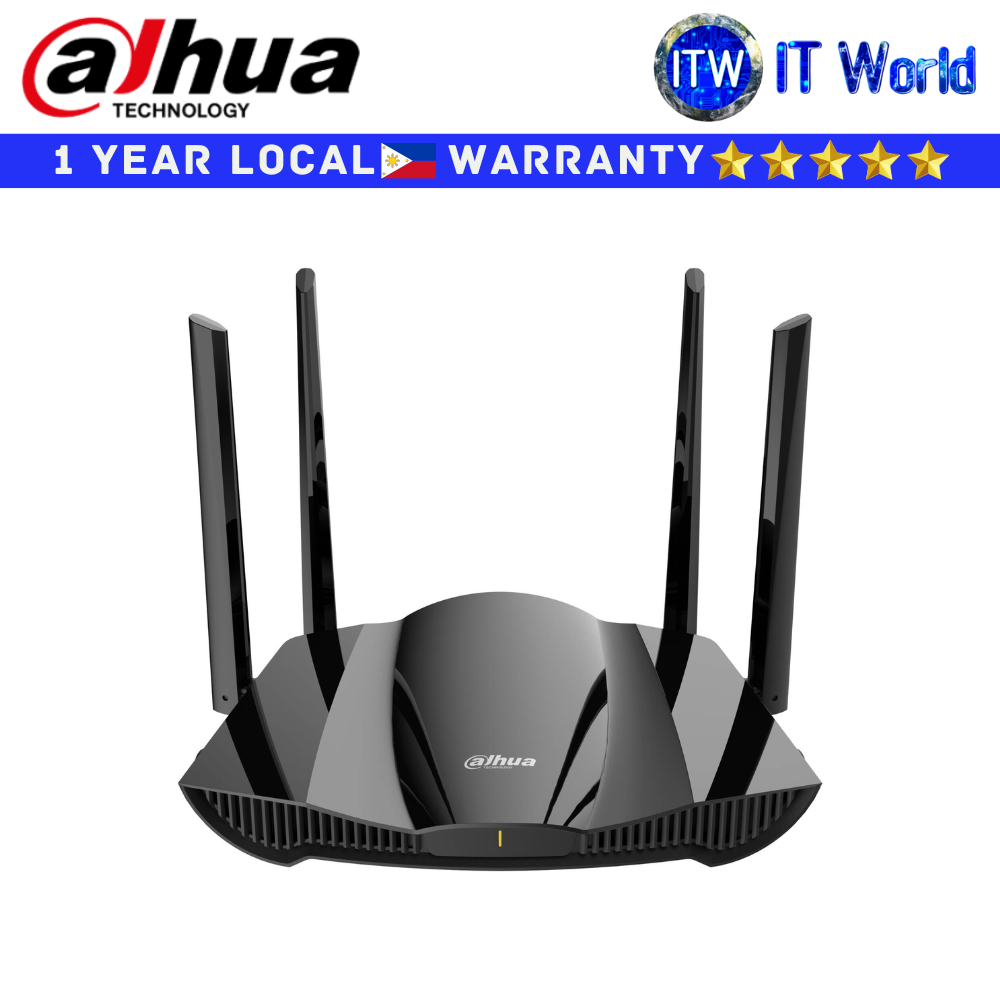

Dahua Wireless Router AX30 AX3000 6th Gen Wireless Technology (DH-AX30)

Product Name: Itw | Dahua Wireless Router AX30 AX3000 6th Gen Wireless Technology (DH-AX30)

OVERVIEW

• The DAHUA AX30 AX3000 Wireless Router offers high-speed, reliable internet connectivity designed for modern households and small offices. This dual-band router supports both 2.4 GHz and 5 GHz frequencies, providing a combined speed of up to 3000 Mbps, ensuring smooth streaming, gaming, and browsing experiences. Equipped with advanced technologies such as MU-MIMO and OFDMA, the AX30 efficiently handles multiple devices simultaneously, optimizing network performance.

• Its robust security features, including WPA3 encryption, protect your network from potential threats, while parental controls and QoS (Quality of Service) allow for personalized management of network resources. The router's sleek design includes external antennas for enhanced signal strength and coverage. Easy setup and management through the Web/WiLynk app ensure a user-friendly experience, making the DAHUA AX30 a versatile and powerful solution for all your wireless networking needs.

KEY FEATURES

WPA3 Encryption

• Adopts 192-bit CNSA (Commercial National Security Algorithm) to prevent brute force attacks on the password. The architecture of the security system also improves the privacy and security of wireless connections, and is strong against network attacks.

Low-power Consumption Technology

• Using TWT (Target Wake Time) technology, the router can negotiate when and how often it wakes up to send or receive data, and switches to low-power consumption mode when it is idle. End Devices that access the router can save up to 30% on consumption, improving their battery life.

Intelligent Management

• The router can be managed through the WiLynk app which features functions such as router configuration, network topology, parental control, guest Wi-Fi and Wi-Fi sharing. It not only improves router management, but also allows you to conveniently monitor the family network.

High Speed and Low Latency

• It leverages 6th Generation Wi-Fi, dual-band Wi-Fi, MU-MIMO, OFDMA and BSS Coloring. This greatly improves the concurrent performance of the router and its anti-interference capabilities on the same frequency band, providing smooth high-speed transmission with low latency for multiple devices.

Specification

>> HARDWARE <<

External Port

• 1×10/100/1000 Mbps(WAN)

• 3×10/100/1000 Mbps(LAN)

Reset Button: 1

WPS Button: 1

Power Consumption: <18W

Memory: 256 MB

Indicator Light: PWR

Wireless Standard

• 2.4 GHz: 802.11 b/g/n/ax

• 5 GHz: 802.11 a/b/g/n/ac/ax

=============================================

>> PERFORMANCE <<

Operating Frequency

• 2.412GHz – 2.472 GHz

• 5.170GHz – 5.330 GHz

• 5.735GHz – 5.835 GHz

Wireless Transmission Rate

• 2.4 GHz: 574 Mbps

• 5 GHz: 2402 Mbps

Channel Width: 20/40/80/160 MHz

Max. Output Power

CE EIRP:

• ≤20 dBm@2400-2483.5 MHz

• ≤23 dBm@5150-5250 MHz

• ≤23 dBm@5250-5350 MHz

• ≤27 dBm@5470-5725 MHz

• ≤14 dBm@5725-5850 MHz

FCC output power:

• ≤27 dBm@2400-2483.5 MHz

• ≤24 dBm@5150-5250 MHz

• ≤24 dBm@5250-5350 MHz

• ≤24 dBm@5470-5725 MHz

• ≤30 dBm@5725-5850 MHz

Antenna Gain

• 2.4 GHz: 5 dBi (±0.5)

• 5 GHz: 5 dBi (±0.5)

Receiver Sensitivity

5 GHz

• 11ac VHT80_MCS0: -89 dbm

• 11ac VHT80_MCS9: -62 dbm

• 11ax VHT160_MCS0: -88 dbm

• 11ax VHT160_MCS11: -55 dbm

• 11ax HE80_MCS0: -89 dbm

• 11ax HE80_MCS11: -59 dbm

• 11ax HE160_MCS0: -85 dbm

• 11ax HE160_MCS11: -55 dbm

2.4 GHz

• 11n HT20_MCS0: -95 dbm

• 11n HT20_MCS7: -75 dbm

• 11n HT40_MCS0: -92 dbm

• 11n HT40_MCS7: -72 dbm

• 11ax HE20_MCS0: -95 dbm

• 11ax HE20_MCS11: -65 dbm

• 11ax HE40_MCS0: -92 dbm

• 11ax HE40_MCS11: -62 dbm

Channel

• 2.4 GHz; 1-13

• 5 GHz: 36/40/44/48/149/151/153/157/161/165

Connected Wireless Terminals: Up to 128

=============================================

>> FEATURE <<

Operating Mode: Router; repeater

Encryption Mode: WPA-PSK; WPA2-PSK; WPA-PSK/WPA2-PSK; WPA3-PSK; WPA2-PSK/WPA3-PSK

Firmware Update

• Web update

• WiLynk App update

OFDMA: Yes

MU-MIMO: 2x2

DHCP: Yes

NAT: Mapping based on port

QoS: Yes

DDNS: Yes

Parental Controls: Yes

Equipment Management: Web/WiLynk App

Software

• Firewall;

• end device management

=============================================

>> GENERAL <<

Power Supply: 12 VDC,1.5 A

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature: –40 °C to +70 °C (–40 °F to 158 °F)

Operating Humidity: 10%–95% (RH), non-condensing

Gross Weight: 0.86 kg (1.90 lb)

Net Weight: 0.36 kg (0.79 lb)

Packaging Dimensions: 470 mm × 295 mm × 60 mm (18.50" × 11.61" × 2.36")(L × W × H)

Product Dimensions: 262.2 mm × 150.1 mm × 184.5 mm (10.32" × 5.91" × 7.26")(L × W × H)

Statics Protection

• Air discharge: 8 kV;

• Contact discharge: 6 kV

Lighting Protection

• Common mode: 2 kV;

• Differential mode: 0.5 kV

Installation

• Desktop mount;

• wall mount

Packing List

1 × Device

1 × Power adapter

1 × Ethernet cable

1 × Quick Start Guide

1 × Legal and Regulatory Information
