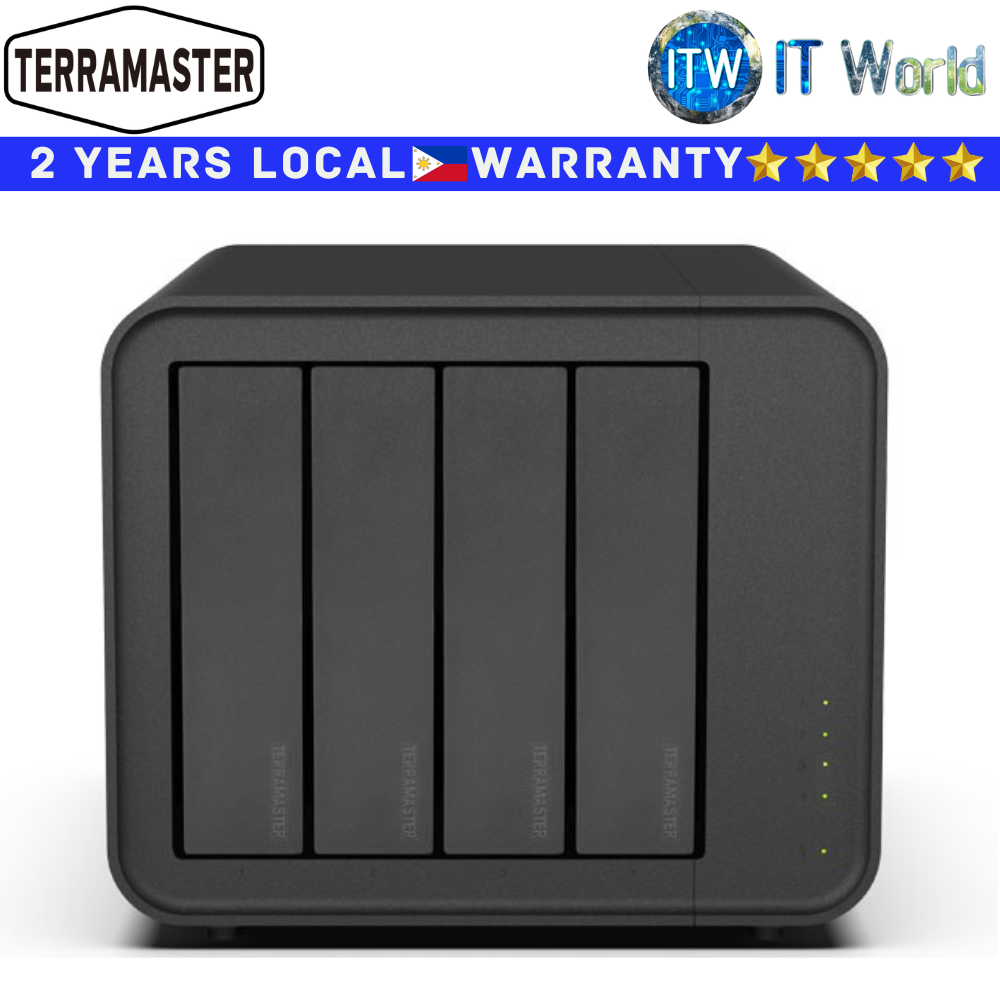

Product Name: Itw | Terramaster NAS Storage D4-320 4-Bays USB Single Disk Enclosure Network Attached Storage
Specification
Storage
* Disk Slot Number: 4
* Compatible Disk Types
> 3.5" SATA HDD
> 2.5" SATA HDD
> 2.5" SATA SSD
* File System: NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
* Maximum Internal Raw Capacity: 88 TB (22 TB drive x 4)
* RAIDs Supported: SINGLE DISK
* Hardware RAID: /
* RAID Manager Software: /
* RAID Manager Software Language: /
* RAID Online Expansion: /
* RAID Migration : /
* RAID Auto-rebuilding: /
* Drive Hot Swap : √
* HDD Sleep: √
* HDD S.M.A.R.T. Inspection: /
* Sector Inspection and Parity Check: /
* SSC Cache: /
* Daisy Chain: /
* HDD NCQ Technology: /
* Alert Notice: /
* Event Log: /
External Ports
* USB: USB3.2 Type-C gen2 10Gbps
* Thunderbolt: /
* DP Interface: /
* Network Interface: /
* USB HOST Interface: /
* Power Socket: DC IN 12V
Reading/writing Speed (max.)
* Reading Speed (max.)
> Read: 560MB/s ( SSD* 1 )
> Read: 1016MB/s ( SSD* 4)
* Writing Speed (max.)
> Write: 520MB/s ( SSD*1 )
> Write: 960MB/s ( SSD*4 )
Appearance
* Size (H*W*D): 222 x 179 x 154 mm
* Packaging Size (H*W*D): 300 x 275 x 186 mm
* Weight
> net weight: 1.9Kg
> Gross Weight: 3.1 Kg
Others
* System fan: 120 x 120 x 25mm 1PCS
* Fan mode: Smart
* Noise Level: 21.0dB(A)
Power Supply
* Power Supply: 72 W
* AC Input Voltage: 100V to 240V AC
* Current Frequency: 50/60 HZ, Single Phase
* Power Consumption: 40.8 W(Access), 9.8 W (Hibernation)
Environment Temperature
* Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)
* Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
* Relative Humidity: 5% ~ 95% RH
* Supported OS: Windows OS、Mac OS
* Certificate: CE, FCC, CCC, KC
* Environment: RoHS compliance
* Package Contents:
> Host unit (x1)
> Power cord (x1)
> USB Cable C to Type-C(10Gb) (x1)
> Quick Installation Guide (x1)
> Power adapter (x1)
> Screws (several)
