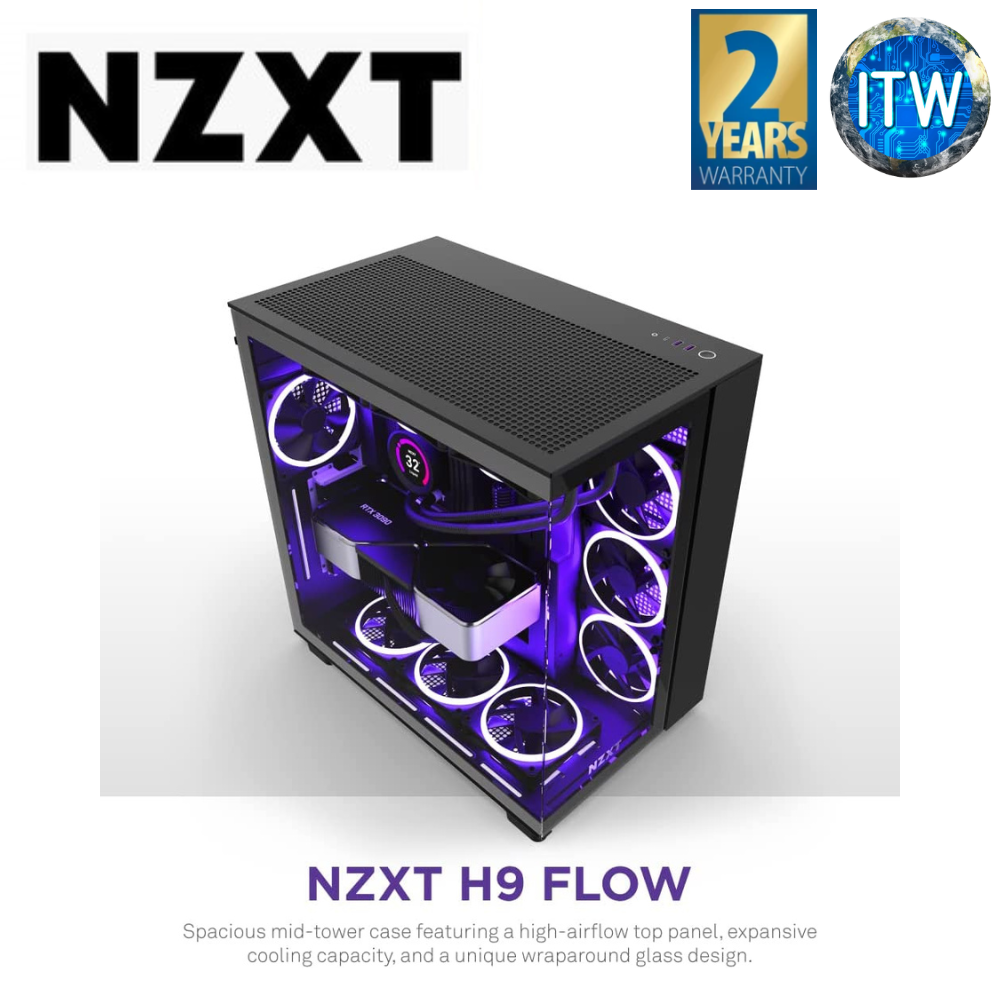

Product Name: NZXT H9 Flow Dual-Chamber Mid-Tower Airflow PC Case
The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring the capacity for ten fans and numerous 360mm radiator mounting options and the perforated top panel takes cooling even further.
■ Unique uninterrupted glass panel for a clear view of the interior
■ Intuitive cable management and dual chamber design
■ Room for ten fans or three 360mm Radiators
■ Perforated top panel for enhanced cooling
■ Direct airflow to the GPU for handling high-powered components
■ Enhanced experience with other products from the NZXT ecosystem
■ Includes four F Series 120mm Quiet Airflow fans
Specification
KEY SPECS
✎ Motherboard Support: Mini-ITX, Micro-ATX, ATX
✎ Enclosure Type: Mid-Tower
✎ Case Material: SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
DIMENSIONS
✎ Height: 495mm (With Feet)
✎ Width: 290mm
✎ Depth: 466mm
✎ Weight: 12.1 kg
COMPATIBILITY & CLEARANCE
✎ Max CPU Cooler Clearance: Up to 165mm
✎ Max GPU Clearance: Up to 435mm
✎ PSU Clearance: 200mm
✎ Cable Management: 91mm
FRONT I/O PORTS
✎ USB 3.2 Gen 1 Type-A: 2
✎ USB 3.2 Gen 2 Type-C: 1
✎ Headset Audio Jack: 1
EXPANSION SLOTS
✎ Standard: 7
✎ Vertical: 0
DRIVE BAYS
✎ 2.5": 4+2
✎ 3.5": 2
FAN SUPPORT
✎ Side: 3 x 120mm
✎ Top: 3 x 120mm / 2 x 140mm
✎ Bottom: 3 x 120mm / 2 x 140mm
✎ Rear: 1 x 120mm
✎ Filters: All Air Intakes
RADIATOR SUPPORT
✎ Side: Up to 360mm with Push/Pull
✎ Top: Up to 360mm
✎ Bottom: Up to 360mm
✎ Rear: Up to 120mm
FAN SPECS
✎ Model: F120Q (Case Version)
✎ Speed: 1200 ± 240RPM
✎ Airflow: 62.18 CFM
✎ Static: 1.05 mm - H2O
✎ Noise: 25.1 dBA
✎ Fan Connector: 3-pin
GENERAL
✎ Warranty: 2 Years
✎ Model Number: CM-H91FW-01 (White) / CM-H91FB-01 (Black)
✎ UPC: 810074842495 (White) / 810074842488 (Black)
✎ EAN: 5056547202419 (White) / 5056547202402 (Black)
