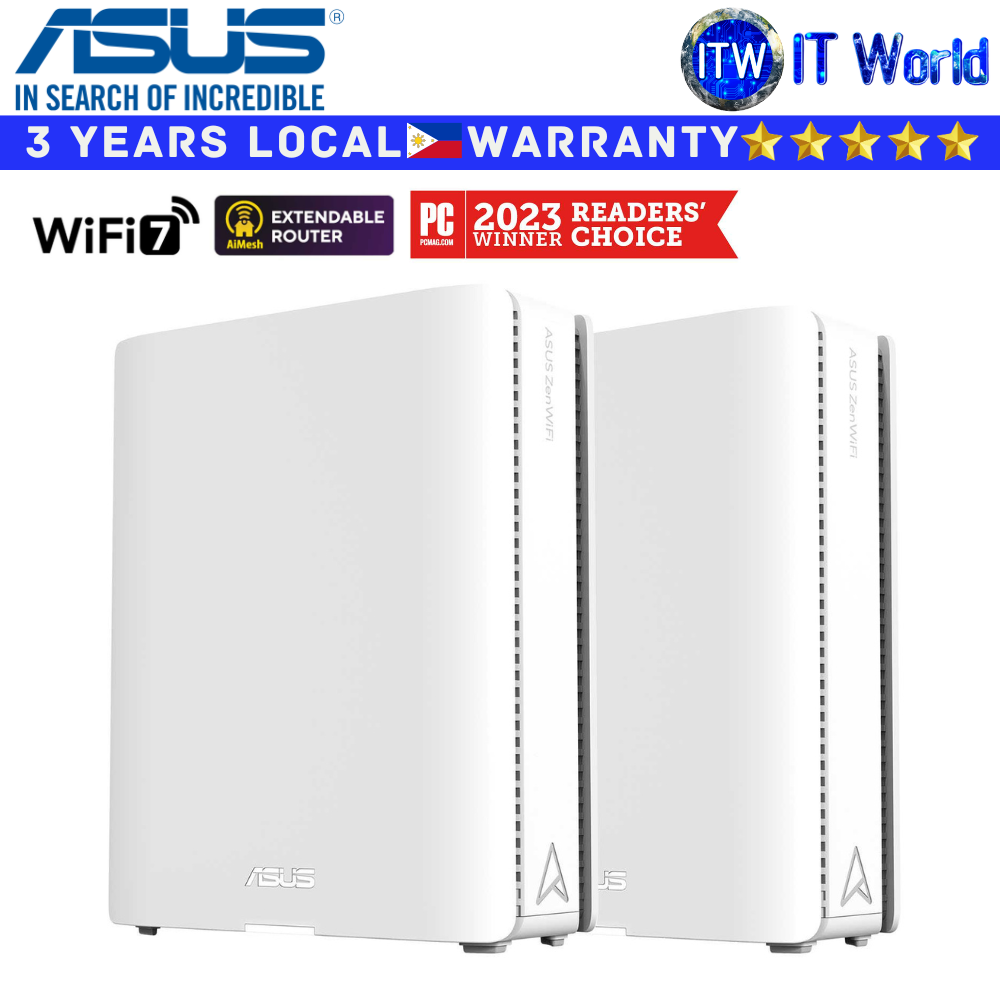

Product Name: Itw | ASUS Wireless Router ZenWifi BQ16 BE25000 Quad-Band Wifi7 Worry-free Smart Home Mesh (2-Pack)
Specification
* Model: ASUS ZenWiFi BQ16
* Model Name: BQ16 (W-2-PK)
* Network Standard
> IEEE 802.11a
> IEEE 802.11b
> IEEE 802.11g
> WiFi 4 (802.11n)
> WiFi 5 (802.11ac)
> WiFi 6 (802.11ax)
> WiFi 6E (802.11ax)
> WiFi 7 (802.11be)
> IPv4
> IPv6
* Product Segment: BE25000 ultimate BE performance: 1376+5764+5764+11529 Mbps
* WiFi Data Rate
> WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps
> WiFi 7 (802.11be) (5GHz-1): up to 5764 Mbps
> WiFi 7 (802.11be) (5GHz-2): up to 5764 Mbps
> WiFi 7 (802.11be) (6GHz): up to 11529 Mbps
* Antenna: Internal antenna x 12
* Transmit / Receive
> 2.4GHz 4x4
> 5GHz-1 4x4
> 5GHz-2 4x4
> 6GHz 4x4
* MemoryRAM 2GB , Flash 256MB
* Boosts Speed
> OFDMA (Orthogonal Frequency Division Multiple Access)
> Beamforming: standard-based and universal
> 4096-QAM high data rate
> 20/40/80/160/320 MHz bandwidth
* Operating Frequency
> 2.4 GHz / 5 GHz / 6 GHz
> 2.4 GHz
> 5 GHz-1
> 5 GHz-2
> 6 GHz
* Operating Mode
> Wireless Router Mode
> AiMesh Node Mode
> Access Point Mode
* I/O Ports: 10G WAN/LAN x 1, 10G LAN x 1, 1G WAN/LANx 1, 1G LAN x2, USB 3.0
* Buttons: Reset/ WPS/ Rocker Switch
* LED Indicator: Power x 1
* Power Supply
> AC Input: 110V~240V(50~60Hz)
> DC Output: 19V with max. 3.42A current
* Package Content
> ZenWiFi BQ16
> RJ-45 cable
> Power adapter
> Warranty card
> Quick start guide
* Product Weight (g): 1341g
* Product Dimensions: 214*174.2*72 mm
* AiMesh
> AiMesh
• Primary AiMesh Router
• AiMesh Node
* Parental Control
> "Allow you to block access to unwanted websites and apps."
> Web & Apps Filters
> Time Scheduling
> Reward
> Parental Control - Safe Browsing
> Customized Internet Schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Filter Rule : 64
* Router APP: APP: ASUS Router APP
* Guest Network
> "The Guest Network provides Internet connection for guests but restricts access to your local network."
> Support Guest Network
• Maximum Guest Network Rule : 2.4G+5G/ 2.4G+5G+6G: 8
> Guest Network Connection Time Limit
> Open system, WPA/WPA2-Personal/WPA3-Personal
* Security
> AiProtection
> VPN
> WPA3 Enterprise, WPA3 Personal, WPA2 Enterprise, WPA2 Personal, WPA Personal, WPA Enterprise, WPS support
> WPS
> Let's Encrypt
> DNS-over-TLS
> SSH
> Security Scan
> Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
* AiProtection
> AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
* VPN
> Instant Guard
> VPN Client L2TP
> VPN Client Open VPN
> VPN Client PPTP
> VPN Client WireGuard
> VPN Server IPSec
> VPN Server Open VPN
> VPN Server PPTP
> VPN Server WireGuard
> VPN Fusion
* Traffic Control
> Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
> Traditional QoS
> Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
> Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
* WAN
> Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
> Dual WAN
> 4G / 5G Auto Mobile Tethering
> Port Forwarding
• Maximum Port Forwarding Rule : 64
> Port Triggering
• Maximum Port Triggering Rule : 32
> DMZ
> DDNS
* LAN
> DHCP Server
> IGMP Snooping
> IPTV
> LAN Link Aggregation
> Manually Assign IP Address
> Wake on LAN (WOL)
* Wireless
> MU-MIMO
> UTF-8 SSID
> WiFi MAC Address Filter
• Maximum MAC Filters : 64
> Wireless Scheduler
> Airtime Fairness
> Universal Beamforming
> Explicit Beamforming
* USB application
> 4G / 5G Auto Mobile Tethering
> HDD Hibernation
> AiCloud
> Download Master
> AiDisk
> Media Server
> Time Machine
> Samba Server
> FTP Server
* Administration
> Feedback System
> System Log
> New Device Connect Notification
> Login Captcha
> Connection Diagnosis
> Auto Firmware Update
