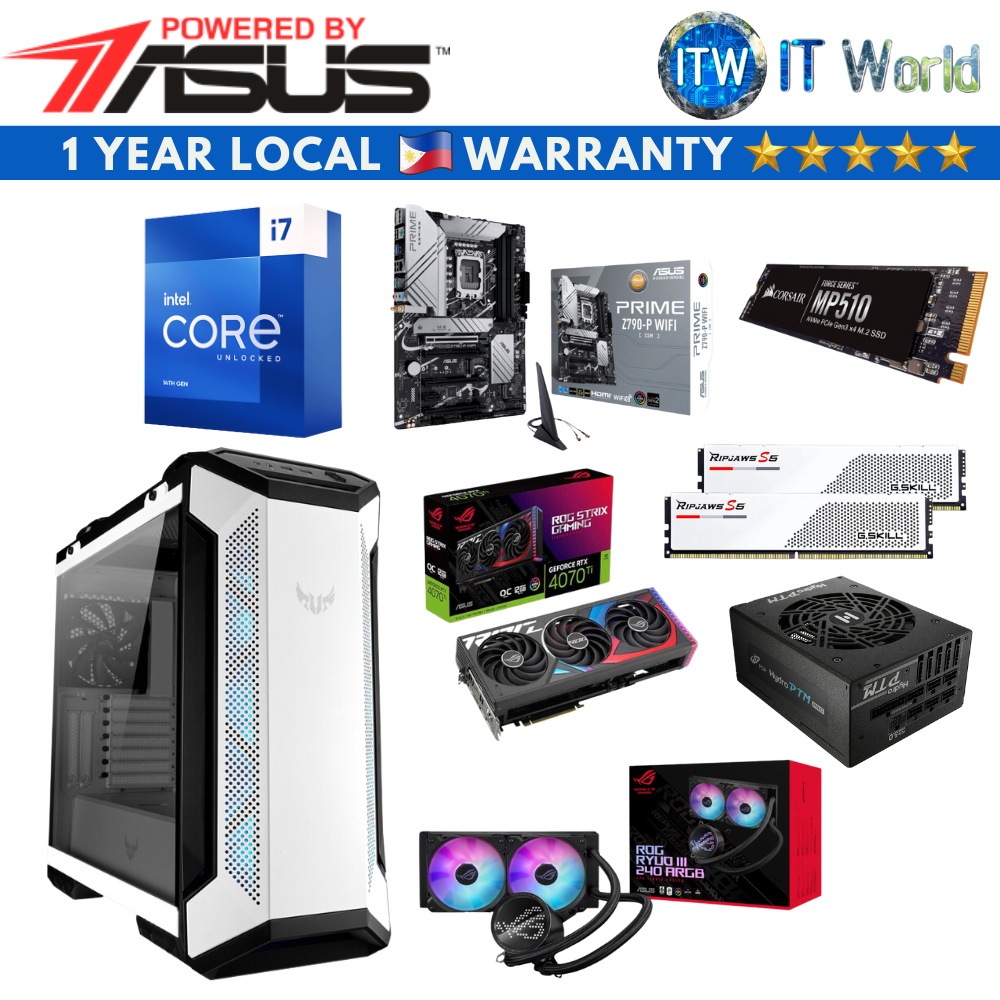

Product Name: Gaming PC Powered by ASUS Desktop Computer Set Black Knight Build i7-14700K 4070 Ti RTX
*** Intel Core i7-14700K 33MB Cache, up to 5.60Ghz Desktop Processor ***
CPU Specifications
> Total Cores: 20
> # of Performance-cores: 8
> # of Efficient-cores: 12
> Total Threads: 28
> Max Turbo Frequency: 5.6 GHz
> Intel® Turbo Boost Max Technology 3.0 Frequency ‡: 5.6 GHz
> Performance-core Max Turbo Frequency: 5.5 GHz
> Efficient-core Max Turbo Frequency: 4.3 GHz
> Performance-core Base Frequency: 3.4 GHz
> Efficient-core Base Frequency: 2.5 GHz
> Cache: 33 MB Intel® Smart Cache
> Total L2 Cache: 28 MB
> Processor Base Power: 125 W
> Maximum Turbo Power: 253 W
---
ASUS Prime Z790-P WiFi-CSM ATX LGA1700 DDR5 Motherboard
Specification
CPU
> Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
> Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
> Intel® Z790 Chipset
Memory
> 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
> Dual Channel Memory Architecture
> Supports Intel® Extreme Memory Profile (XMP)
> OptiMem II
Back Panel I/O Ports
> 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
> 1 x USB 3.2 Gen 2 port (1 x Type-A)
> 2 x USB 3.2 Gen 1 ports (2 x Type-A)
> 4 x USB 2.0 ports (4 x Type-A)
> 1 x DisplayPort
> 1 x HDMI® port
> 1 x Wi-Fi Module
> 1 x Realtek 2.5Gb Ethernet port
> 3 x Audio jacks
> 1 x PS/2 Keyboard/Mouse combo port
Form Factor
> ATX / 12inch x 9.2inch (30.5cm x 23.4cm)
---
*** G.Skill Ripjaws S5 32GB (2x16GB) DDR5-6000 CL32 1.35V Desktop Memory (F5-6000J3238F16GX2-RS5W) ***
Specification
> Memory Type: DDR5
> Capacity: 32GB (16GBx2)
> Multi-Channel Kit: Dual Channel Kit
> Tested Speed (XMP/EXPO): 6000 MT/s
> Tested Latency (XMP/EXPO): 32-38-38-96
> Tested Voltage (XMP/EXPO): 1.35V
> Registered/Unbuffered: Unbuffered
> Error Checking (ECC): Non-ECC
> SPD Speed (Default): 4800 MT/s
> SPD Voltage (Default): 1.10V
> Fan Included: No
> Features: Intel XMP 3.0 (Extreme Memory Profile) Ready
---
*** Corsair Force MP510 960GB M.2 SSD ***
Specification
> Storage Form Factor: M.2 2280
> Memory Type: PCIe Gen 3.0 x4
> SSD Max Sequential Write CDM: Up to 3,000MB/s
> SSD Smart Support: Yes
> Endurance: 720 TBW
> NAND Technology: 3D TLC
> SSD Shock: 1,500 G
> Form Factor: M.2 2280
> Application Consumer: Client
> Voltage: 3.3V, +/- 5%
> Vibration: 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
> Encryption: AES 256-bit Encryption
> MTBF Hours: 1,800,000 Hours
> SSD TBW: 720
> Capacity: 960 GB
> Interface: PCIE* 3 x 4
---
*** Asus Rog Strix RTX 4070 Ti 12GB GDDR6X OC Gaming Graphic Card(ROG-STRIX-RTX4070TI-O12G-GAMING) ***
Specification
> Graphic Engine: NVIDIA® GeForce RTX™ 4070 Ti
> Bus Standard: PCI Express 4.0
> OpenGL: OpenGL®4.6
> Video Memory: 12GB GDDR6X
> Engine Clock
- OC mode: 2790 MHz
- Default mode: 2760 MHz (Boost clock)
> CUDA Core: 7680
> Memory Speed: 21 Gbps
> Memory Interface: 192-bit
> Resolution: Digital Max Resolution 7680 x 4320
> Interface
- Yes x 2 (Native HDMI 2.1a)
- Yes x 3 (Native DisplayPort 1.4a)
- HDCP Support Yes (2.3)
> Maximum Display Support: 4
> NVlink/ Crossfire Support: No
---
*** FSP Hydro PTM 1200W 80+ Platinum ATX3.0(PCIe5.0) Fully Modular PSU (HPT2-1200M GEN5) ***
Specification
✎ Model: HPT2-1200M, Gen5
✎ Rated Output Power: 1200W
✎ Form Factor: ATX
✎ 80 PLUS Certification: Platinum
✎ Input Voltage: 100-240V
✎ Input Current: 14-9A
✎ Input Frequency: 50-60Hz
✎ PFC: Active PFC
✎ Efficiency: ≥ 92%
✎ Fan Type: FDB Fan, 135mm
✎ Dimensions (L x W x H): 150 x 190 x 86 mm
✎ Protection: OCP, OVP, SCP, OPP, OTP, UVP
---
*** ASUS TUF Gaming GT501 White Mid-Tower TG PC Case ***
> Model: TUF Gaming GT501 White Edition
> Color: Black/Grey | White
> Case Size: Mid Tower
> Motherboard Support
- EATX (12"x10.9")
- ATX
- Micro-ATX
- Mini-ITX
> Drive Bays
- 3 x 2.5" Bay
- 4 x 2.5"/3.5" Combo Bay
> Expansion Slots
- 7
- 2 (additional vertical)
> Front I/O Port
- 1 x Headphone
- 1 x Microphone
- 2 x USB 3.1 Gen1
> Tempered Glass: Left Side
---
*** ASUS ROG Ryou III 240 ARGB AIO Liquid CPU Cooler w/ Asetek 8th Gen Pump Solution ***
Specification
Water Block
> Water block dimension: 89 x 89 x 68.3 mm
> Block Material (CPU Plate): Copper
Pump
> Pump Solution: 8th gen Asetek pump
> Motor Speed: 800 - 2,600 +/- 300 RPM
Radiator
> Radiator Dimension: 279.5 x 120 x 30 mm
> Radiator Material: Aluminum
> Tube: Sleeved Rubber tube
> Tube Length: 400 mm
Fan
> Fan: ROG FAN MODEL 12 ARGB
> Size: 2 x Fan Slots (120mm)
> Dimension: 120 x 120 x 25 mm
> Speed: 2200 +/- 300 RPM
> Static Pressure: 3.88 mmH2O
> Air Flow: 70.07 CFM
> Noise: 36.45 dB(A)
> Control Mode: PWM/ DC
