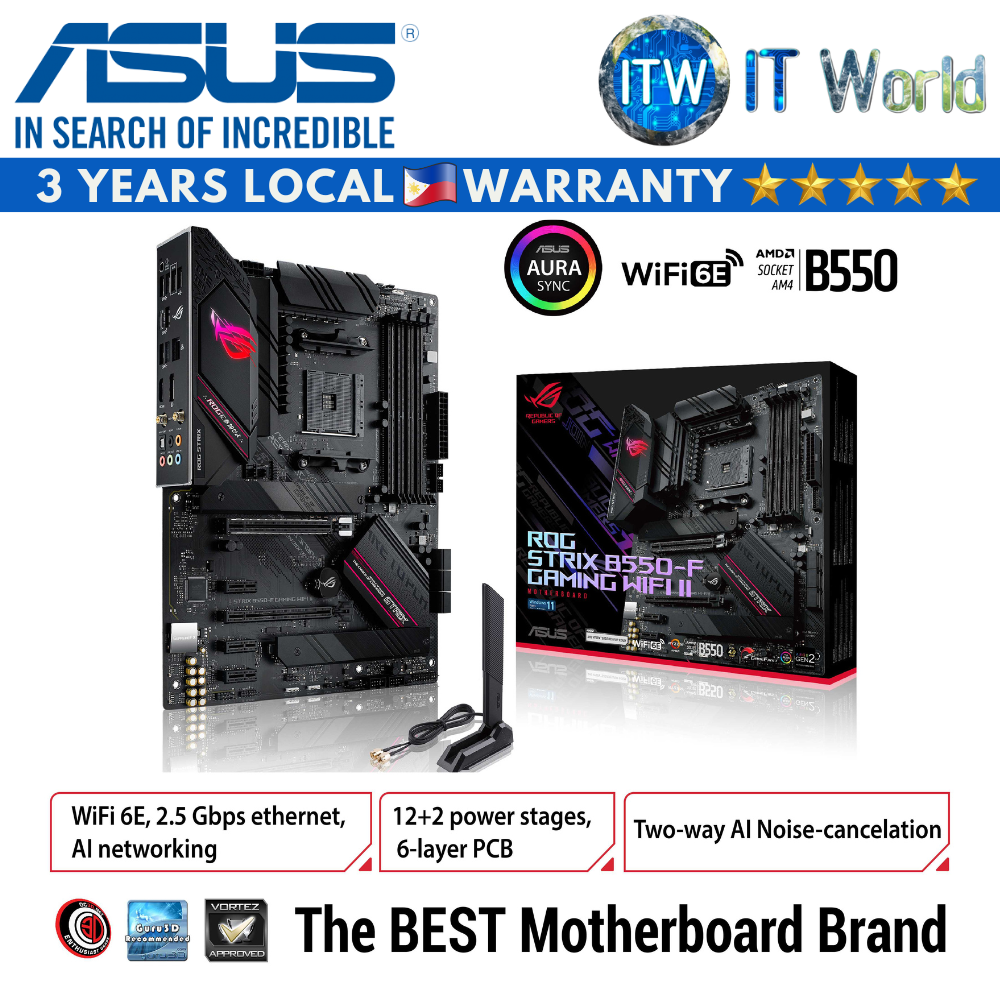

Product Name: Itw | Asus Rog Strix B550-F Gaming Wifi II ATX AM4 DDR4 Motherboard
AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, 12+2 teamed power stages, Intel® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
■ AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
■ Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
■ Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
■ Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
■ Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
■ DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
■ Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
■ Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound
Specification
CPU
✎ AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset
✎ B550
Memory
✎ AMD Ryzen™ 5000 and 3000 Series Desktop Processors
■ 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory *
✎ AMD Ryzen™ 5000 and 4000 G-Series Processors
■ 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory *
■ ECC Memory (ECC mode) support varies by CPU.
Graphics
✎ 1 x DisplayPort 1.2
✎ 1 x HDMI® 2.1
*Graphics specifications may vary between CPU types.
Expansion Slots
✎ AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
■ 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)
✎ AMD B550 chipset
■ 1 x PCIe 3.0 x16 slot (supports x4 mode)*
■ 3 x PCIe 3.0 x1 slots
*Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3
Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
✎ Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
✎ AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
■ M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
✎ AMD B550 Chipset:
■ M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
■ 6 x SATA 6Gb/s ports
■ Support RAID 0, 1, 10
* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.
Ethernet
✎ 1 x Intel® 2.5Gb Ethernet
✎ 1 x Intel® I225-V 2.5Gb Ethernet
✎ ASUS LANGuard
Wireless & Bluetooth
✎ Wi-Fi 6E
✎ 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
✎ Supports 2.4/5/6GHz frequency band*
✎ Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB
✎ Rear USB: Total 8 ports
■ 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
■ 4 x USB 3.2 Gen 1 ports (4 x Type-A)
■ 2 x USB 2.0 ports
✎ Front USB: Total 6 ports
■ 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
■ 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
✎ ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
■ Impedance sense for front and rear headphone outputs
■ ack-detection, Multi-streaming, Front Panel Jack-retasking
■ High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
■ Supports up to 32-Bit/192kHz playback*
✎ Audio Features
■ SupremeFX Shielding Technology
■ Dual OP Amplifiers
■ Premium audio capacitors
■ Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.
Back Panel I/O Ports
✎ 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
✎ 4 x USB 3.2 Gen 1 ports (4 x Type-A)
✎ 2 x USB 2.0 ports
✎ 1 x Wi-Fi Module
✎ 1 x DisplayPort
✎ 1 x HDMI® port
✎ 1 x Intel® I225-V 2.5G Ethernet
✎ 1 x Optical S/PDIF out
✎ 5 x Audio jacks
✎ 1 x BIOS FlashBackTM button
Form Factor
✎ ATX / 30.5cm x 24.4cm
