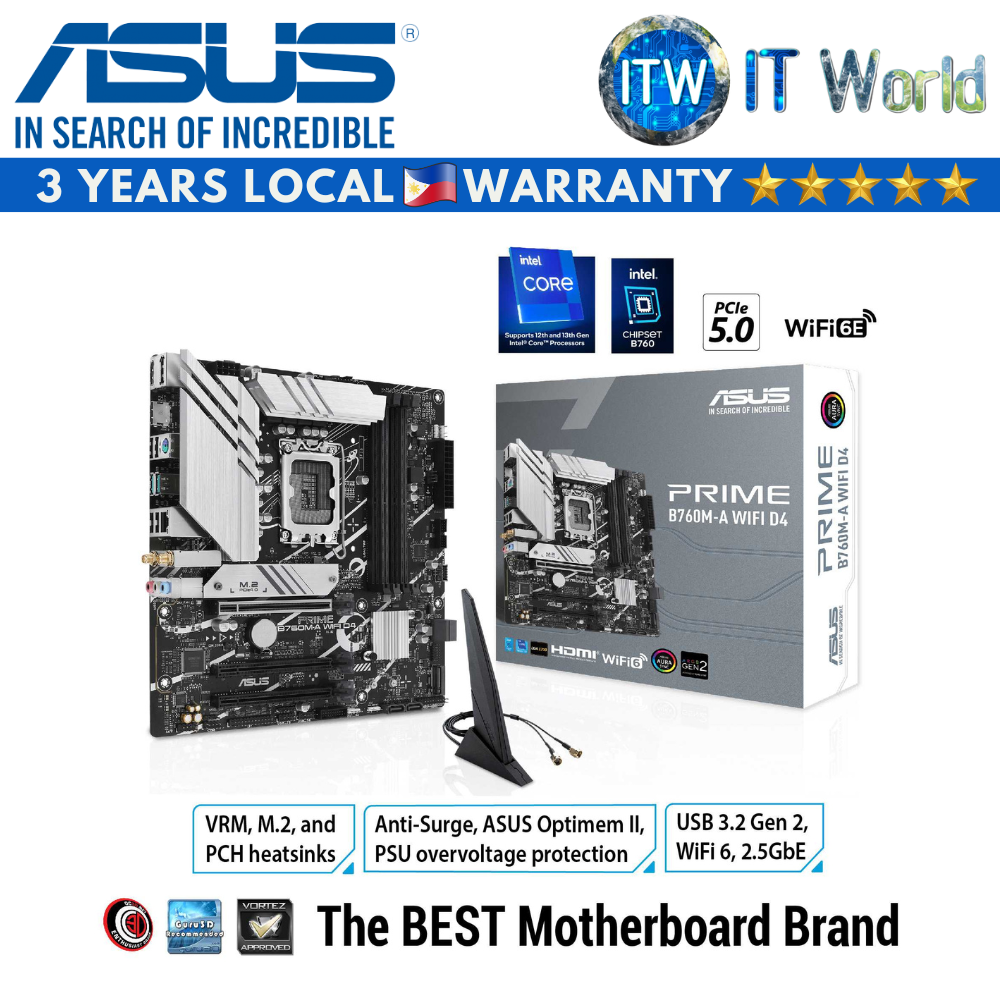

Asus Prime B760M-A Wifi micro-ATX LGA1700 DDR4 Motherboard

https://itworldph.com/web/image/product.template/22080/image_1920?unique=671fa8e

Php 8,599.00 8599.0 PHP Php 8,599.00

Php 9,099.00


    This combination does not exist.

    Add to Cart


    Share this product:

    Product Name: Itw | Asus Prime B760M-A Wifi micro-ATX LGA1700 DDR4 Motherboard

    Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

    ■ Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors

    ■ Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®

    ■ Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

    ■ ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking

    ■ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

    Specification

    Model

    ✎ PRIME B760M-A WIFI D4

    CPU

    ✎ Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

    ✎ Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    ✎ Intel® B760 Chipset

    Memory

    ✎ 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

    ✎ Dual Channel Memory Architecture

    ✎ Supports Intel® Extreme Memory Profile (XMP)

    ✎ OptiMem II

    * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration.

    Graphics

    ✎ 1 x DisplayPort**

    ✎ 2 x HDMI® ports***

    * Graphics specifications may vary between CPU types.

    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

    *** Supports 4K@60Hz as specified in HDMI® 2.1.

    Expansion Slots

    ✎ Intel® 13th & 12th Gen Processors

    ■ 1 x PCIe 4.0 x16 slot

    ✎ Intel® B760 Chipset

    ■ 1 x PCIe 4.0 x16 slot (supports x4 mode)

    ■ 1 x PCIe 4.0 x16 slot (supports x1 mode)

    Note: To ensure compatibility of the device installed.

    Storage

    Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*

    ✎ Intel® 13th & 12th Gen Processors

    ■ M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    ✎ Intel® B760 Chipset

    ■ M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    ■ 4 x SATA 6Gb/s ports

    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

    Ethernet

    ✎ 1 x Realtek 2.5Gb Ethernet

    Wireless & Bluetooth

    ✎ Wi-Fi 6

    ✎ 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

    ✎ Supports 2.4/5GHz frequency band

    ✎ Bluetooth v5.2

    * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

    USB

    ✎ Rear USB (Total 6 ports)

    ■ 2 x USB 3.2 Gen 2 ports (2 x Type-A )

    ■ 4 x USB 2.0 ports (4 x Type-A)

    ✎ Front USB (Total 10 ports)

    ■ 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

    ■ 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

    ■ 2 x USB 2.0 headers support 4 additional USB 2.0 ports

    ■ 1 x USB 2.0 header supports 1 additional USB 2.0 port

    Audio

    ✎ Realtek 7.1 Surround Sound High Definition Audio CODEC*

    ■ Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    ■ Supports up to 24-Bit/192 kHz playback

    ✎ Audio Features

    ■ Audio Shielding

    ■ Premium audio capacitors

    ■ Dedicated audio PCB layers

    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

    Back Panel I/O Ports

    ✎ 2 x USB 3.2 Gen 2 ports (2 x Type-A )

    ✎ 4 x USB 2.0 ports (4 x Type-A)

    ✎ 1 x DisplayPort

    ✎ 2 x HDMI® ports

    ✎ 1 x Wi-Fi Module

    ✎ 1 x Realtek 2.5Gb Ethernet port

    ✎ 3 x Audio jacks

    ✎ 1 x PS/2 Keyboard/Mouse combo port

    Form Factor

    ✎ mATX / 9.6-inch x 9.6-inch (24.4cm x 24.4cm)
