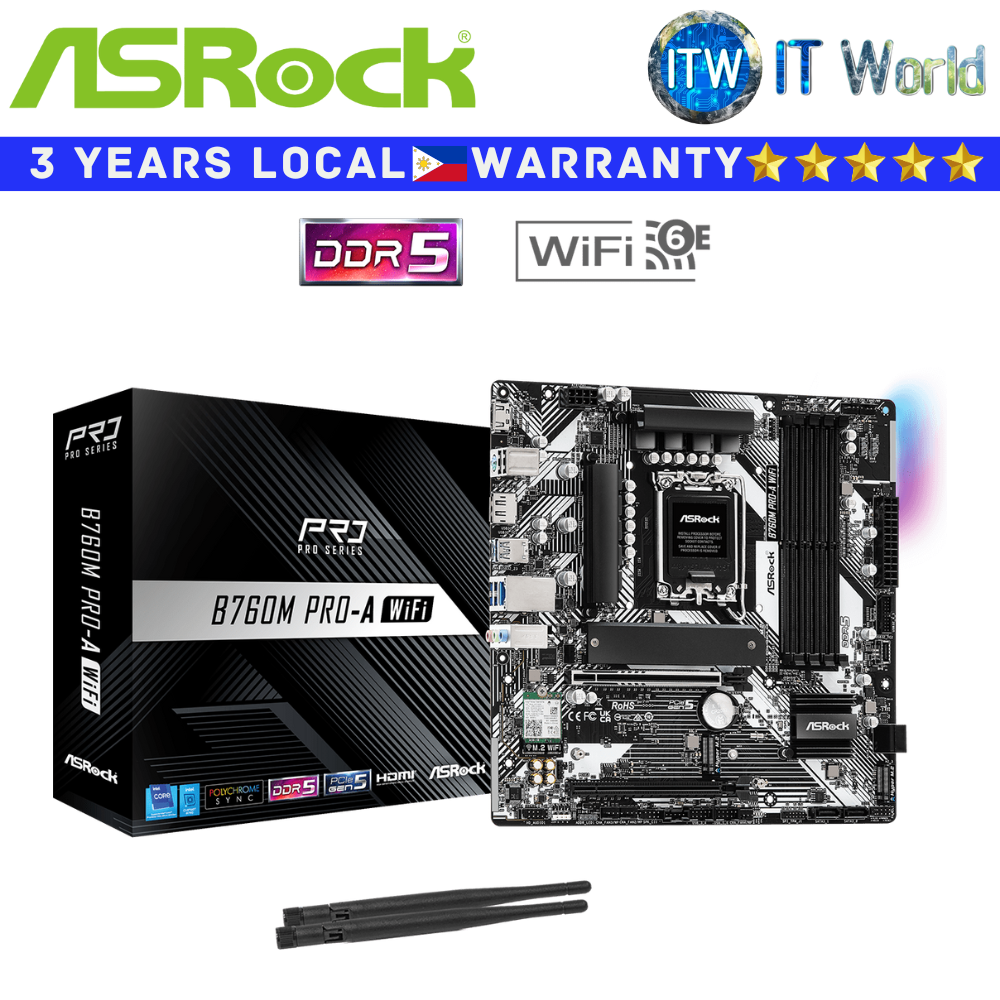

Product Name: Itw | ASRock Motherboard B760M Pro-A Wifi microATX LGA1700 DDR5
Specification
CPU
> Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
> Supports Intel® Hybrid Technology
> Supports Intel® Turbo Boost Max 3.0 Technology
> Supports Intel® Thermal Velocity Boost (TVB)
> Supports Intel® Adaptive Boost Technology (ABT)
Chipset
> Intel® B760
Memory
> Dual Channel DDR5 Memory Technology
> 4 x DDR5 DIMM Slots
> Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
> Max. capacity of system memory: 192GB
> Supports Intel® Extreme Memory Profile (XMP) 3.0
*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
Graphics
> Intel® Xe Graphics Architecture (Gen 12)
> 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
> 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
> 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
> 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
> Dragon RTL8125BG
> Supports Dragon 2.5G LAN Software
> Smart Auto Adjust Bandwidth Control
> Visual User Friendly UI
> Visual Network Usage Statistics
> Optimized Default Setting for Game, Browser, and Streaming Modes
> User Customized Priority Control
Wireless LAN
> 802.11axe Wi-Fi 6E Module
> Supports IEEE 802.11a/b/g/n/ac/ax/axe
> Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
> 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
> Supports Bluetooth 5.3 + High speed class II
> Supports MU-MIMO
> Supports Killer LAN Software
* Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality.
Slots
> CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
> Chipset
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire™
* Supports NVMe SSD as boot disks
Storage
> CPU
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
> Chipset
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
RAID
> Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
> Chipset
- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
Connector
> 1 x SPI TPM Header
> 1 x Chassis Intrusion and Speaker Header
> 1 x RGB LED Header*
> 3 x Addressable LED Headers**
> 1 x CPU Fan Connector (4-pin)***
> 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
> 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
> 1 x 24 pin ATX Power Connector
> 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
> 1 x Front Panel Audio Connector
> 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
> 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
> 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
> 1 x Front Panel Type C USB 3.2 Gen1 Header
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
> 2 x Antenna Ports
> 1 x PS/2 Mouse/Keyboard Port
> 1 x HDMI Port
> 1 x DisplayPort 1.4
> 1 x USB 3.2 Gen1 Type-C Port
> 3 x USB 3.2 Gen1 Type-A Ports
> 2 x USB 2.0 Ports
> 1 x RJ-45 LAN Port
> HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor
> Micro ATX: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
