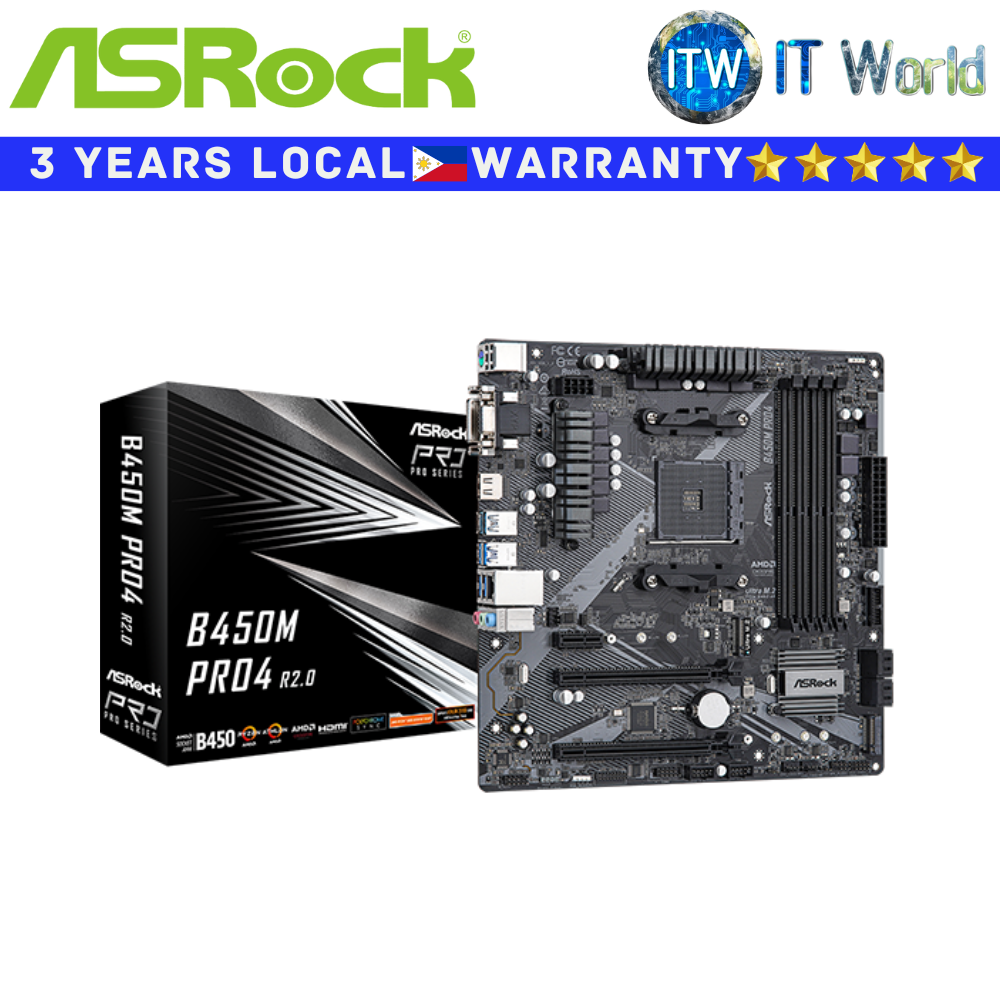

Product Name: Itw | ASRock Motherboard B450M Pro4 R2.0 microATX AM4 DDR4
Rev 2.00 Rev 2.03
> Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
> Supports DDR4 3200*
> 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
> AMD Quad CrossFireX™
> Graphics Output:HDMI, DVI-D, D-Sub
> 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)
> 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
> 2 USB 3.2 Gen2 (Rear Type-A+C)
> 6 USB 3.2 Gen1 (2 Front, 4 Rear)
> Realtek Gigabit LAN
*Actual support may vary by CPU.
Specification
Unique Feature
> ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
> ASRock Super Alloy
- Premium 42A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
> ASRock Ultra M.2 (PCIe Gen3 x4)
> ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
> ASRock Live Update & APP Shop
CPU
> Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
> Digi Power design
> 10 Power Phase design
Chipset
> AMD Promontory B450
Memory
> Dual Channel DDR4 Memory Technology
> 4 x DDR4 DIMM Slots
> AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
> AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
> Max. capacity of system memory: 128GB**
> Supports Extreme Memory Profile (XMP) memory modules
> 15μ Gold Contact in DIMM Slots
Audio
> 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec)
> Supports Surge Protection
LAN
> PCIE x1 Gigabit LAN 10/100/1000 Mb/s
> Realtek RTL8111H
> Supports Wake-On-LAN
> Supports Lightning/ESD Protection
> Supports Energy Efficient Ethernet 802.3az
> Supports PXE
Slots
> AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
> AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
> AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*
- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
- 1 x PCI Express 2.0 x1 Slot
- Supports AMD Quad CrossFireX™ and CrossFireX™
*Supports NVMe SSD as boot disks
Storage
> 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
> 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)**
> 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
*M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be disabled.
**Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Rear Panel I/O
> 1 x PS/2 Mouse/Keyboard Port
> 1 x D-Sub Port
> 1 x DVI-D Port
> 1 x HDMI Port
> 2 x USB 2.0 Ports (Supports ESD Protection)
> 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
> 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
> 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
> 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
> HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor
> Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
> Solid Capacitor design
