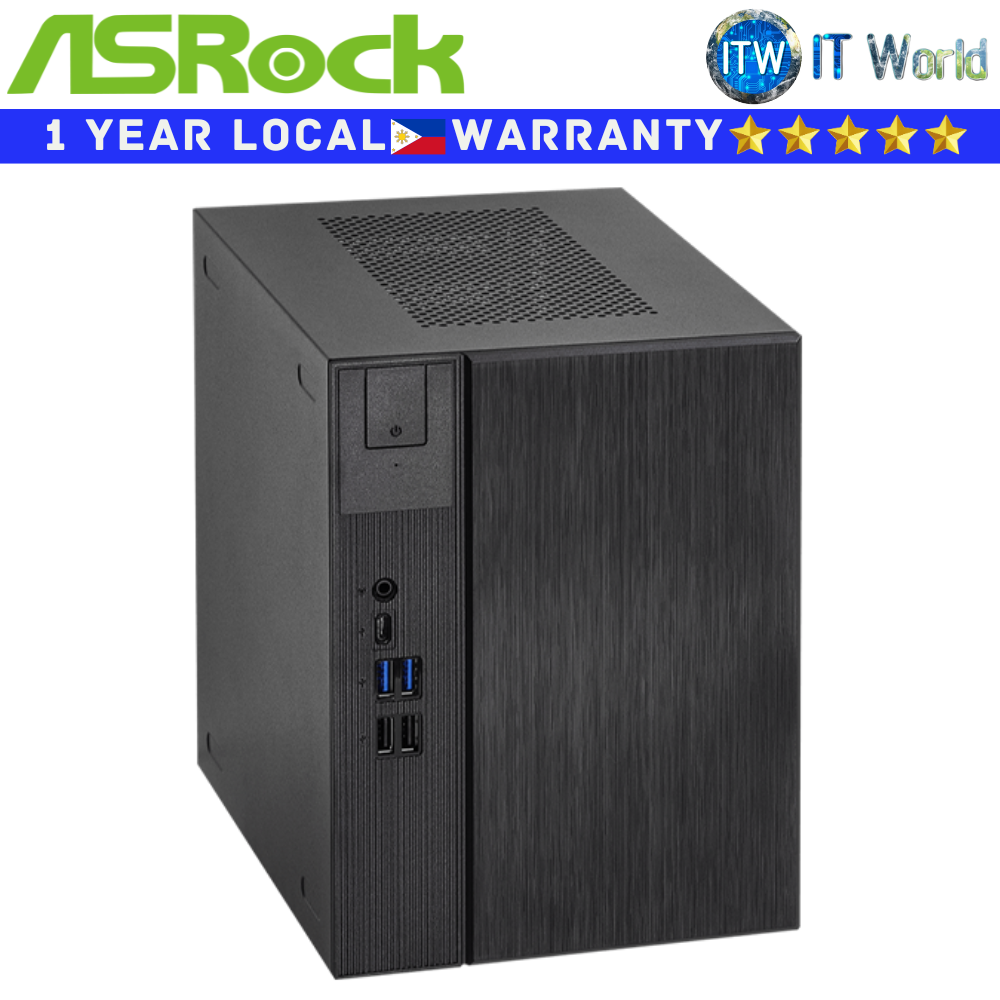

Product Name: Itw | ASRock DesKMeet X600 Series X600W AM5 Ryzen Supports AMD AM4/AM5 CPU Cooler
DeskMeet X600 Series
> Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors, up to 65W
> Supports MAX Height ≦ 54mm CPU Cooler
> Supports 4 x DDR5 DIMMs, up to 7200+ MHz (OC), 256GB
> 1 x PCIe 4.0 x16
> Graphics Output Options：2 x DisplayPort, HDMI
> 2.5G LAN
> 2 x SATA3
> 1 x Blazing M.2 (PCIe Gen5 x4)
> 1 x Hyper M.2 (PCIe Gen4 x4)
> 1 x USB 3.2 Gen1 Type-C Port
> 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
> 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
> 1 x M.2 Key-E for Wi-Fi
> 500W power supply (80+ Bronze)
> 8 Liter compact size
Specification
CPU
> Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors, up to 65W
Chipset
> AMD X600
Cooler
> Supports AMD AM4/AM5 CPU Cooler (Max. Height ≦ 54mm)
Memory
> Supports Dual Channel DDR5 Memory Technology
> 4 x DDR5 DIMM slots (Max. 256GB)
> Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
*Please refer to Memory Support List on ASRock's website for more information.
Graphics
> Supports a discrete Graphics card up to 20CM
Audio
> Realtek ALC897 Audio Codec
Storage
> 2 x SATA3 6.0Gb/s ports
> 1 x Blazing M.2 Socket (M2_1), supports type 2280 PCIe Gen5x4 (128 Gb/s) modes*
> 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
*Supports NVMe SSD as boot disks
To achieve PCIe Gen5 x4 speeds on the Blazing M.2 Socket (M2_1), a Raphael CPU is required.
LAN
> 2.5 Gigabit LAN (Dragon RTL8125BG)
Expansion Slots
> 1 x PCIe 4.0 x 16
> 1 x M.2 (key E 2230) slot for Wi-Fi + BT Module
Front I/O
> 1 x Headphone/Headset Jack
> 1 x USB 3.2 Gen1 Type-C
> 2 x USB 3.2 Gen1 Type-A
> 2 x USB 2.0 Type-A
Rear I/O
> 2 x DisplayPort 1.4
> 1 x HDMI
> 2 x USB 2.0 Type-A
> 2 x USB 3.2 Gen1 Type-A
> 1 x RJ-45 LAN Port
> BIOS Flashback Switch
> HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
> 1 x Chassis Intrusion Header
> 1 x CPU Fan Connector (4-pin)
> 1 x Chassis/Water Pump Fan Connector (4-pin)
> 1 x 24 pin ATX Power Connector
> 1 x 8 pin 12V Power Connector
> 1 x Front Panel Header
> 1 x USB 2.0 Header (Support 2 USB 2.0 ports) (Supports ESD Protection) Volume (liters)
> 8L
Power Unit
> 500W power supply (80+ Bronze, peak 550W)
Accessory
> Quick Installation Guide
> 2 x SATA Data Cables
> 1 x Screws Package
Dimension
> 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
> 168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)
OS
> Microsoft® Windows® 10 64-bit / 11 64-bit
