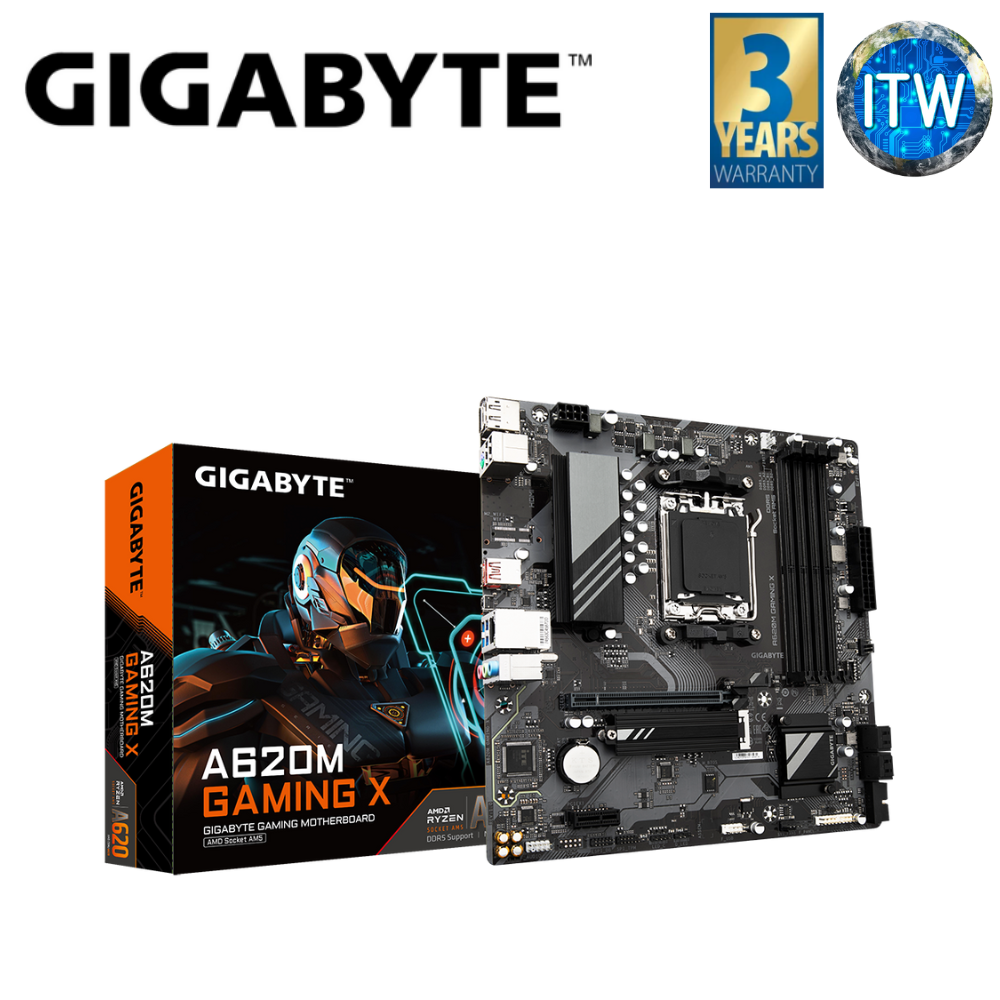

Product Name: ITW | Gigabyte A620M Gaming X micro-ATX AM5 DDR5 Motherboard
■ AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors
■ Unparalleled Performance: 8+2+1 Phases Digital VRM Solution
■ Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
■ SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
■ Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
PCIe x16 EZ-Latch with Quick Release & Screwless Design
■ Fast Networks: GbE LAN
■ Extended Connectivity: DP, HDMI
■ Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
■ Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification
CPU
✎ AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipset
✎ AMD A620
Memory
✎ Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
✎ 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
✎ Dual channel memory architecture
✎ Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
✎ Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics
✎ Integrated Graphics Processor
■ 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
■ 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Audio
✎ Realtek® Audio CODEC
✎ High Definition Audio
✎ 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
✎ Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
✎ CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
✎ Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
✎ CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
✎ Chipset: 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
✎ CPU
■ 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
■ 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
■ 1 x USB 3.2 Gen 1 port on the back panel
✎ Chipset
■ 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
■ 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
■ 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
✎ 1 x 24-pin ATX main power connector
✎ 1 x 8-pin ATX 12V power connector
✎ 1 x CPU fan header
✎ 2 x system fan headers
✎ 1 x addressable LED strip header
✎ 1 x RGB LED strip header
✎ 1 x M.2 Socket 3 connector
✎ 4 x SATA 6Gb/s connectors
✎ 1 x front panel header
✎ 1 x front panel audio header
✎ 1 x USB Type-C® header, with USB 3.2 Gen 1 support
✎ 1 x USB 3.2 Gen 1 header
✎ 1 x USB 2.0/1.1 header
✎ 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
✎ 1 x Clear CMOS jumper
Back Panel Connectors
✎ 1 x PS/2 keyboard/mouse port
✎ 1 x USB Type-C® port, with USB 3.2 Gen 1 support
✎ 1 x USB 3.2 Gen 2 Type-A port (red)
✎ 2 x USB 3.2 Gen 1 ports
✎ 2 x USB 2.0/1.1 ports
✎ 1 x HDMI port
✎ 1 x DisplayPort
✎ 1 x Q-Flash Plus button
✎ 1 x RJ-45 port
✎ 3 x audio jacks
I/O Controller
✎ iTE® I/O Controller Chip
H/W Monitoring
✎ Voltage detection
✎ Temperature detection
✎ Fan speed detection
✎ Water cooling flow rate detection
✎ Fan fail warning
✎ Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
✎ 1 x 256 Mbit flash
✎ Use of licensed AMI UEFI BIOS
✎ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
✎ Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
✎ Support for Q-Flash
✎ Support for Q-Flash Plus
Bundled Software
✎ Norton® Internet Security (OEM version)
✎ LAN bandwidth management software
Operating System
✎ Support for Windows 11 64-bit
✎ Support for Windows 10 64-bit
Form Factor
✎ Micro ATX Form Factor; 24.4cm x 24.4cm
