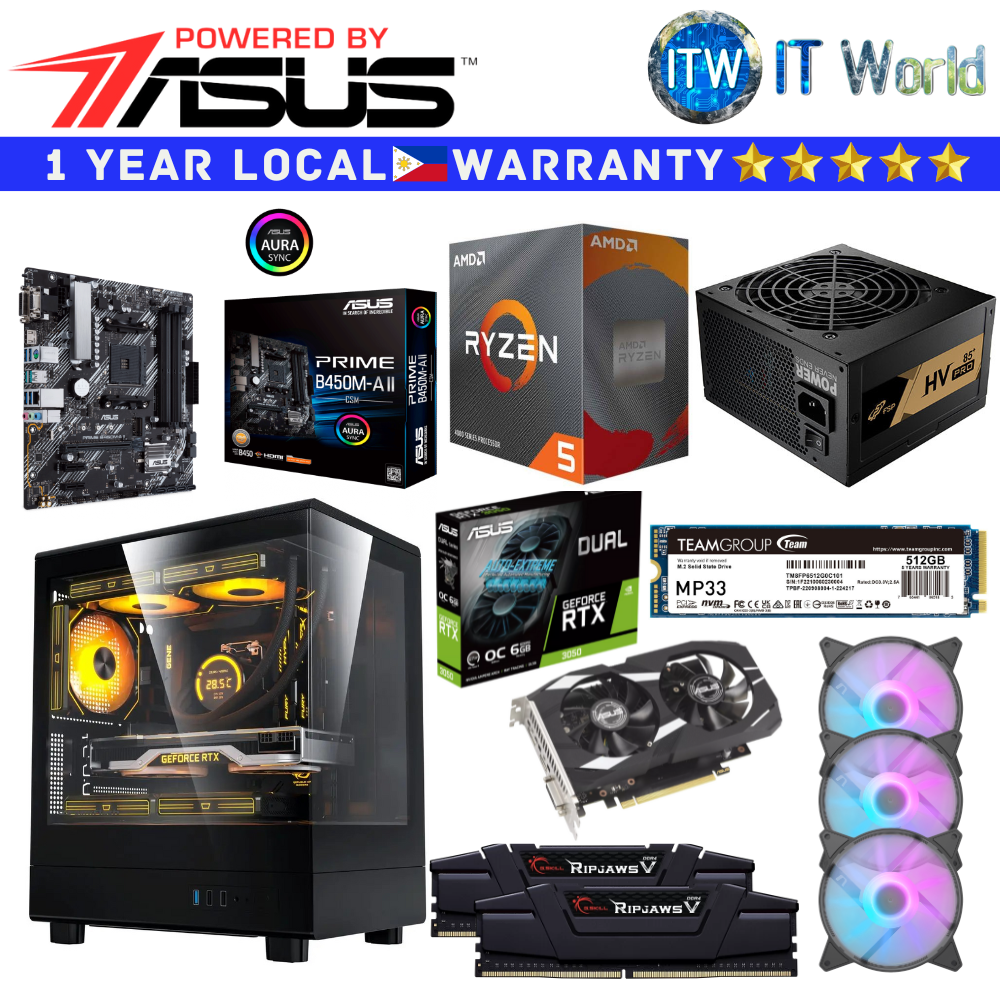

Product Name: PC Desktop Computer Set Powered by ASUS C AMD Ryzen 5 4500 Prime B450M-A II/CSM DDR4
- AMD Ryzen 5 4500 Processor -
> # of CPU Cores: 6
> Multithreading (SMT): Yes
> # of Threads: 12
> Max. Boost Clock: Up to 4.1GHz
> Base Clock: 3.6GHz
> L1 Cache: 384KB
> L2 Cache: 3MB
> L3 Cache: 8MB
> Default TDP: 65W
> Processor Technology for CPU Cores: TSMC 7nm FinFET
> CPU Compute Die (CCD) Size: 180mm²
> Package Die Count: 1
> Unlocked for Overclocking: Yes
> CPU Socket: AM4
> Socket Count: 1P
> Supporting Chipsets: X570, X470, X370, B550, B450, B350, A520, A320
> CPU Boost Technology: Precision Boost 2
> Instruction Set: x86-64
> Supported Extensions: AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
> Thermal Solution (PIB): AMD Wraith Stealth
> Max. Operating Temperature (Tjmax): 95°C
> Launch Date: 4/4/2022
> *OS Support
- Windows 11 - 64-Bit Edition
- Windows 10 - 64-Bit Edition
- RHEL x86 64-Bit
- Ubuntu x86 64-Bit
- *Operating System (OS) support will vary by manufacturer.
- ASUS Prime B450M-A II/CSM -
CPU
> AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
Chipset
> AMD B450
Memory
> 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
> 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
> Dual Channel Memory Architecture
> ECC Memory (ECC mode) support varies by CPU.
Back I/O Ports
> 1 x PS/2 keyboard/mouse combo port(s)
> 1 x DVI-D
> 1 x D-Sub
> 1 x HDMI
> 1 x LAN (RJ45) port(s)
> 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
> 4 x USB 3.2 Gen 1 (blue) Type-A
> 3 x Audio jack(s)
> 1 x BIOS FlashBack™ Button(s)
Form Factor
> mATX / 9.6 inch x 9.5 inch (24.4 cm x 24 cm)
- Darkflash DB330M -
Key Specs
* Motherboard Support: M-ATX, ITX
* Dimensions: 400 x 218 x 333 mm
* Compatibility & Clearance
> Max GPU Clearance: 305mm
> PCIE Slot: 4
> Max CPU Cooler Clearance: 180mm
* Drive Bays: SSD / HDD: 2 / 1
* Fan Support
> Top: 120mm*2, 140mm*2
> Rear: 120mm*1
> Bottom: 120mm*2
* Radiator Support
> Top: 240mm
> Rear: 120mm
* I/O: USB3.0*1, USB2.0*2, HD Audio, Power
- FSP650-51AAC -
* Rated Output Power: 650W
* Form Factor: ATX
* 80 PLUS Certification: 230V EU Bronze
* Input Voltage: 200-240V
* Input Current: 5A
* Input Frequency: 50-60Hz
* PFC: Active PFC
* Efficiency: ≥88% at typical load
* Fan Type: Sleeve Fan, 120mm
* Protection: OCP, OVP, OPP, SCP
- F4-3200C16D-16GVKB -
* Memory Type: DDR4
* Capacity: 16GB (8GBx2)
* Multi-Channel Kit: Dual Channel Kit
* OC Profile Support: Intel XMP 2.0
* Tested Speed (XMP): 3200 MT/s
* Tested Latency (XMP): 16-18-18-38
* Tested Voltage (XMP): 1.35V
* Registered/Unbuffered: Unbuffered
* Error Checking (ECC): Non-ECC
* SPD Speed (Default): 2133 MT/s
* SPD Voltage (Default): 1.20V
* Fan Included: No
* Features: Intel XMP 2.0 (Extreme Memory Profile) Ready
- TM8FP6512G0C101 -
* Model: MP33 M.2 PCIe SSD
* Capacity: 512GB
* Sequential Read: 1700 MB/s
* Sequential Write: 1400 MB/s
* Terabyte Written: 350TBW
* DRAM Cache: NO
* Interface: PCIe Gen3x4 with NVMe
* Voltage: DC +3.3V
* Operation Temperature: 0˚C ~ 70˚C
* Storage Temperature: -40˚C ~ 85˚C
* Humidity: RH 90% under 40°C (operational)
* Vibration: 80Hz~2000Hz/20G
* Shock: 1,500G/0.5ms
* MTBF: 1,500,000 Hours
* Operating System
> System Requirements
- Windows 11 / 10 / 8.1 / 8 / 7
- Linux 2.6.33 or later
- Darkflash C6 3in 1 Black -
* Fan Speed: 1100±10%RPM
* Noise Level: 20.3dBA
* Air Flow: 36.54CFM
* Static Pressure: 0.74mm H²O
* Bearing Type: Hydraulic Bearing
* MTTF: 20,000 hrs
Fan Size
* Length: 120mm
* Width: 120mm
* height: 25mm
** Graphic Card Variation ***
DUAL-RTX3050-O6G
DUAL-RX6600-8G-V3
