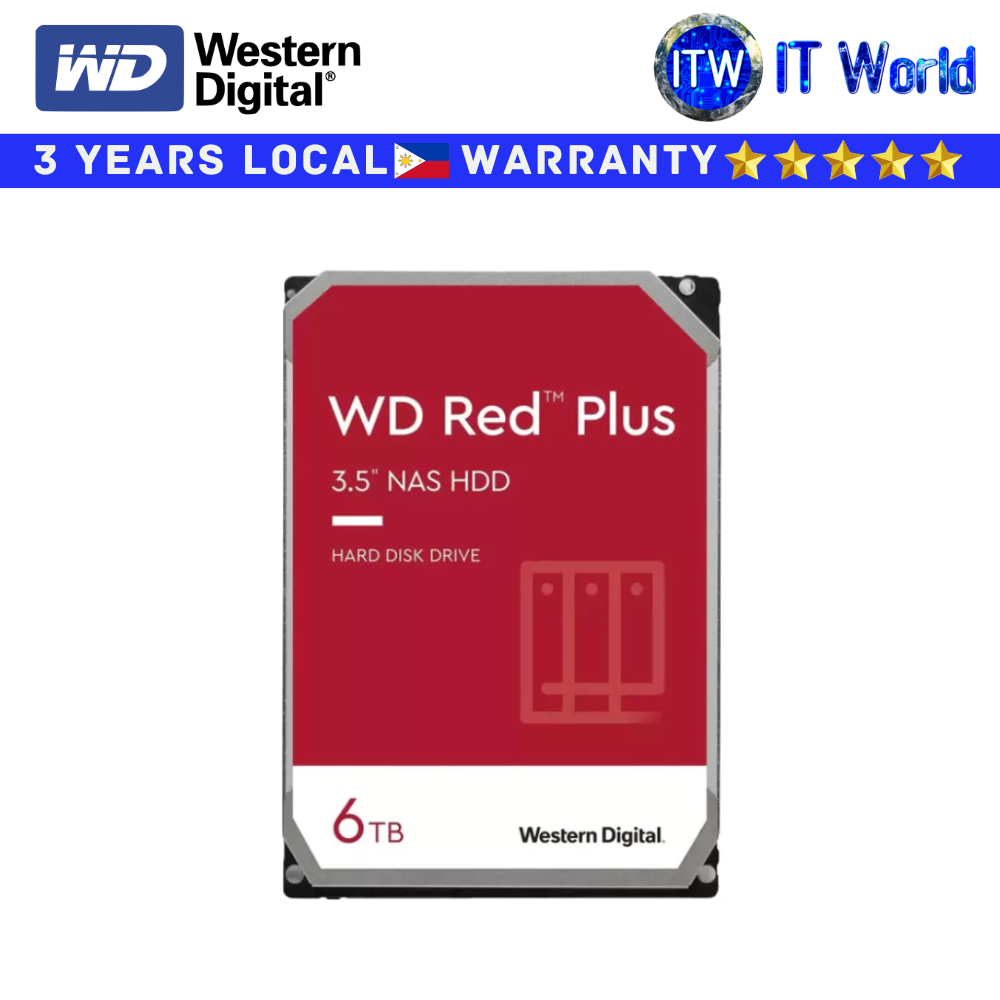

Product Name: Itw | Western Digital Red 6TB SATA 6Gb/s 256MB 5400RPM NAS HDD (WD60EFPX)
Product Highlights
■ Available in capacities ranging from 1-14TB with support for NAS system with up to 8 bays
■ Supports up to 180TB/year workload rate
■ NASware™ firmware for compatibility
■ Built for small or medium business NAS systems in a 24/7 environment
■ 3-year limited warrant
Specification
✎ Model Number: WD60EFPX
✎ Recording technology: CMR
✎ Interface: SATA 6 Gb/s
✎ Formatted capacity: 6TB
✎ Form factor: 3.5-inch
✎ Native command queuing: Yes
✎ Advanced Format (AF): Yes
✎ RoHS compliant: Yes
Performance
✎ Internal transfer rate up to: 180 MB/s
✎ Cache (MB): 256 MB
✎ RPM: 5400
Reliability/Data Integrity
✎ Load/unload cycles: 600,000
✎ Non-recoverable errors per bits read: <1 in 10
✎ MTBF (hours): 1,000,000
✎ Workload rate (TB/year): 180
✎ Limited warranty (years): 3
Power Management
✎ 12VDC ±5% (A, peak): 1.75
✎ 5VDC ±5% (A, peak)
✎ Average power requirements (W)
■ Read/write: 4.7
■ Idle: 3.1
■ Standby and sleep: 0.3
Environmental Specifications
✎ Temperature (°C)
■ Operating: 0 to 65
■ Non-operating: -40 to 70
✎ Shock (Gs)
■ Operating, (2 ms, write): 70
■ Operating, (2 ms, read): 70
■ Non-operating (2 ms): 250
✎ Acoustics (dBA)
■ Idle: 23
■ Seek (average): 27
Physical Dimensions
✎ Height (in./mm, max): 1.028/26.1
✎ Length (in./mm, max): 5.787/147
✎ Width (in./mm, ± .01 in.): 4/101.6
✎ Weight (lb/kg , ± 3%): 1.26/0.57
