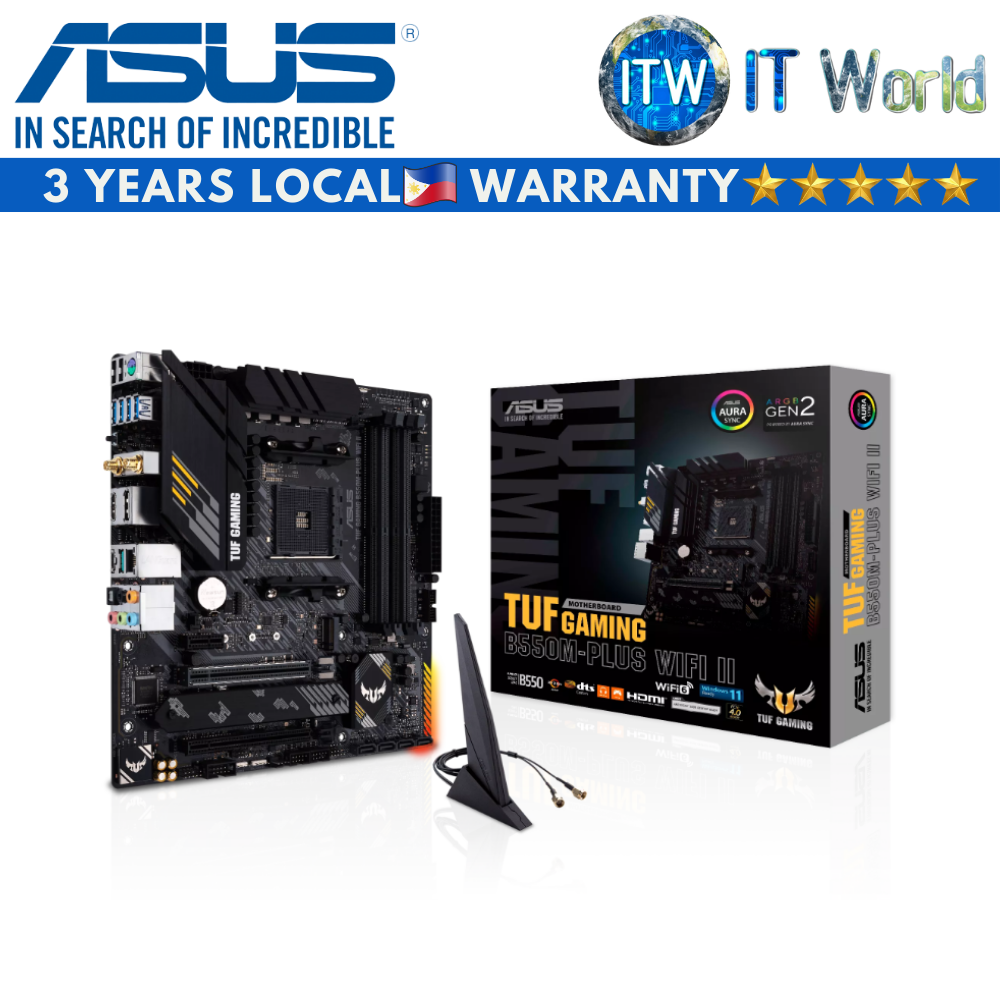

Product Name: Itw | Asus Tuf Gaming B550M-Plus Wifi II micro-ATX DDR4 Motherboard
AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C®, BIOS FlashBack™, and Aura Sync RGB lighting support
■ AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
■ Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durability
■ Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
■ Ultrafast connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C® support
■ Made for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard
■ Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Specification
Model
✎ TUF GAMING B550M-PLUS WIFI II
CPU
✎ AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset
✎ B550
Memory
✎ 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*
✎ Dual Channel Memory Architecture
* ECC Memory (ECC mode) support varies by CPU.
Graphics
✎ 1 x DisplayPort**
✎ 1 x HDMI®port***
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.2.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
✎ AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
■ 1 x PCIe 4.0 x16 slot (supports x16 mode)*
✎ AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
■ 1 x PCIe 3.0 x16 slot (supports x16 mode)*
✎ AMD B550 Chipset
■ 1 x PCIe 3.0 x16 slot (supports x4 mode)**
■ 1 x PCIe 3.0 x1 slot**
* Support PCIe bifurcation for RAID on CPU function.
** PCIEX16_2 will run x2 mode when PCIEX1 slot is used.
Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
✎ AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
■ M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
✎ AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
■ M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
✎ AMD B550 Chipset
■ M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
■ 4 x SATA 6Gb/s ports
■ Support RAID 0, 1, 10
Ethernet
✎ TUF LANGuard
Wireless & Bluetooth
✎ 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
USB
✎ Rear USB: Total 8 ports
■ 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
■ 4 x USB 3.2 Gen 1 ports (4 x Type-A)
■ 2 x USB 2.0 ports (2 x Type-A)
✎ Front USB: Total 6 ports
■ 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
■ 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
✎ Realtek 7.1 Surround Sound High Definition Audio CODEC
■ Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
■ Supports up to 24-Bit/192 kHz playback
✎ Audio Features
■ Audio Shielding
■ Rear optical S/PDIF out port
■ Premium audio capacitors
■ Dedicated audio PCB layers
■ Audio cover
Back Panel I/O Ports
✎ 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
✎ 4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™)
✎ 2 x USB 2.0 ports (2 x Type-A)
✎ 1 x DisplayPort
✎ 1 x HDMI® port
✎ 1 x Wi-Fi Module
✎ 1 x Realtek 2.5Gb Ethernet port
✎ 5 x Audio jacks
✎ 1 x Optical S/PDIF out port
✎ 1 x BIOS FlashBack™ button
✎ 1 x PS/2 Keyboard/Mouse combo port
Form Factor
✎ microATX / 24.4cm x 24.4cm
