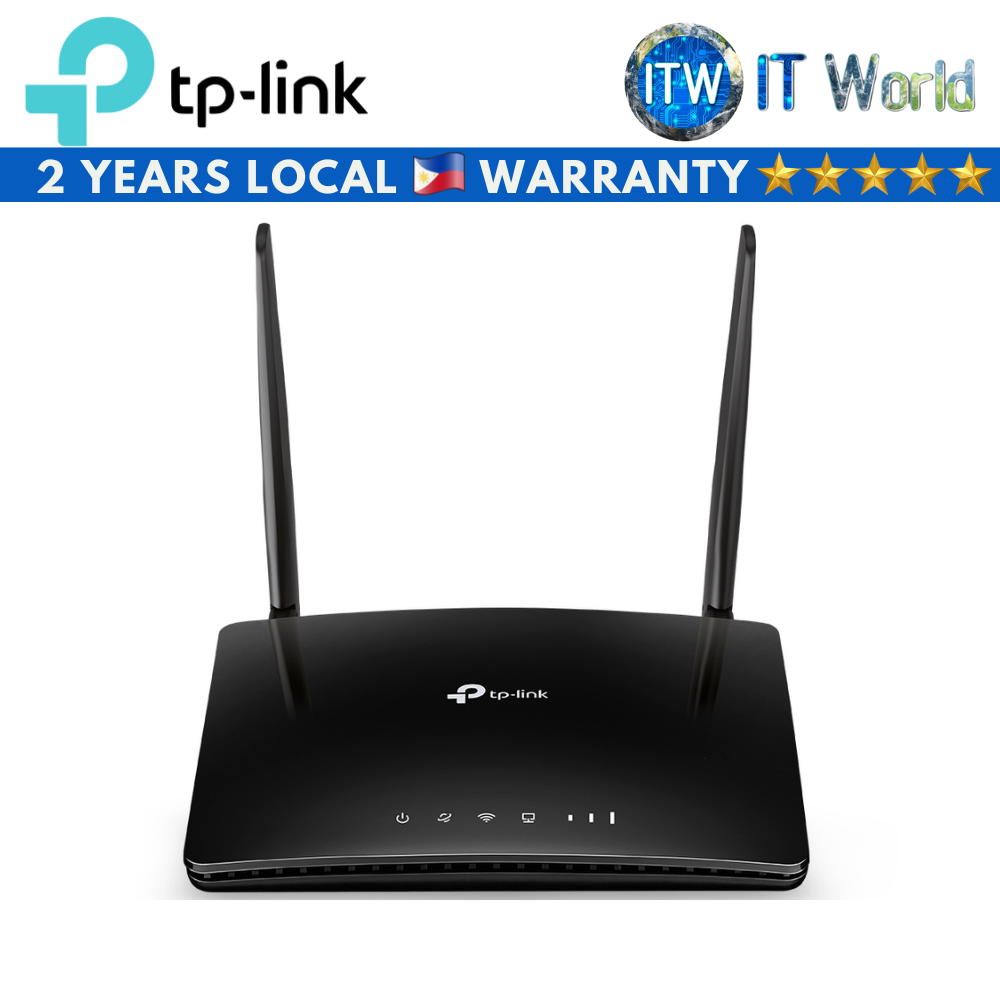

Product Name: ITW | TP-Link TL-MR150 300Mbps Wireless N 4G LTE Router
300Mbps Wireless N 4G LTE Router
* Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
* Plug a SIM card and play – no configurations needed, compatibility of * SIM cards in 100+ countries are assured by years of field tests
* Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
* Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Specification
HARDWARE FEATURES
* Interface: 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 Nano SIM Card Slot
* Button: WPS/RESET Button, WiFi ON/OFF Button, POWER ON/OFF Button
* External Power Supply: 9V/0.85A
* Dimensions ( W x D x H ): 7.95 × 5.55 × 1.32 in. (202 × 141 × 33.6 mm)
* Antenna Type: 2 × Detachable External 4G LTE Antennas
WIRELESS FEATURES
* Wireless Standards: IEEE 802.11b, 802.11g, 802.11n
* Frequency: 2.4 GHz
* Signal Rate: 300 Mbps at 2.4 GHz
* Reception Sensitivity
- 11g 54M: -74dBm
- 11n HT20: -71dBm
- 11n HT40: -67dBm
* Transmit Power: CE: < 20 dBm(2.4 GHz)
* Wireless Functions
- Enable/Disable Wireless Radio, Wireless Schedule, WMM,
- Wireless Statistics
* WAN Failover: Yes
* Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
* Network Type
- 4G: FDD-LTE Cat4 (800/900/1800/2100/2600MHz),
- TDD-LTE (1900/2300/2500/2600MHz)
- 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz)
SOFTWARE FEATURES
* Operating Modes: 3G/4G Router, Wireless Router
* Management: Access Control, Local Management, Remote Management
* WAN Connection Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
* DHCP: Server, Client, DHCP Client List, Address Reservation
* Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
* Dynamic DNS: DynDns, NO-IP
* VPN: PPTP VPN, IPSec VPN , OpenVPN
* Access Control: Parental Controls, Local Management Control, Host List, Access Control
* Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
* Protocols: IPv4, IPv6
* Guest Network: 2.4GHz guest network
OTHERS
* Certification: CE, RoHS
* Package Contents
- 300Mbps Wireless N 4G LTE Router TL-MR150
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
* System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,
- MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers
- Nano SIM Card
* Environment
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
