Sapphire Nitro+ AMD Radeon RX 6800 XT 16GB GDDR6 Gaming Graphic Card (SPR-11304-02-20G)
This product is no longer available.
Chat with Us!
Share this product:
- GPU: Boost Clock: Up to 2360 MHz
- GPU: Game Clock: Up to 2110 MHz
- Memory: 16GB/256 bit DDR6. 16 Gbps Effective
- Stream Processors: 4608
- RDNA™ 2 Architecture
- Ray Accelerator: 72

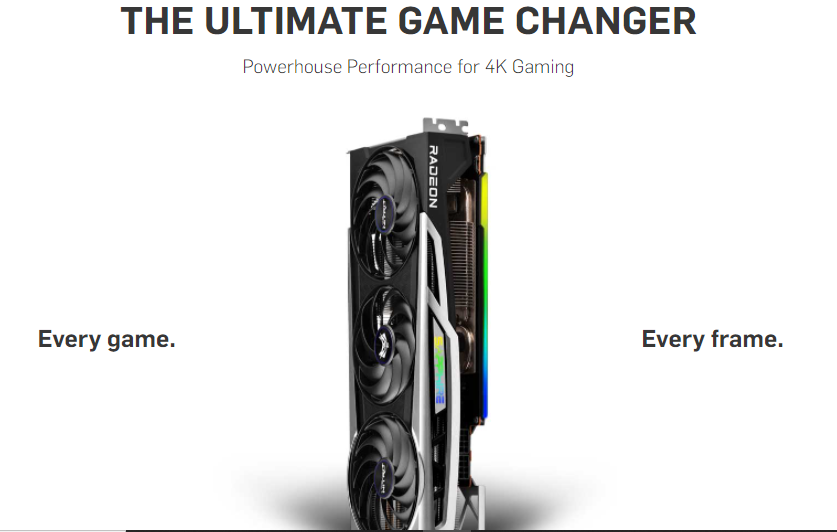

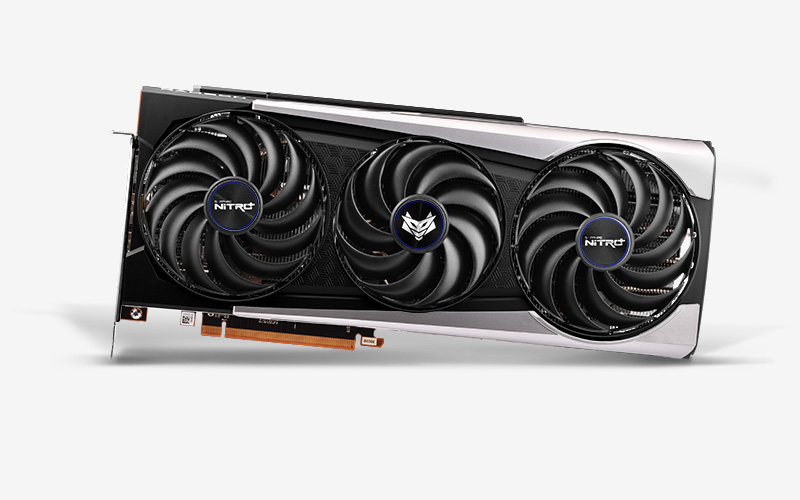

SAPPHIRE NITRO+ AMD Radeon™ RX 6800 XT
The NITRO+ AMD Radeon™ RX 6800 XT delivers powerhouse 4K gaming performance with vivid visuals for an elevated experience. The all-new innovative Wave Fin Design working in tandem with our V-Shape Fin Design for GPU Cooling reduces wind friction and centralizes airflow for optimal heat dissipation and a virtually silent system. Cutting edge Memory & VRM Cooling with Heat-Pipes and next gen K6.5 Memory Pad ensures you can push your performance to new limits while keeping the NITRO+ AMD Radeon™ RX 6800 XT components icy cool. The brand new Hybrid Fan Design combines the tranquility and strong air pressure features that exhibit ultimate levels of downward air pressure through the fan while keeping fan noise low. Incredible ARGB Lighting across the graphics card using our SAPPHIRE TriXX software fused with beautiful aesthetic styling will ensure the NITRO+ AMD Radeon™ RX 6800 XT is a stunning addition to every enthusiast gamer’s PC. NITRO Charge your PC with the NITRO+ AMD Radeon™ RX 6800 XT and elevate your gaming experience to the next level!
SPECS:
GPU
Engine Clock
- Boost Clock: Up to 2360 MHz
- Game Clock: Up to 2110 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
Infinity Cache
Ray Accelerators
Memory Size/Bus
Memory Clock
Displays
Resolution
- HDMI™: 7680×4320
- DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0
Output
- 1x HDMI
- 3x DisplayPort
BIOS Support
- Dual UEFI
Game Index
4K
Sapphire Features
- Dual BIOS
- Max Boost
- TriXX Software Switch
- Premium Digital Power Design
- Fuse Protection
- Tri-X Cooling Technology
- Intelligent Fan Control
- Precision Fan Control
- Backplate with ARGB
- Two-Ball Bearing Fans
- Hybrid Fan Blade
- Wave Fin Design
- V Shape Fin Design for GPU Cooling
- Integrated Cooling Module
- K6.5 Memory Pad
- TriXX Supported
- Fan Check
- Fan Quick Connect
- TriXX Boost
- NITRO Glow
- External RGB LED MB Synchronization
AMD Features
- AMD RDNA™ 2 Gaming Architecture
- DirectX® 12 Ultimate
- Hardware Raytracing
- 7nm GPU
- GDDR6 Memory
- PCI® Express 4.0 Support
- AMD FreeSync™ Technology
- DisplayPort™ 1.4 with DSC
- HDMI™
- Video Streaming up to 8K
- Radeon™ VR Ready Premium
- AMD FidelityFX
- Radeon™ Image Sharpening
- Radeon™ Anti-Lag
- Radeon™ Software
- Game Driver Optimizations
- High Performance 4K Gaming
Cooling
3 Fans
Form Factor
Power Consumption
- 350W
OS
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
- Minimum 850 Watt Power Supply
- 2 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
