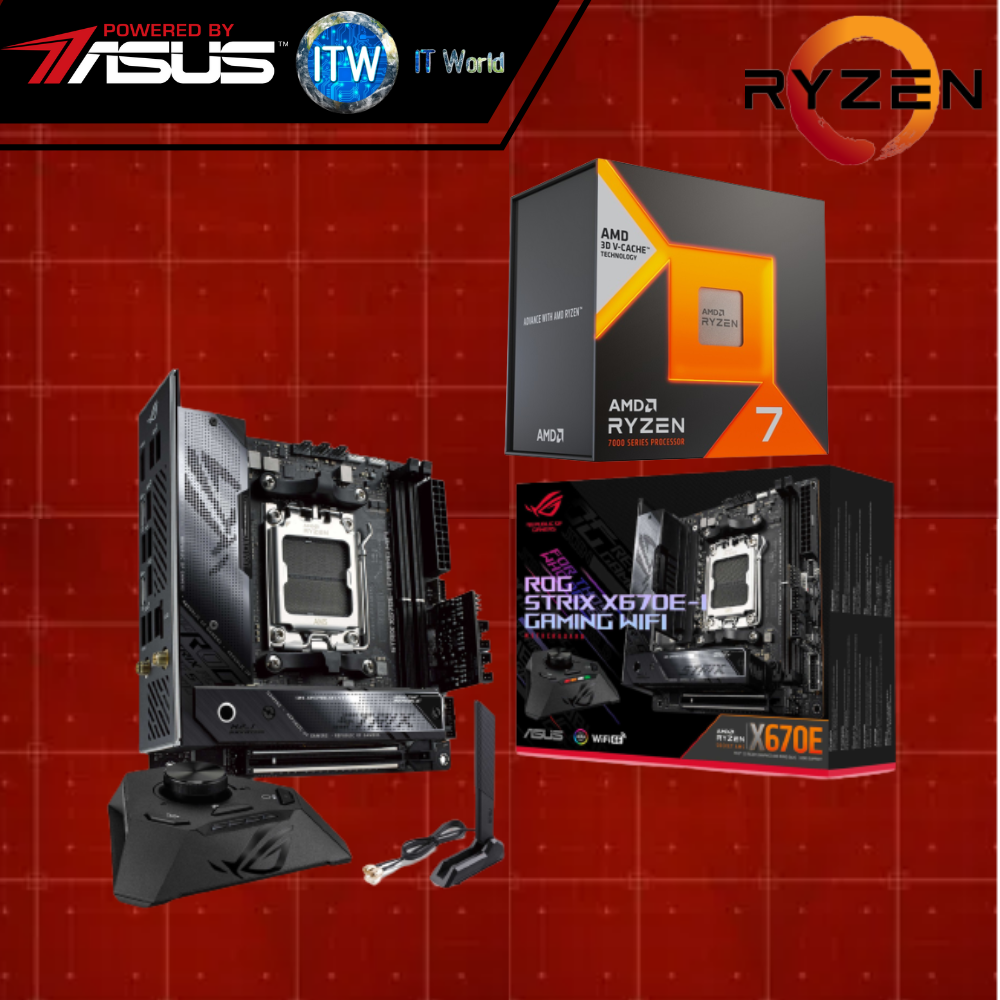

Product Name: ITW | AMD Ryzen 7 7800X3D Desktop Processor w/ ASUS ROG Strix X670E-I Gaming WiFi Motherboard Bundle
■ ■ AMD Ryzen 7 7800X3D 8-Core, 16-Thread Desktop Processor without Cooler ■ ■
Specification
General
✎ Platform: Desktop
✎ Product Family: AMD Ryzen™ Processors
✎ Product Line: AMD Ryzen™ 7 Processors
✎ # of CPU Cores: 8
✎ # of Threads: 16
✎ Max. Boost Clock: Up to 5.0GHz
✎ Base Clock: 4.2GHz
✎ L1 Cache: 512KB
✎ L2 Cache: 8MB
✎ L3 Cache: 96MB
✎ Default TDP: 120W
✎ Processor Technology for CPU Cores: TSMC 5nm FinFET
✎ CPU Socket: AM5
✎ Thermal Solution (PIB): Not included
✎ Max. Operating Temperature (Tjmax): 89°C
✎ Launch Date: 4/6/2023
✎ *OS Support
■ Windows 11 - 64-Bit Edition
■ Windows 10 - 64-Bit Edition
■ RHEL x86 64-Bit
■ Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
✎ PCI Express® Version: PCIe® 5.0
✎ System Memory Type: DDR5
✎ Memory Channels: 2
✎ Max Memory Speed
■ 2x1R DDR5-5200
■ 2x2R DDR5-5200
■ 4x1R DDR5-3600
■ 4x2R DDR5-3600
Graphics Capabilities
✎ Graphics Model: AMD Radeon™ Graphics
✎ Graphics Core Count: 2
✎ Graphics Frequency: 2200 MHz
Product IDs
✎ Product ID Boxed: 100-100000910WOF
✎ Product ID Tray: 100-000000910
Key Features
✎ Supported Technologies
■ AMD EXPO™ Technology
■ AMD Ryzen™ Technologies
■ ■ ASUS ROG Strix X670E-I Gaming WiFi Mini-ITX AM5 DDR5 Motherboard ■ ■
Specification
CPU
✎ AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Chipset
✎ AMD X670
Memory
✎ 2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory*
✎ Dual Channel Memory Architecture
✎ Supports AMD EXTended Profiles for Overclocking (EXPO™)
✎ OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
✎ 1 x HDMI® port*
✎ 2 x USB4® ports support USB Type-C® display outputs**
*Supports 4K@60Hz as specified in HDMI 2.1.
** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
✎ AMD Ryzen™ 7000 Series Desktop Processors
■ 1 x PCIe 5.0 x16 slot(s)
Storage
Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
✎ AMD Ryzen™ 7000 Series Desktop Processors
■ M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
✎ AMD X670 Chipset
■ M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
■ 2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports
Wireless & Bluetooth
✎ Wi-Fi 6E
✎ 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
✎ Supports 2.4/5/6GHz frequency band*
✎ Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB
✎ Rear USB (Total 10 ports)
■ 2 x USB4® port(s) with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
■ 5 x USB 3.2 Gen 2 port(s) (5 x Type-A)
■ 3 x USB 2.0 port(s) (3 x Type-A)
✎ Front USB (Total 3 ports)
■ 1 xUSB 3.2 Gen 2 connector (supports USB Type-C®)
■ 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
✎ ROG STRIX HIVE (Total 2 ports)
■ 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
■ 1 x USB 2.0 port(s) (1 x Type-A)
✎ ROG FPS-II C (Total 3 ports)
■ 2 x USB 2.0 header(s) additional 3 USB 2.0 ports**
Audio
✎ ROG High Definition Audio CODEC ALC4050
■ Supports: Jack-detection
■ High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
■ Supports up to 32-Bit/384 kHz playback
✎ Audio Features
■ ROG Hyper-Grounding Technology
■ ESS® SABRE9260Q DAC
■ Silver-plated audio jacks
■ Optical S/PDIF out port & USB Type-C® port with indepent power solution
■ Dedicated audio PCB layers
*All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE
Back Panel I/O Ports
✎ 2 x USB4® port(s) with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
✎ 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1 port supports ROG STRIX HIVE)
✎ 3 x USB 2.0 port(s) (3 x Type-A)
✎ 1 x HDMI® port
✎ 1 x Wi-Fi Module
✎ 1 x Intel® I225-V 2.5Gb Ethernet port
Form Factor
✎ Mini-ITX / 6.7 inch x 6.7 inch( 17cm x 17cm)
