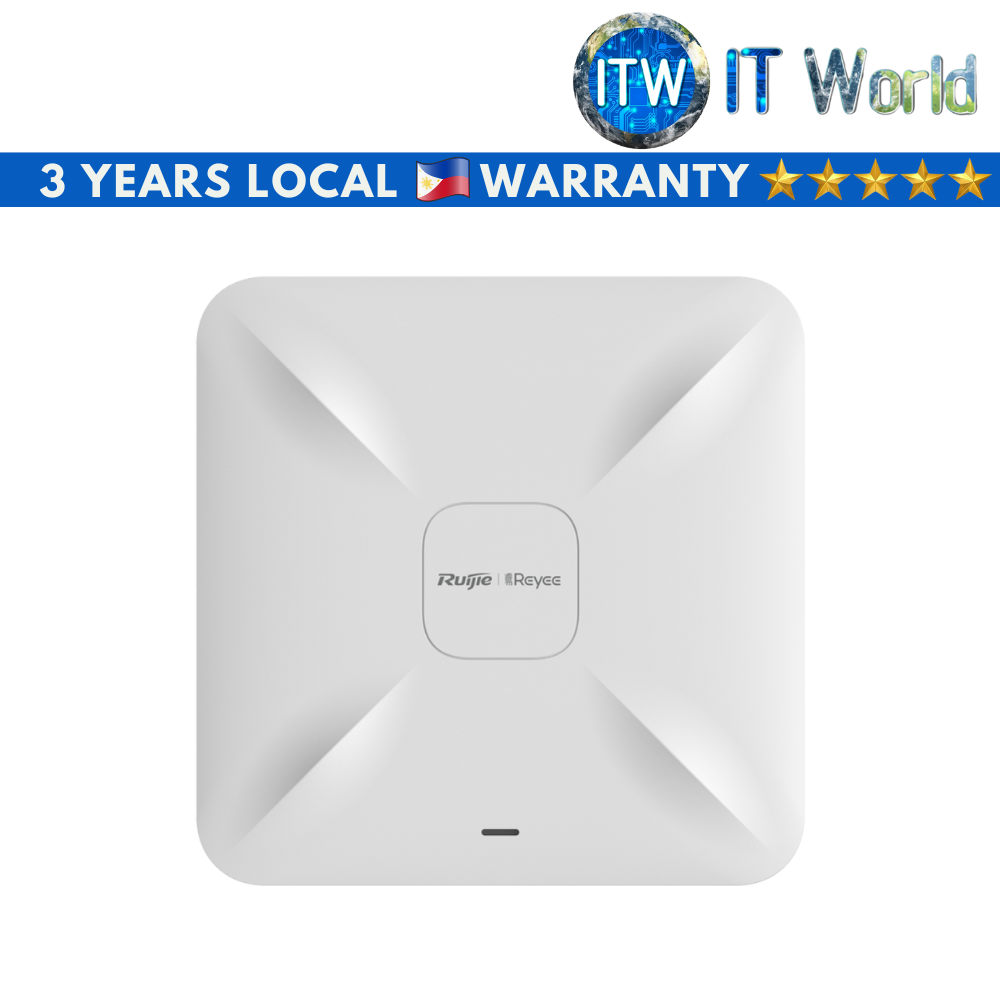

Product Name: ITW | Ruijie RG-RAP2200(E) AC1300 Dual Band Ceiling Mount Access Point
Highlight Features
■ Auto-provisioning via Self-Organizing Network:Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access;
■ Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
■ More LAN Port: Two LAN interfaces are provided to support more services;
■ Seamless layer 3 roaming
■ Industrial Design: Robust casing, Provide better strength and safety for products;
Specification
✎ Model: RG-RAP2200(E)
Hardware specifications
✎ Radio: Dual-stream dual-band
✎ Protocol: Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
✎ Operating Bands
■ 802.11b/g/n: 2.4G ~ 2.4835GHz
■ 802.11a/n/ac: 5G:5.150~5.250GHz,5.725~5.850GHz (country specific)
✎ Antenna: Internal antennas(2.4G: 2dBi,5G: 2dBi)
✎ Spatial Streams: 2.4G 2x2MIMO 5G 2x2MIMO
✎ Max Throughput
■ Up to 400Mbps at 2.4G
■ Up to 867Mbps at 5G
■ 1.267Gbp per AP
✎ Modulation
■ OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
■ DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
■ MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
✎ Receive Sensitivity
■ 11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
■ 11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)
■ 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
■ 11ac HT20: -83dBm (MCS0), -57dBm (MCS9)
■ 11ac HT40: -79dBm (MCS0), -57dBm (MCS9)
■ 11ac HT80: -76dBm (MCS0), -51dBm (MCS9)
✎ Maximum Transmit Power
■ 5.725~5.850GHz:≤20dBm (EIRP)
■ 5.150~5.250GHz:≤20dBm (EIRP)
■ 2.4~2.4835GHz:≤20dBm (EIRP)
✎ Adjustable Power: 1dBm
✎ Dimensions: 194mm×194mm×35mm (excluding mounting kits)
✎ Weight: 0.45kg (excluding mounting kits)
✎ Service Ports: 2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE
✎ Management Port: NA
✎ LED Indicator: NA
✎ Power Supply: Single indicator (green light)
✎ Power Consumption
■ Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)
■ 802.3af/802.3at PoE
✎ Environment
■ ≤ 12.95W
■ Operating temperature: 0°C~40°C
■ Storage temperature: -40°C~70°C
■ Operating humidity: 5%~95%(non-condensing)
✎ Installation: Storage humidity: 5%~95%(non-condensing
✎ Safety Standard: GB4943, IEC 62368-1
✎ EMC Standard: GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035
✎ Vibration Standard: IEC61373
✎ Radio Standard: EN300 328, EN301 893
✎ MTBF: >250000H
Software Features
✎ Operating Mode: AP mode and routing mode
✎ WLAN
■ Maximum number of clients: 110
■ Recommended number of clients: 80 (16 at 2.4GHz, 64 at 5GHz)
■ Up to 8 SSIDs
■ Support SSID hiding
■ Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
■ SSID-based and radio-based STA limit
■ Support Layer 2 user isolation
✎ Roaming: Support Layer 2 and Layer 3 roaming
✎ Security
■ Support PSK authentication
■ Support static blacklist and whitelist
■ Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
✎ Routing: Support static IP address, DHCP, PPPoE Dial Up
✎ Management and maintenance
■ Support unified networking of all network equipment
■ Support local or remote management with Ruijie Cloud app
■ Support local management with web
■ Support remote management with Ruijie Cloud platform
✎ Platform management features
■ Automatic RF adjustment via the platform
■ Unified configuration via the platform
■ Unified monitoring via the platform
