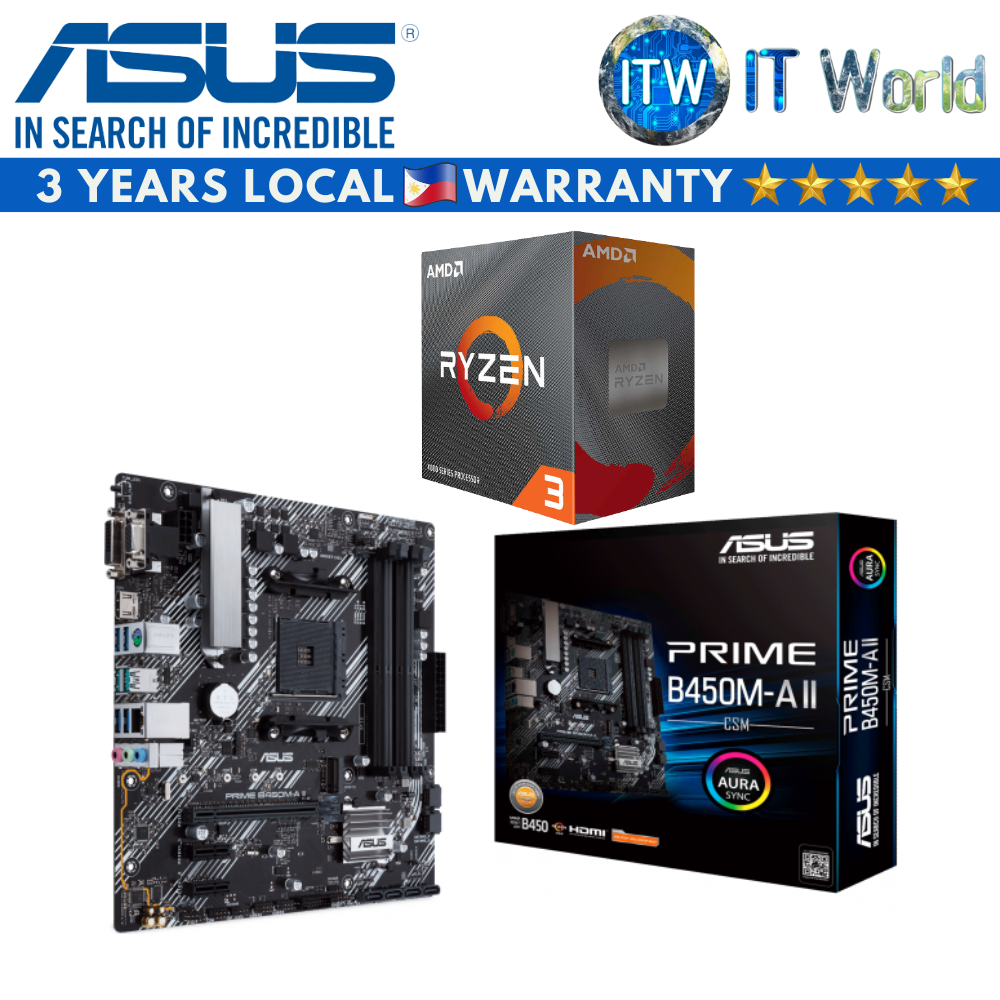

Product Name: Itw | AMD Ryzen 3 4100 Desktop Processor with Asus Prime B450M-A II/CSM Motherboard Bundle
*** AMD Ryzen 3 4100 4-Cores 8-Threads Desktop Processor ***
Specification
General
* Regional Availability: Global, China, NA, EMEA, APJ, LATAM
* Platform: Desktop
* Product Family: AMD Ryzen™ Processors
* Product Line: AMD Ryzen™ 3 Desktop Processors
* # of CPU Cores: 4
* # of Threads: 8
* Max. Boost Clock: Up to 4.0GHz
* Base Clock: 3.8GHz
* L1 Cache: 256KB
* L2 Cache: 2MB
* L3 Cache: 4MB
* Default TDP: 65W
* Processor Technology for CPU Cores: TSMC 7nm FinFET
* Unlocked for Overclocking: Yes
* CPU Socket: AM4
* Socket Count: 1P
* Thermal Solution (PIB): AMD Wraith Stealth
* Max. Operating Temperature (Tjmax): 95°C
* Launch Date: 4/4/2022
* OS Support
- Windows 11 - 64-Bit Edition
- Windows 10 - 64-Bit Edition
- RHEL x86 64-Bit
- Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
* PCI Express® Version: PCIe 3.0
* System Memory Type: DDR4
* Memory Channels: 2
* System Memory Specification: Up to 3200MT/s
* Max Memory Speed
- 2x1R DDR4-3200
- 2x2R DDR4-3200
- 4x1R DDR4-2933
- 4x2R DDR4-2667
Product IDs
* Product ID Boxed: 100-100000510BOX
* Product ID Tray: 100-000000510
Key Features
* Supported Technologies
- AMD StoreMI Technology
- AMD "Zen 2" Core Architecture
- AMD Ryzen™ VR-Ready Premium
*** ASUS Prime B450M-A II/CSM microATX AM4 DDR4 Motherboard ***
Specification
CPU
- AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
Chipset
- AMD B450
Memory
- 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
> 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
> Dual Channel Memory Architecture
> ECC Memory (ECC mode) support varies by CPU.
* The maximum memory frequency supported varies by processor.
Graphic
- Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
> 1 x D-Sub
> 1 x DVI-D
> 1 x HDMI™ port
*Graphics specifications may vary between CPU types.
Expansion Slots
- 3rd/2nd/1st Gen AMD Ryzen™ Processors
> 1 x PCIe 3.0 x16 (x16 mode)
- 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
> 1 x PCIe 3.0 x16 (x8 mode)
- AMD Athlon™ with Radeon™ Vega Graphics Processors
> 1 x PCIe 3.0 x16 (x4 mode)
- AMD B450 chipset
> 2 x PCIe 2.0 x1
Storage
- Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
- 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- Athlon™ with Radeon™ Vega Graphics Processors
> 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
- 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
> 2 x SATA 6Gb/s port(s),
> Support Raid 0, 1, 10
- AMD B450 chipset
> 4 x SATA 6Gb/s port(s),
> Support Raid 0, 1, 10
LAN
- Realtek® RTL8111H
- ASUS LANGuard
Audio
- Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *
> Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- Audio Feature
> LED-illuminated design
> Audio Shielding
> Dedicated audio PCB layers
> Premium audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
- Rear USB Port (Total 6)
> 2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)
> 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
- Front USB Port (Total 6)
> 2 x USB 3.2 Gen 1 port(s)
> 4 x USB 2.0 port(s)
Back I/O Ports
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DVI-D
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
- 4 x USB 3.2 Gen 1 (blue) Type-A
- 3 x Audio jack(s)
- 1 x BIOS FlashBack™ Button(s)
Form Factor
- mATX / 9.6inch x 9.5inch (24.4cm x 24cm)
