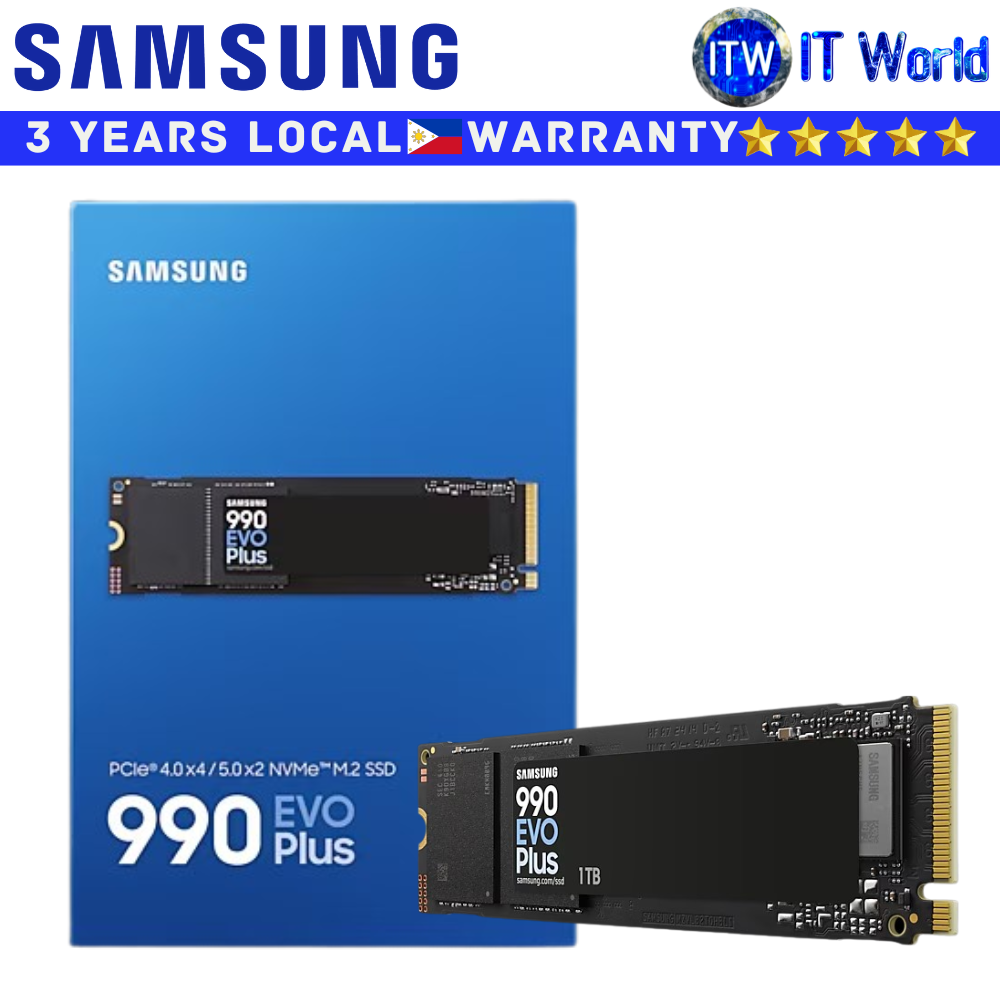

Product Name: Itw | Samsung 1TB M 2 NVMe M.2 NVMe SSD 990 EVO Plus M.2 2280 PC (MZ-V9S1T0BW)
990 EVO Plus, PCIe 4.0/5.0, NVMe M.2 SSD
> Supported by the latest PCIe® 4.0 x4 and PCIe® 5.0 x2 interfaces, offering flexibility for current and future computing.
> Sequential read speeds of up to 7,250MB/s to meet the demands of business and creative work.
> Available in different capacities up to 4TB.
> Power efficient design puts less burden on your PC's battery life.
> Smart thermal solution provides consistent and reliable performance.
Specification
General
* Application: Client PCs
* Capacity: 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
* Form Factor: M.2 (2280)
* Interface: PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0
* Dimension (WxHxD): Max 80.15 x Max 22.15 x Max 2.38 mm
* Weight: Max 9.0g Weight
* Storage Memory: Samsung V-NAND TLC
* Controller: Samsung in-house Controller
* Cache Memory: HMB (Host Memory Buffer)
Special Feature
* TRIM Support: Supported
* S.M.A.R.T Support: Supported
* GC (Garbage Collection): Auto Garbage Collection Algorithm
* Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
* WWN Support: Not supported
* Device Sleep Mode Support: Yes
Performance
* Sequential Read: Up to 7,150 MB/s * Performance may vary based on system hardware & configuration
* Sequential Write: Up to 6,300 MB/s * Performance may vary based on system hardware & configuration
* Random Read (4 KB, QD32): Up to 850,000 IOPS * Performance may vary based on system hardware & configuration
* Random Write (4KB, QD32): Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration
Environment
* Average Power Consumption (system level): Average: Read 4.3 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration
* Power consumption (Idle): Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration
* Power Consumption (Device Sleep): Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration
* Allowable Voltage: 3.3 V ± 5 % Allowable voltage
* Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
* Operating Temperature: 0 - 70 ℃ Operating Temperature
* Shock: 1,500 G & 0.5 ms (Half sine)
Software
* Management SW: Magician Software for SSD management
